Cluster Lid C

Remove ventilation mask, and remove screws with power tool.

Fig 1: Removing Ventilation Mask
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert a cloth-covered screwdriver, or thin spatula into dip between instrument panel, pull cluster lid C back to your side, and disengage metal clips below.
Disconnect connectors, and remove cluster lid C.
CAUTION: Cover surroundings with cloth to avoid scratches or damages.

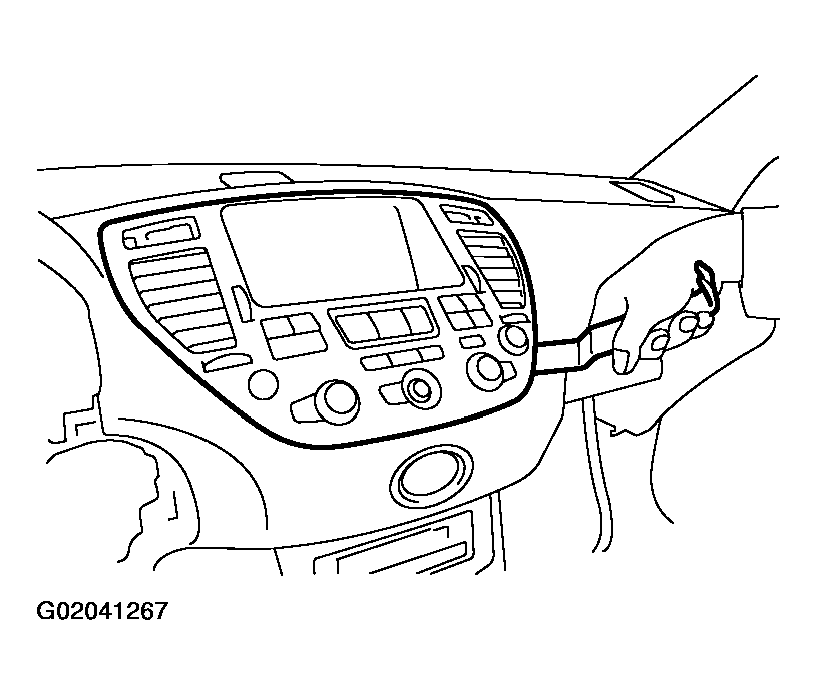

Fig 2: Inserting Cloth-Covered Screwdriver Into Dip Between Instrument Panel
Courtesy of NISSAN MOTOR CO., U.S.A.
