Cluster Lid A

  1. Remove screws with power tool.
  2. Pull cluster lid A back to your side, and disconnect metal clips.
    Fig 1: Disconnecting Cluster Lid A Metal Clips
    G02041262Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Make upper and lower side of cluster lid A narrower, and pull it back to your side.
  4. Remove it as covering steering wheel.

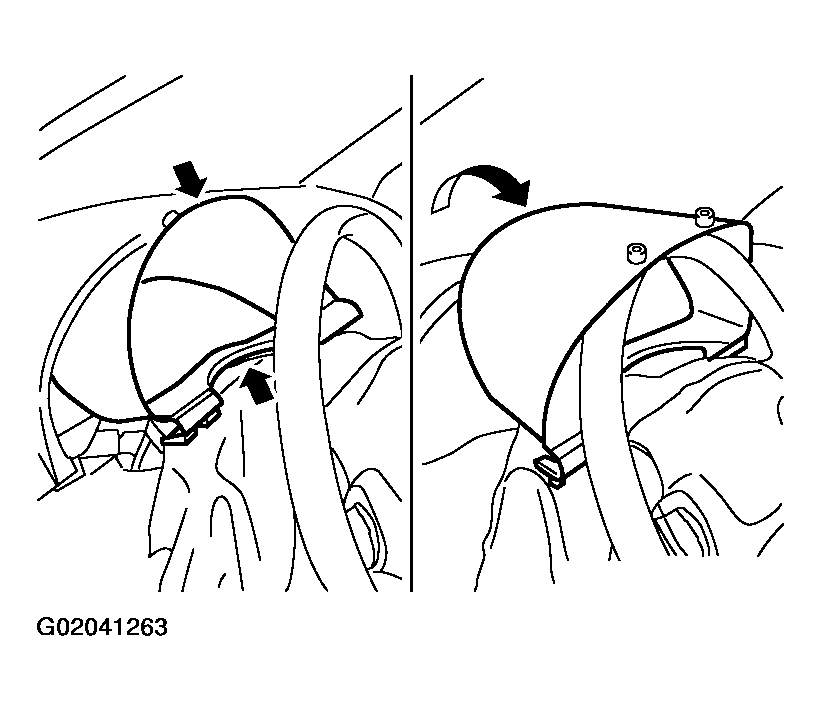

    Fig 2: Removing Cluster Lid A
    G02041263Courtesy of NISSAN MOTOR CO., U.S.A.
