Removal and Installation: Ashtray

  1. Remove screws with power tool, pull ashtray back to your side, and disconnect metal clips.
  2. Disconnect connectors, and remove ashtray.

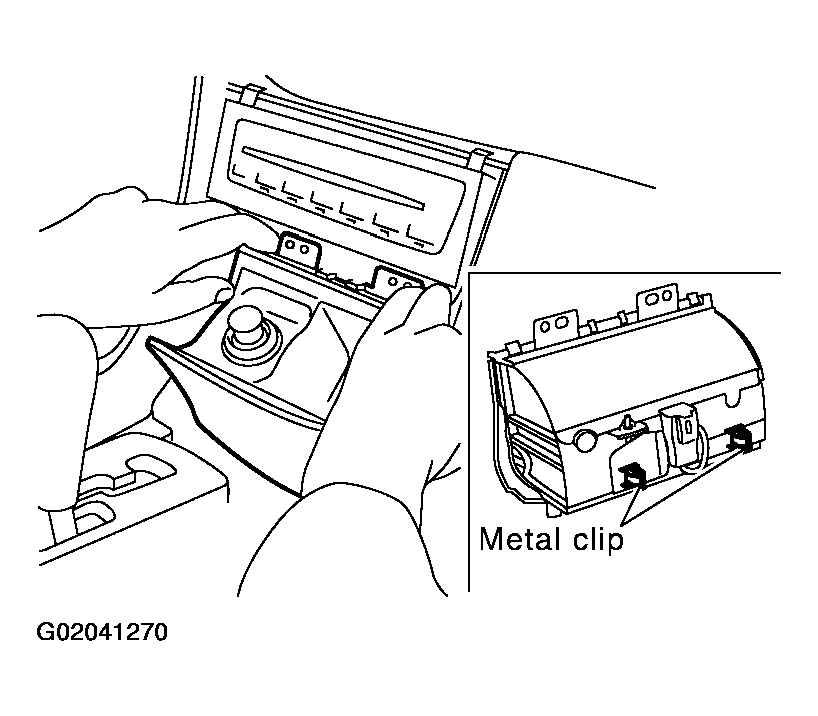

    Fig 1: Removing Ashtray
    G02041270Courtesy of NISSAN MOTOR CO., U.S.A.
