Parking License & Tail Lamps: Wiring Diagram

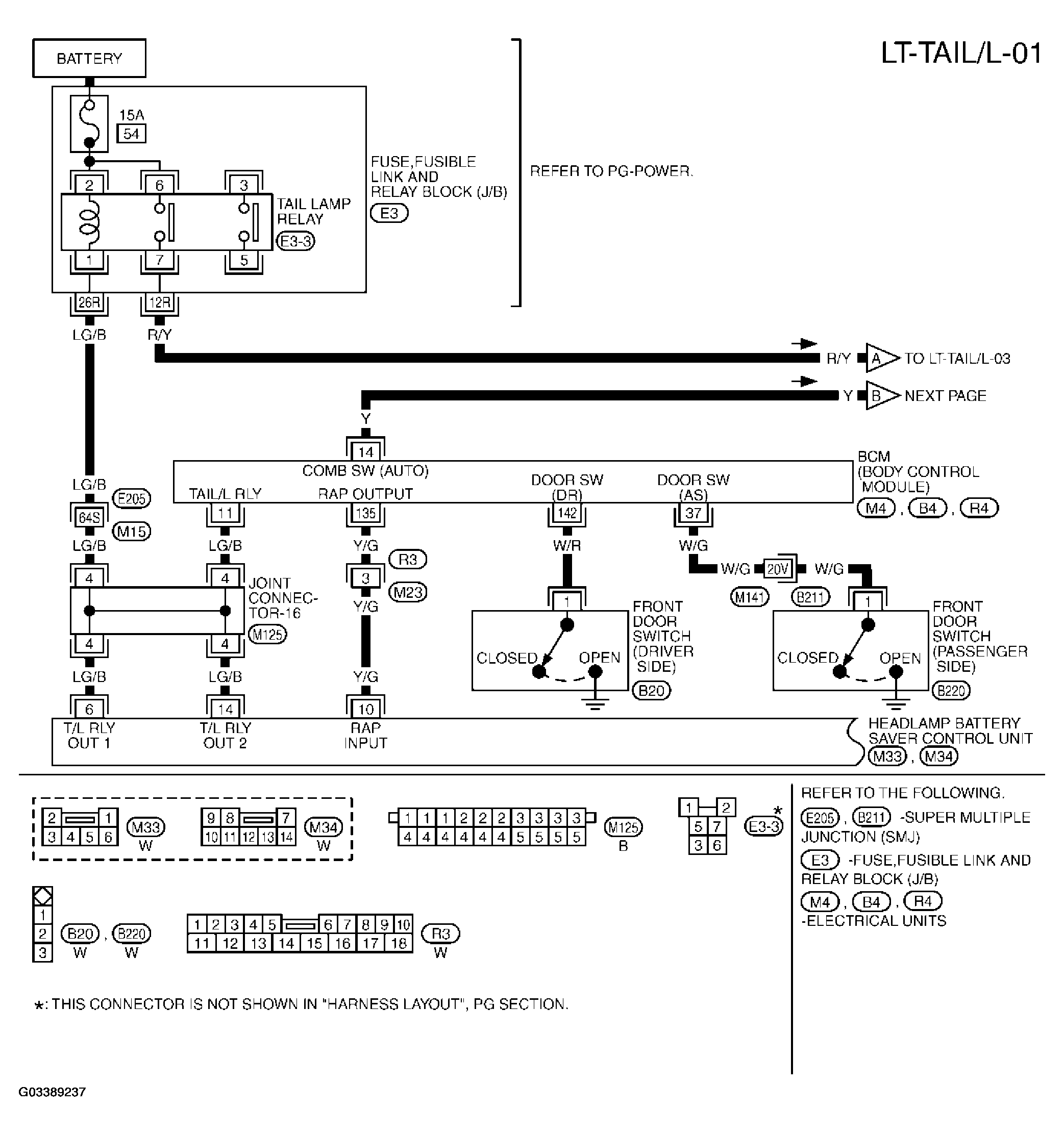

Fig 1: Wiring Diagram - Parking License & Tail Lamp - LT-TAIL/L-01 (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

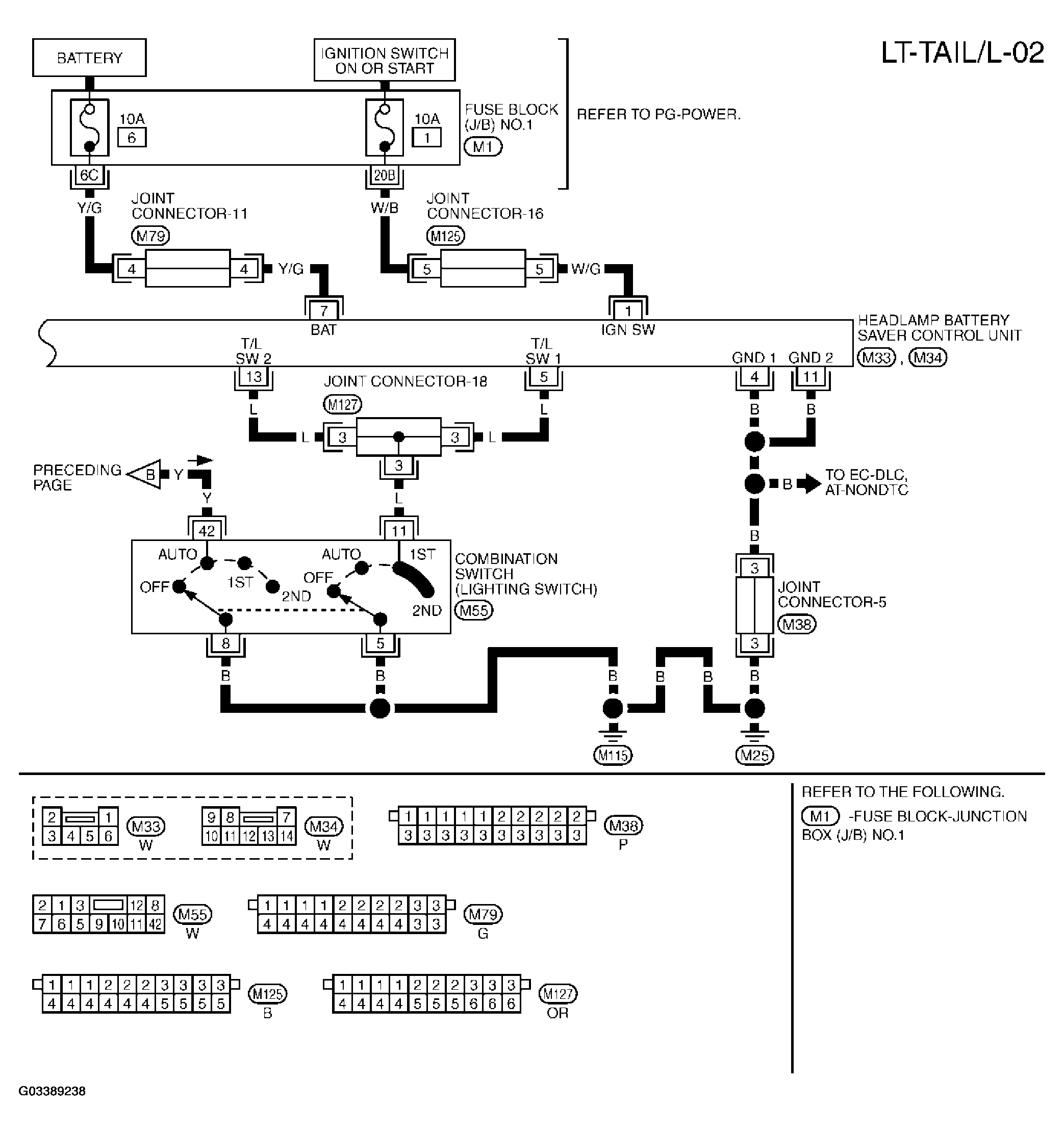

Fig 2: Wiring Diagram - Parking License & Tail Lamp - LT-TAIL/L-02 (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

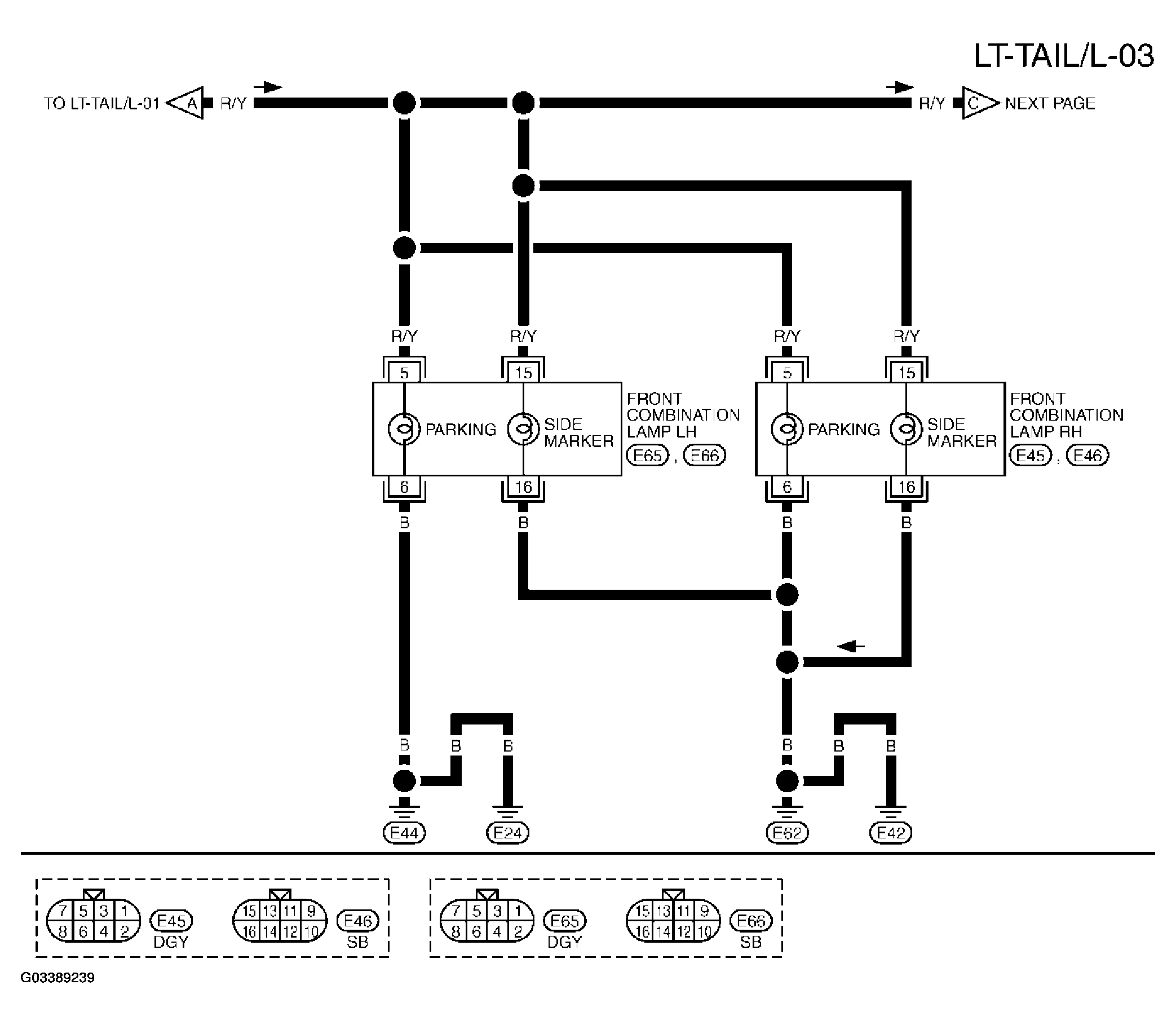

Fig 3: Wiring Diagram - Parking License & Tail Lamp - LT-TAIL/L-03 (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

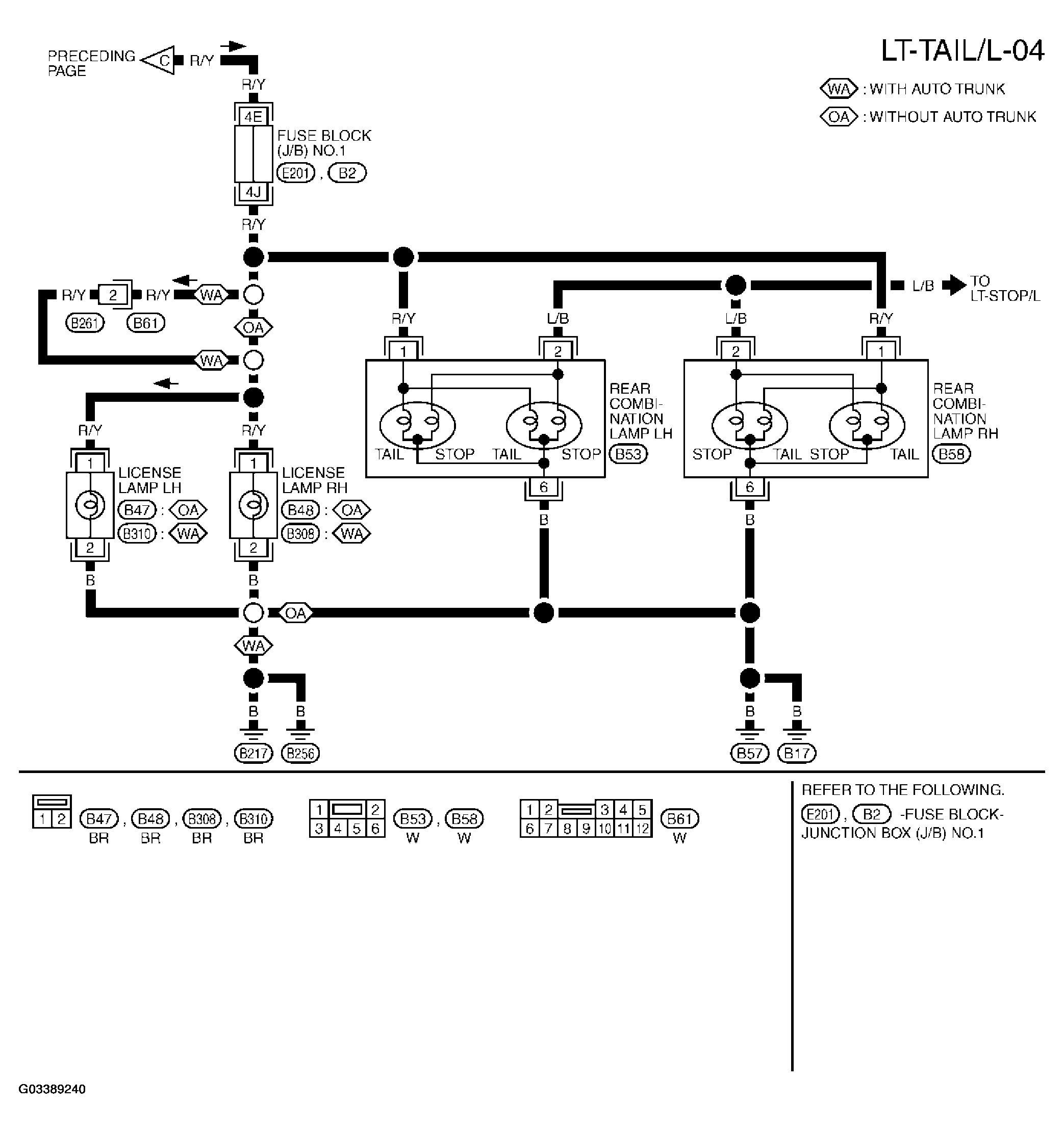

Fig 4: Wiring Diagram - Parking License & Tail Lamp - LT-TAIL/L-04 (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
