Rear Combination Lamp: Removal

  1. Open the trunk and remove the trunk side finisher. Refer to TRUNK ROOM TRIM & TRUNK LID FINISHER in EXTERIOR & INTERIOR article.
  2. Disconnect the rear combination lamp connector.
  3. Remove the rear combination lamp mounting nuts.
  4. Pull the rear combination lamp toward rear of the vehicle and remove from the vehicle.
  5. Remove the seal packing from the vehicle.

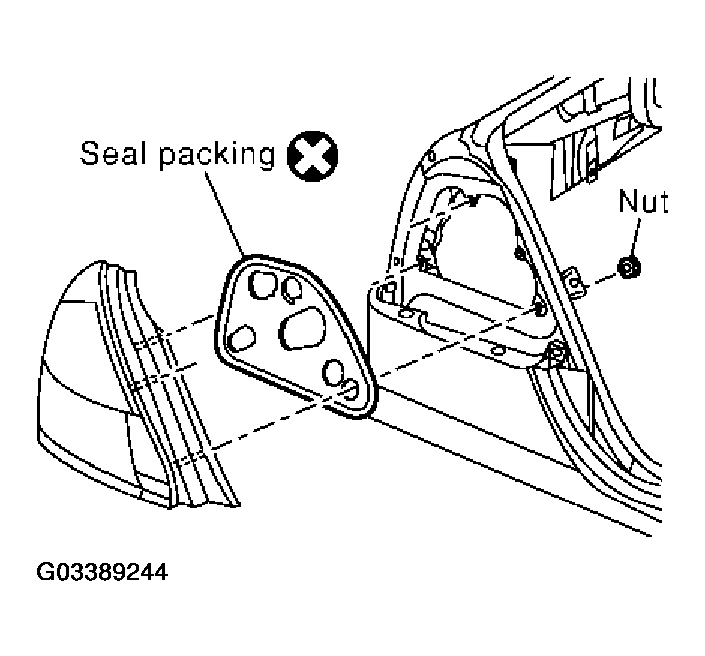

    Fig 1: Removing Seal Packing From Vehicle
    G03389244Courtesy of NISSAN MOTOR CO., U.S.A.
