License Plate Lamp: Removal

  1. Remove the license plate finisher. Refer to TRUNK ROOM TRIM & TRUNK LID FINISHER in EXTERIOR & INTERIOR article.
  2. Disconnect the license plate lamp connector.
  3. Remove the license plate lamp mounting screw and remove the license plate lamp from the vehicle.

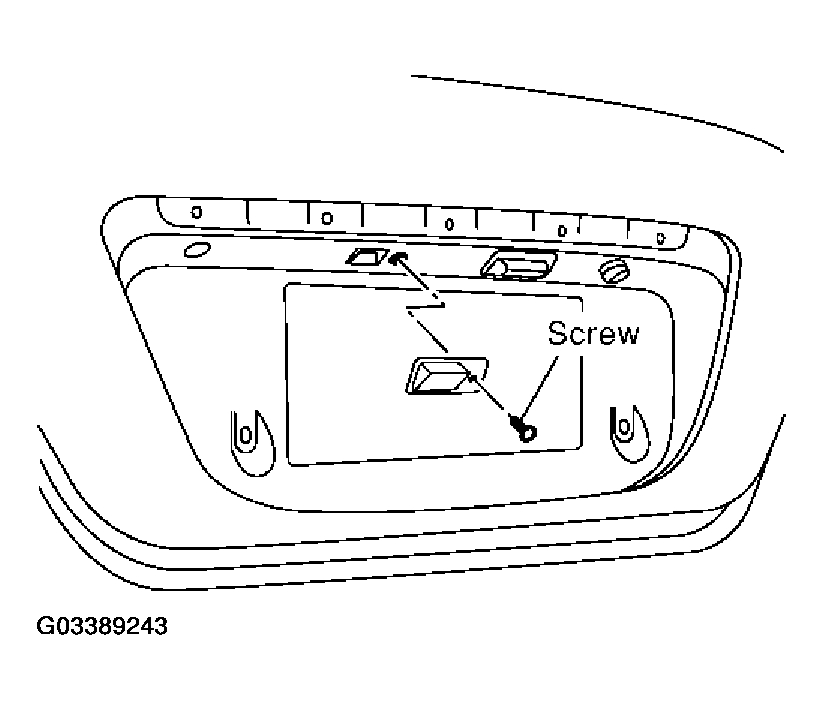

    Fig 1: Removing License Plate Lamp From Vehicle
    G03389243Courtesy of NISSAN MOTOR CO., U.S.A.
