Rear Combination Lamp

  1. Open the trunk and remove the trunk side finisher. Refer to TRUNK ROOM TRIM & TRUNK LID FINISHER in EXTERIOR & INTERIOR article.
  2. Turn the bulb socket counterclockwise and unlock it.
  3. Remove the bulb.

    Stop/Tail lamp (outer inner side) : 12V 21/5W

    Rear turn signal lamp : 12V 21W

    Buck-up lamp :12V 18W

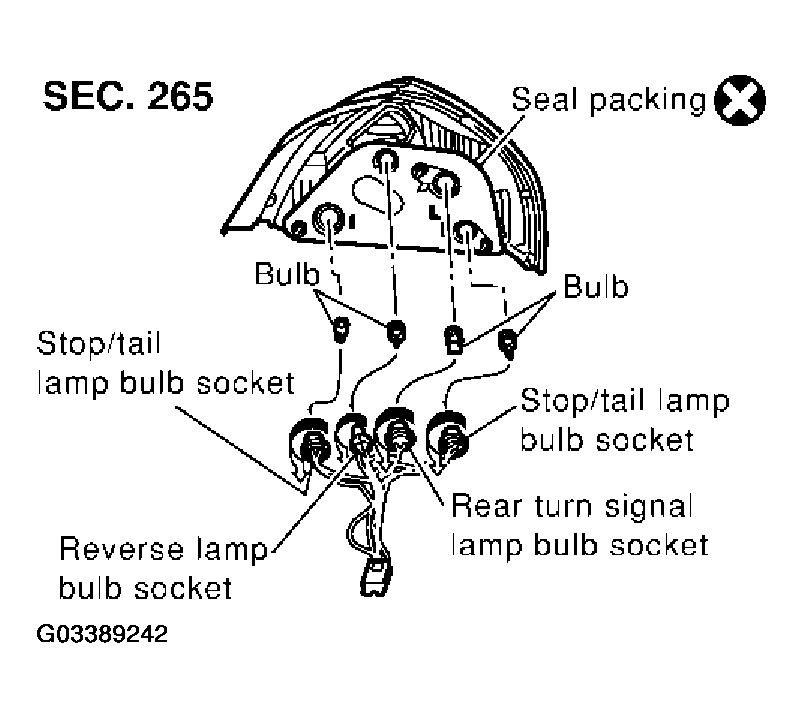

    Fig 1: Removing Bulb From Bulb Socket (Rear Combination Lamp)
    G03389242Courtesy of NISSAN MOTOR CO., U.S.A.
