Rear Ventilator Ducts

  1. Remove console box. Refer to "CONSOLE BOX ASSEMBLY ".
  2. Remove rear ventilator duct No. 2.
  3. Remove instrument panel. Refer to Instrument Panel article.

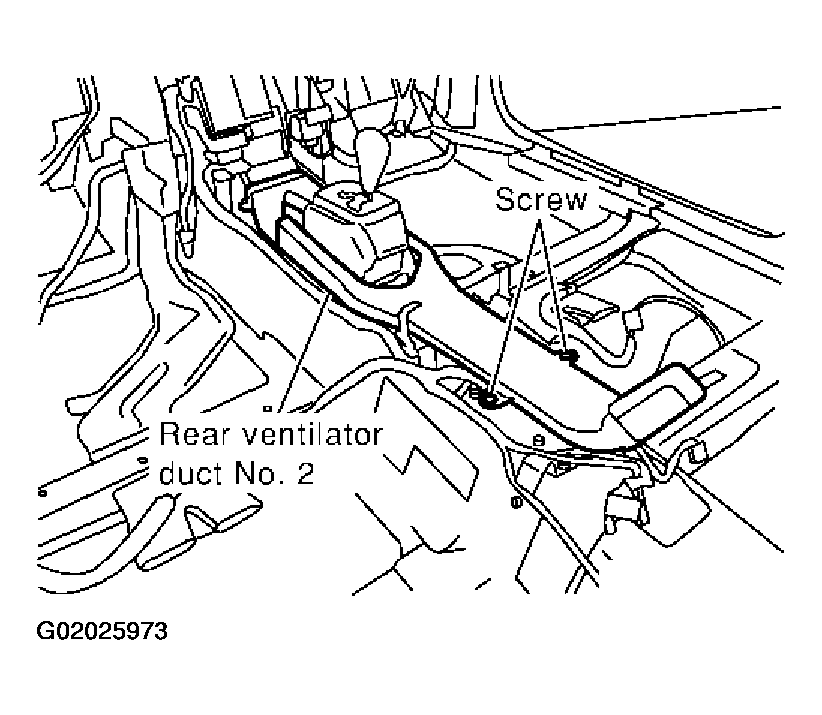

    Fig 1: Removing Rear Ventilator Ducts No. 2
    G02025973Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove rear ventilator duct No. 1.

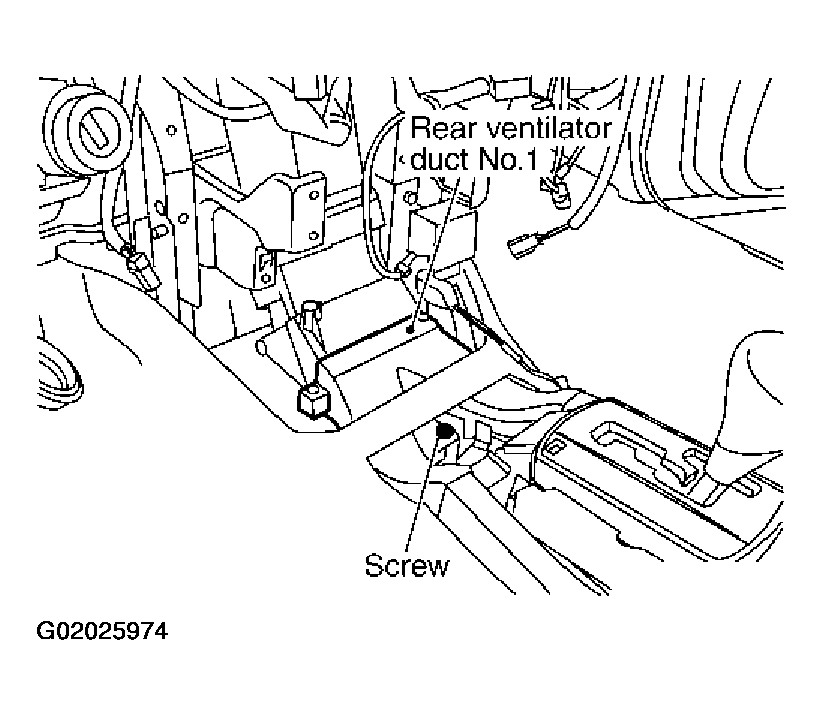

    Fig 2: Removing Rear Ventilator Ducts No. 1
    G02025974Courtesy of NISSAN MOTOR CO., U.S.A.
