Switch Circuit Inspection

Using circuit tester, check continuity between the lighting and turn signal switch connector terminals in each operation status of the switch.

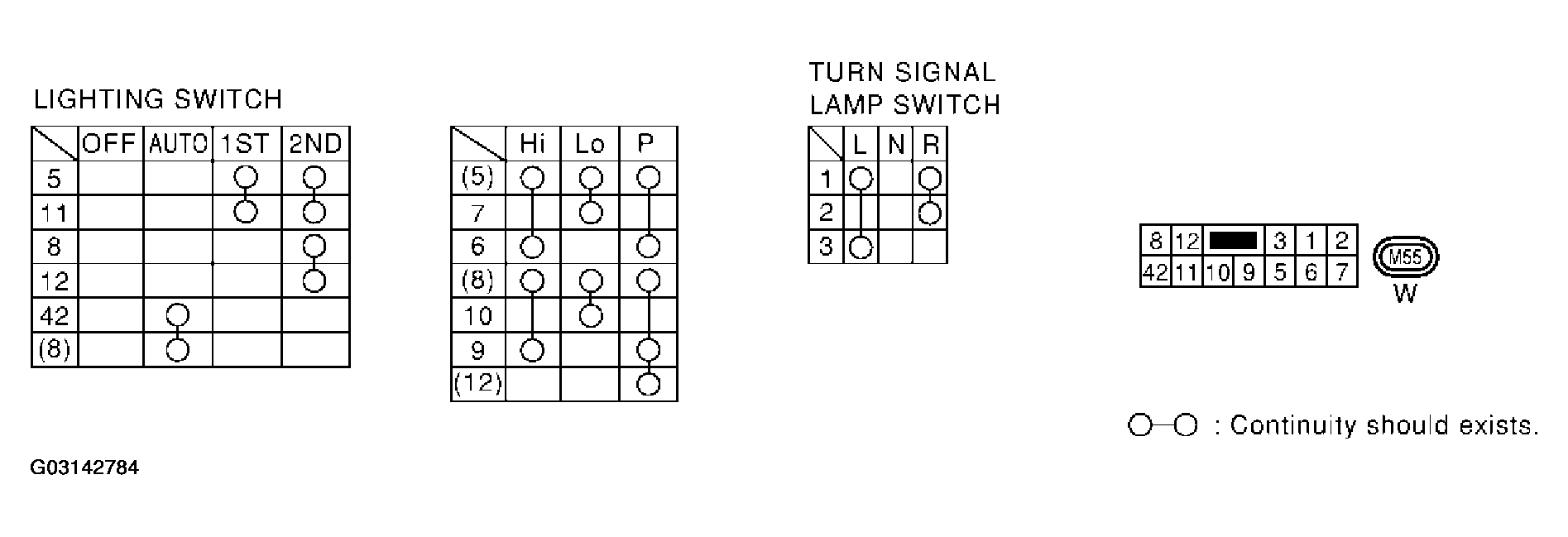

Fig 1: Checking Continuity Between Lighting And Turn Signal Switch Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Hi:"HIGH BEAM"position,Lo:"LOW BEAM"position,P:"FLASH TO PASS"position
