Wiring Diagram - CHIME -

NOTE: For additional information, see SYSTEM WIRING DIAGRAMS article.

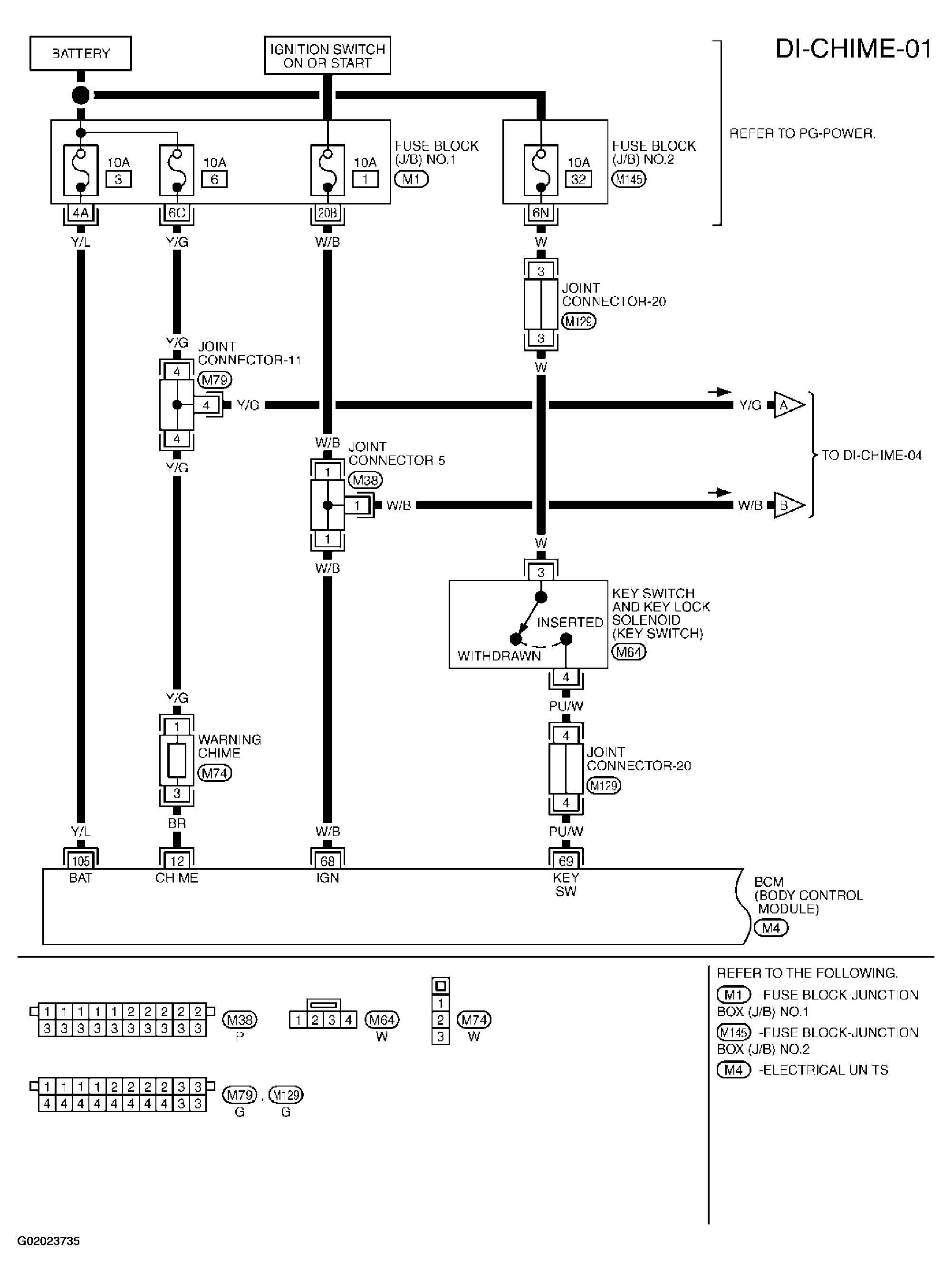

Fig 1: Wiring Diagram - Seat Belt Warning Chime (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

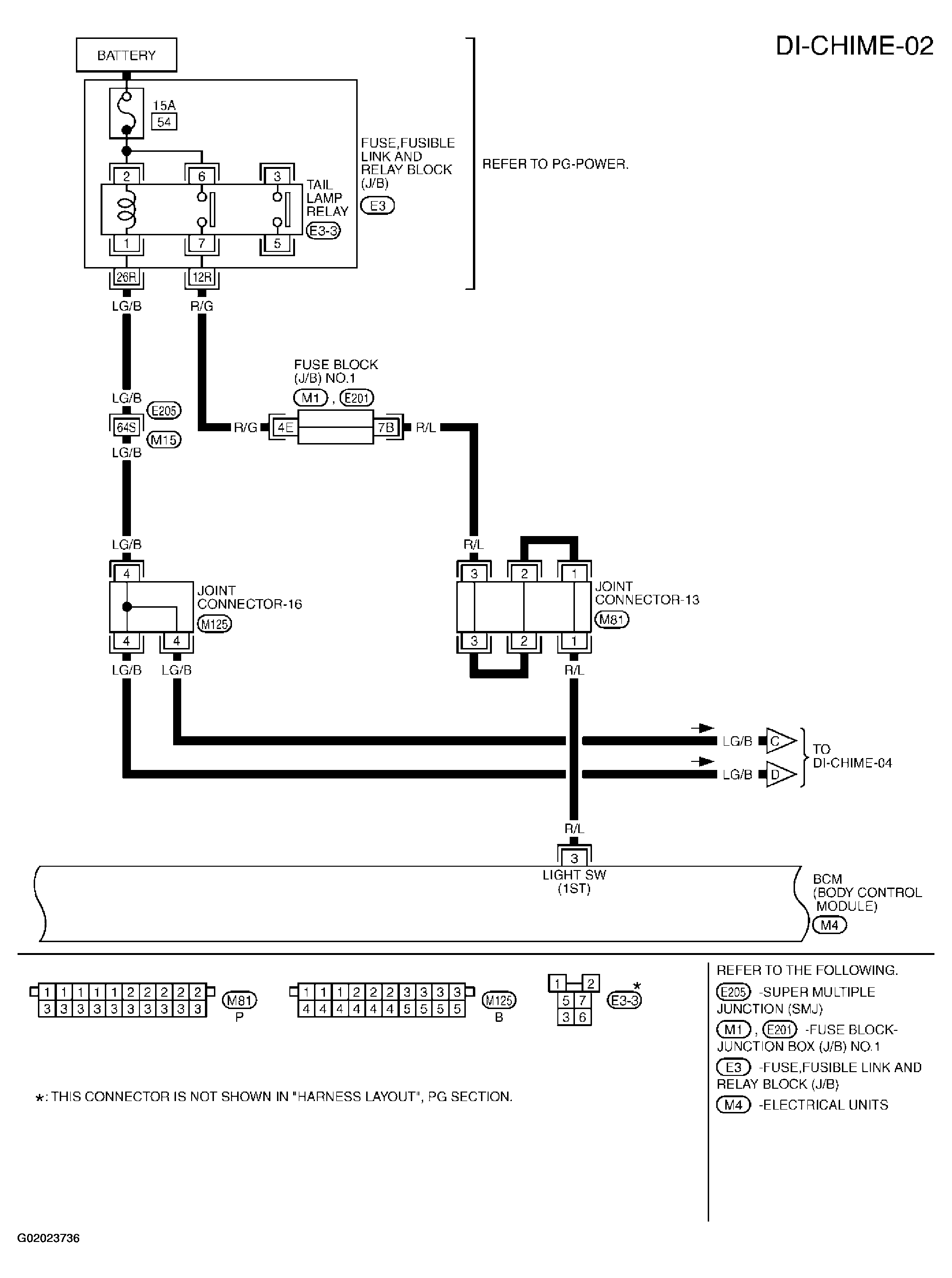

Fig 2: Wiring Diagram - Seat Belt Warning Chime (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

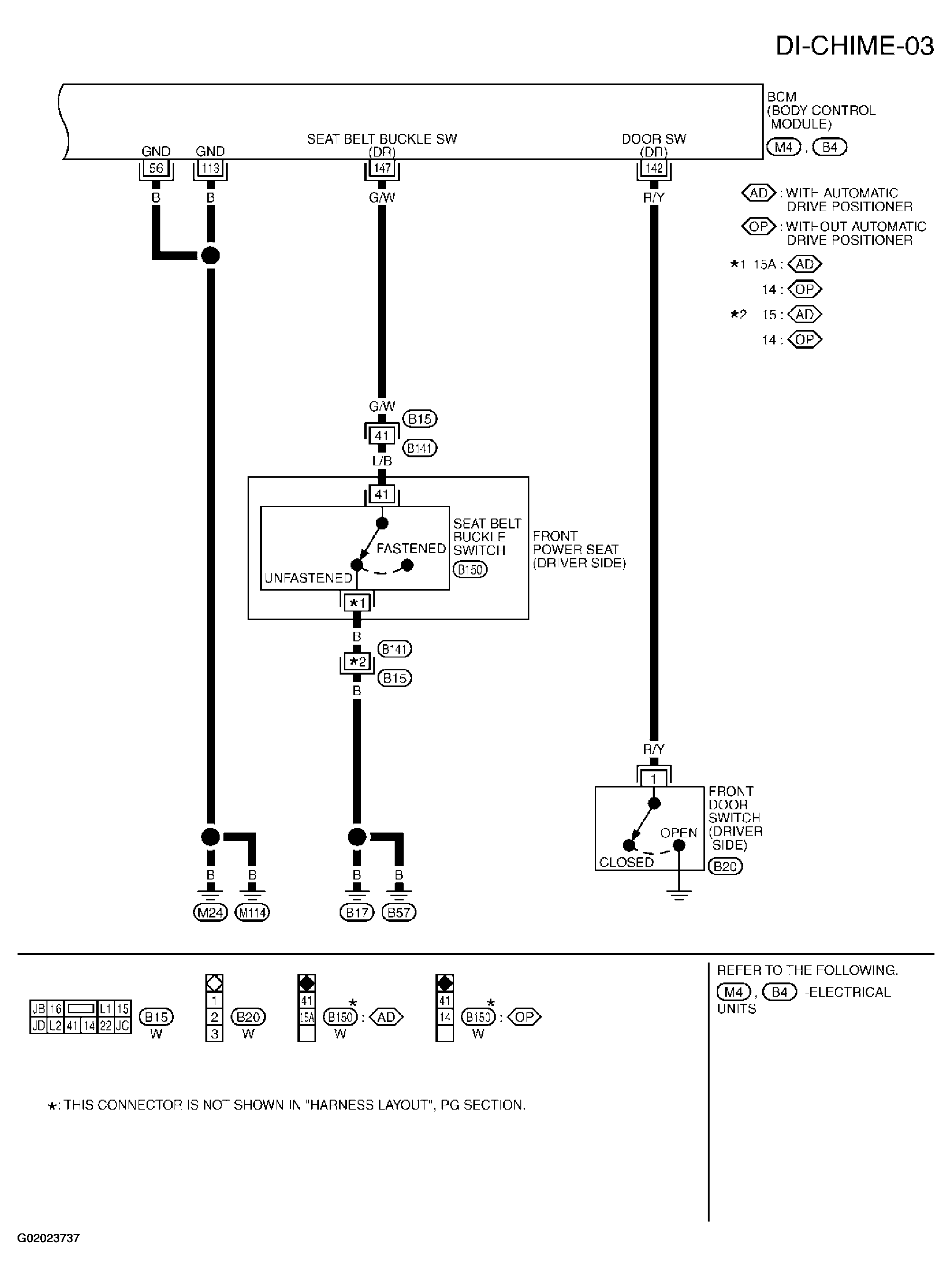

Fig 3: Wiring Diagram - Seat Belt Warning Chime (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

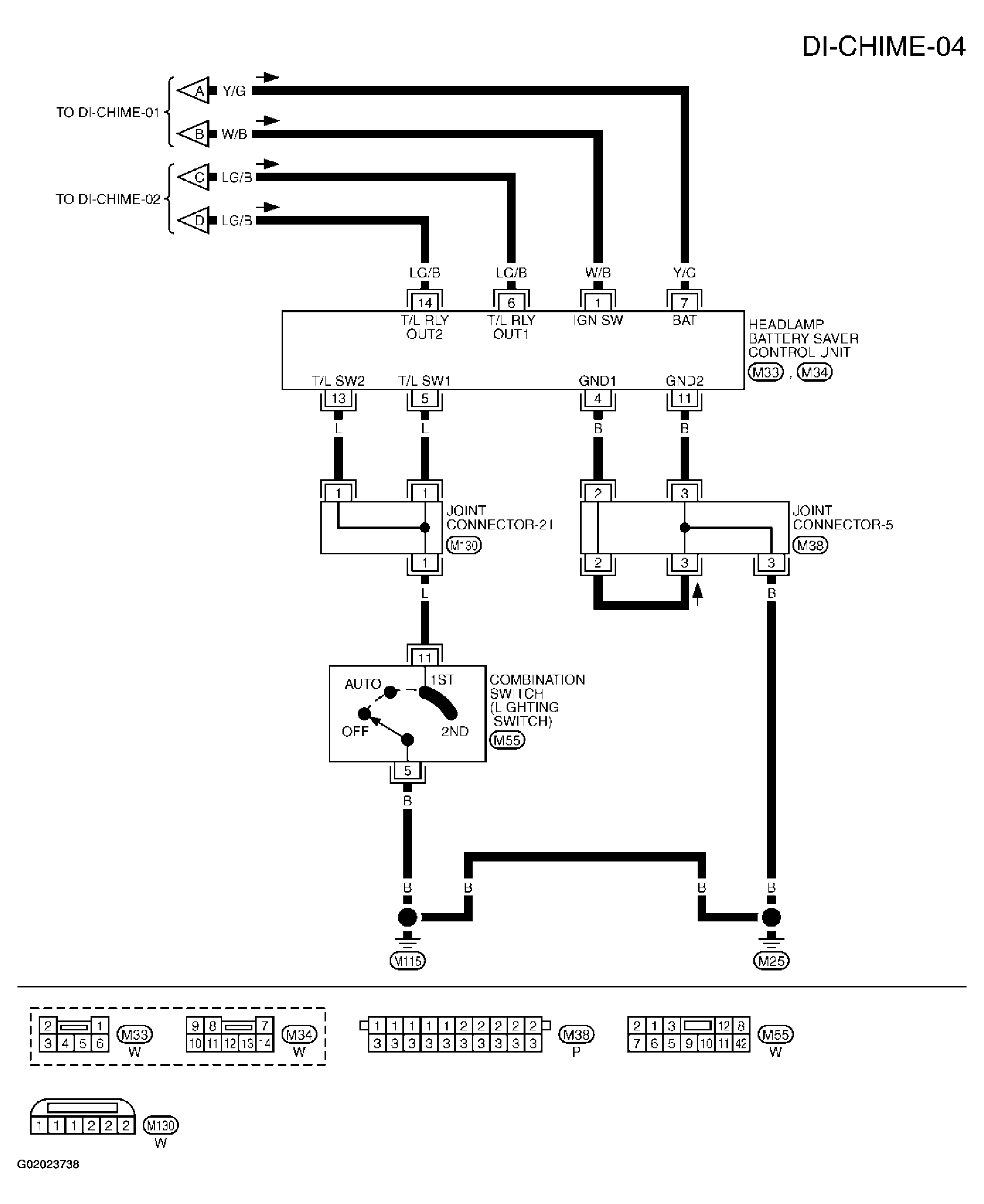

Fig 4: Wiring Diagram - Seat Belt Warning Chime (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
