Switch Monitor: Notes

Perform the diagnosis on the switch system to each control unit.

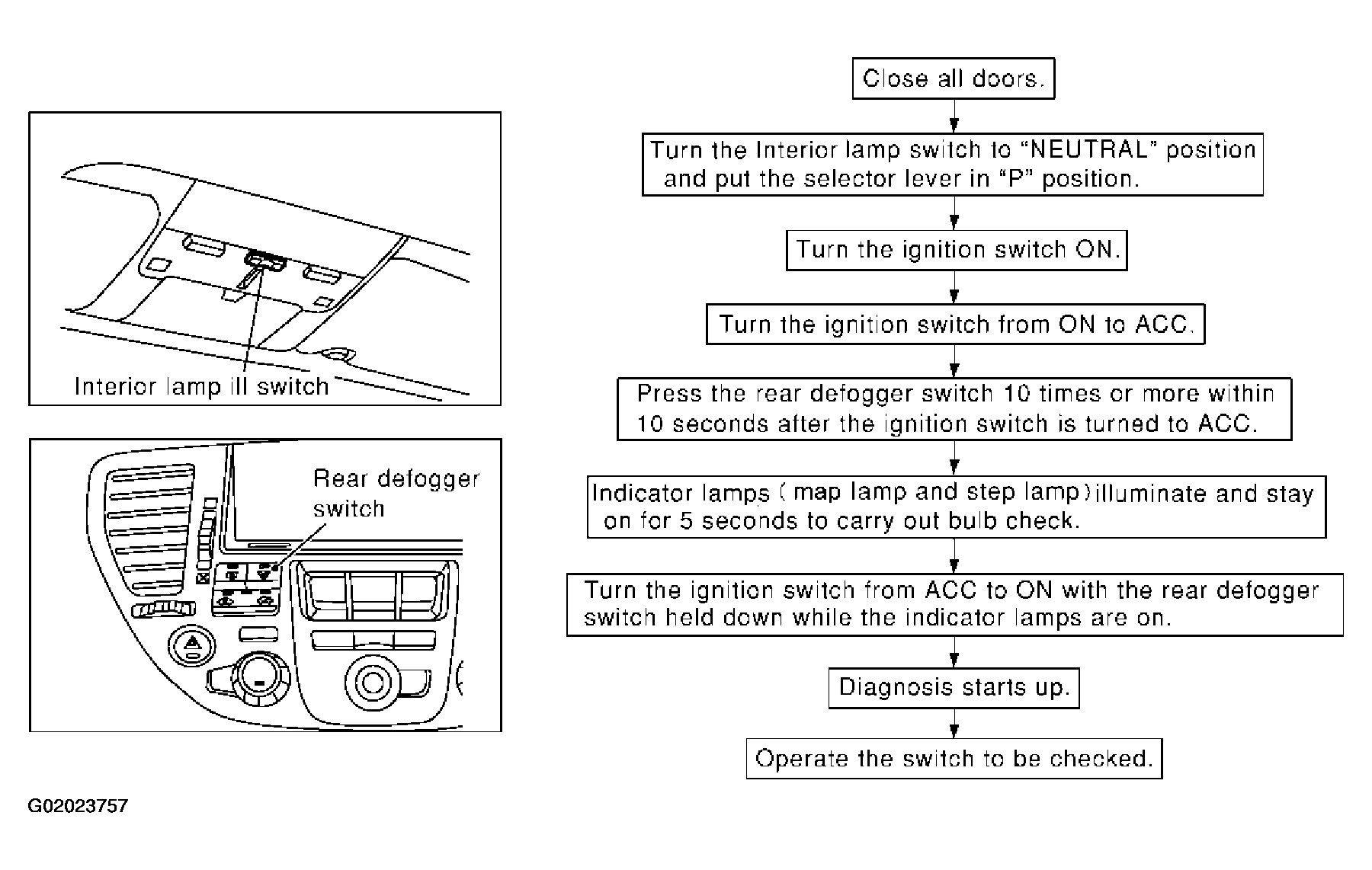

Fig 1: Performing Switch Monitor Diagnosis
Courtesy of NISSAN MOTOR CO., U.S.A.
