Parking License & Tail Lamps: Wiring Diagram

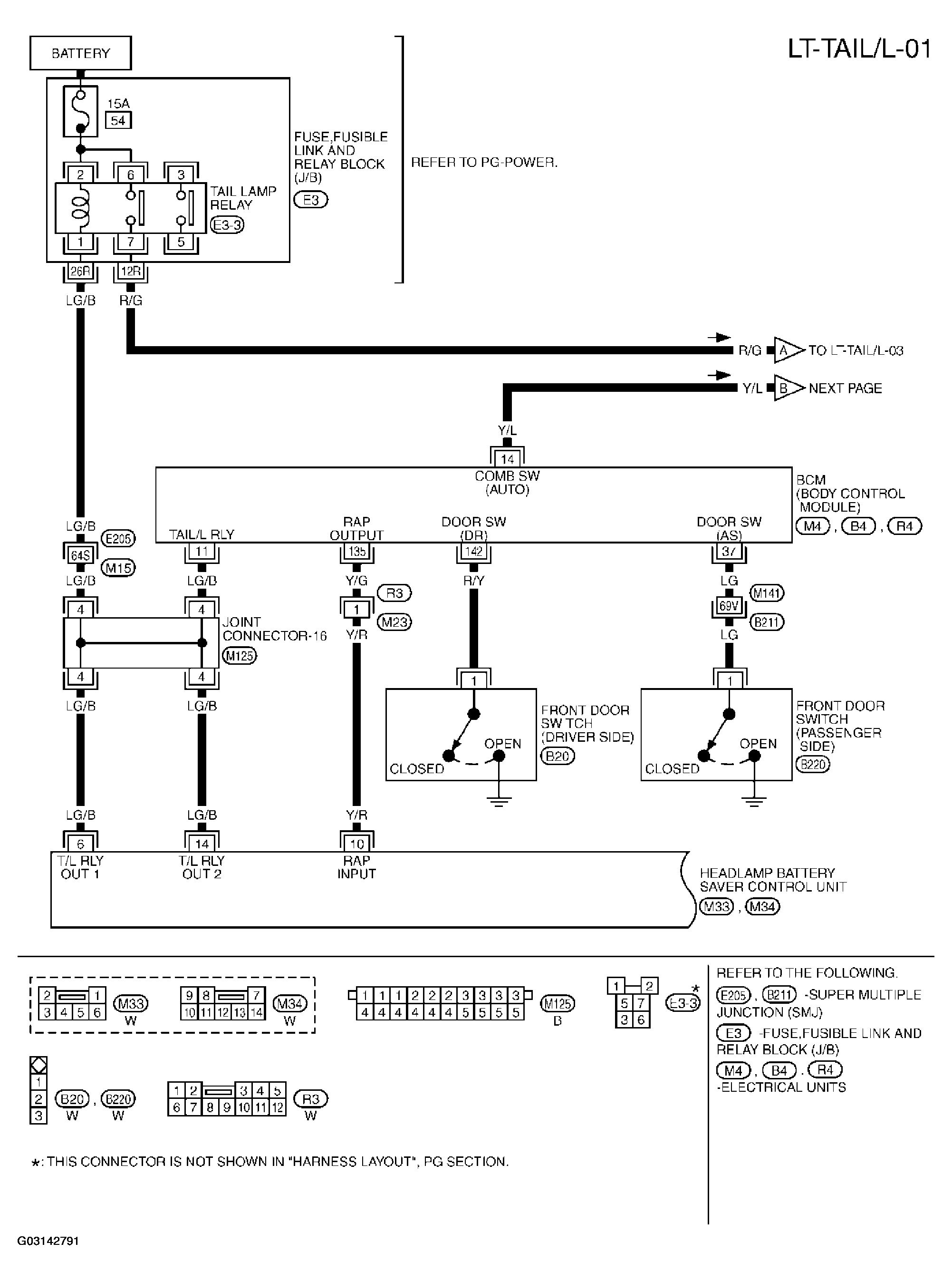

Fig 1: Parking, License Plate And Tail Lamps Wiring Diagram - LT-TAIL/L-01 (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

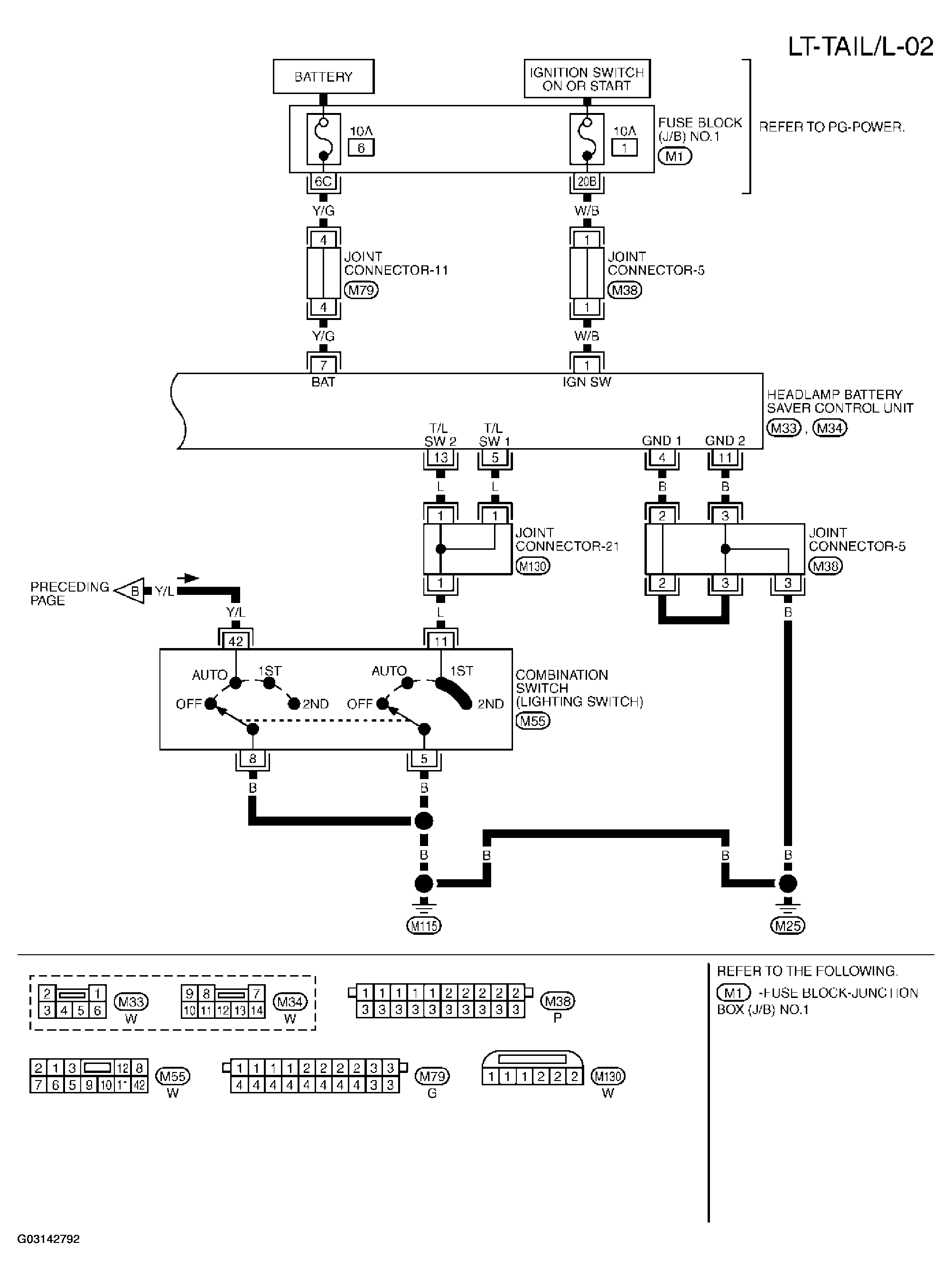

Fig 2: Parking, License Plate And Tail Lamps Wiring Diagram - LT-TAIL/L-02 (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

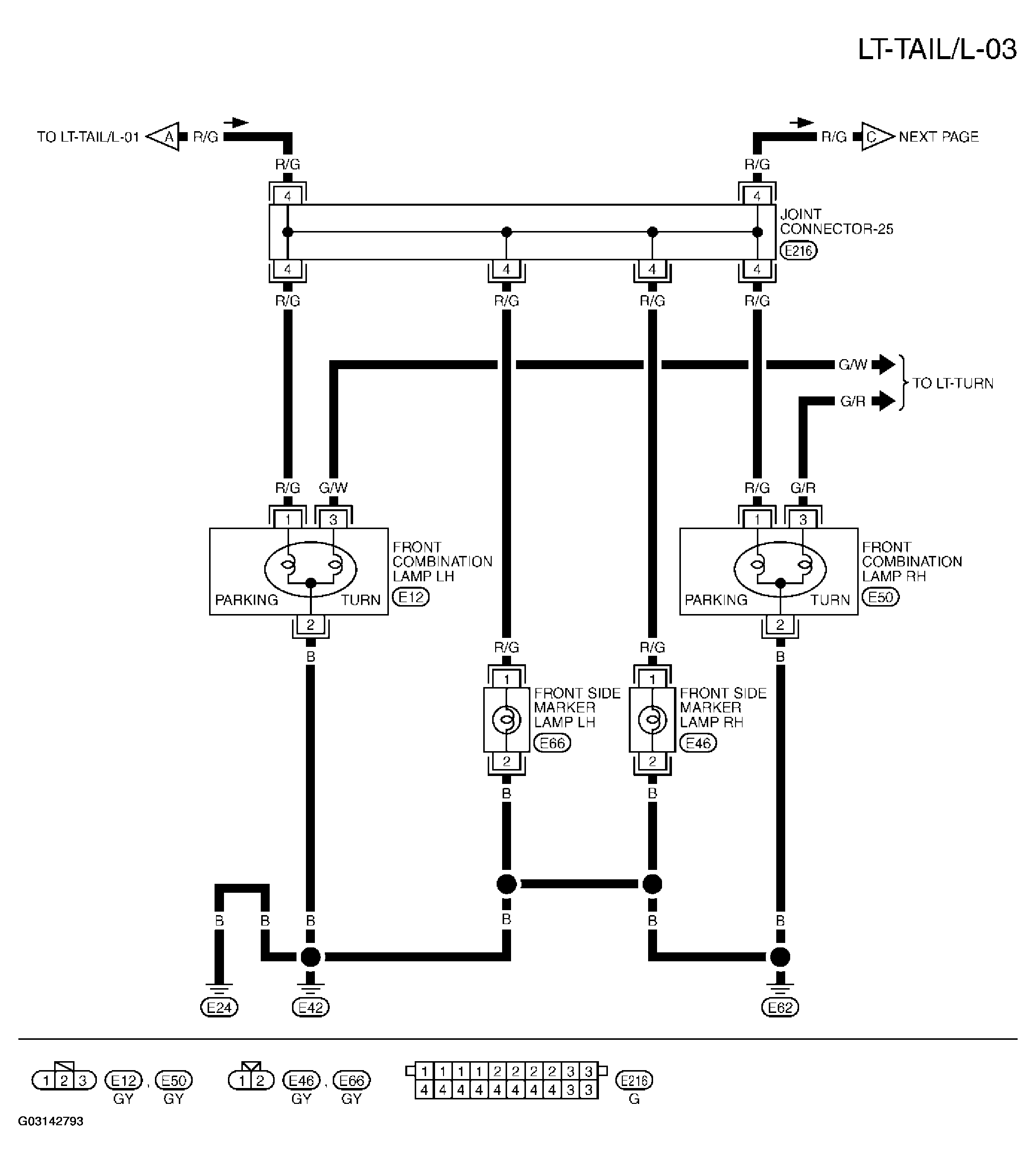

Fig 3: Parking, License Plate And Tail Lamps Wiring Diagram - LT-TAIL/L-03 (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

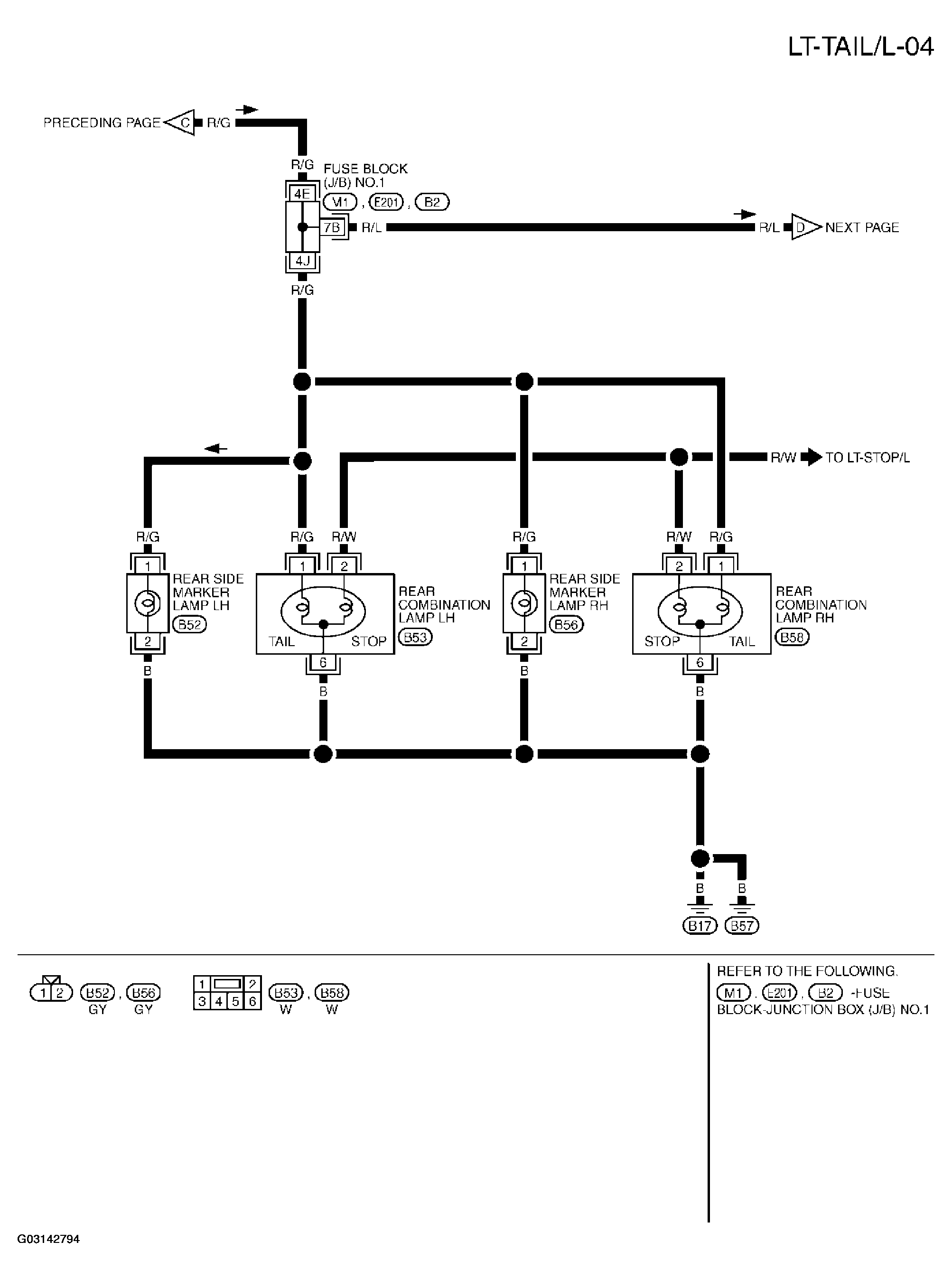

Fig 4: Parking, License Plate And Tail Lamps Wiring Diagram - LT-TAIL/L-04 (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

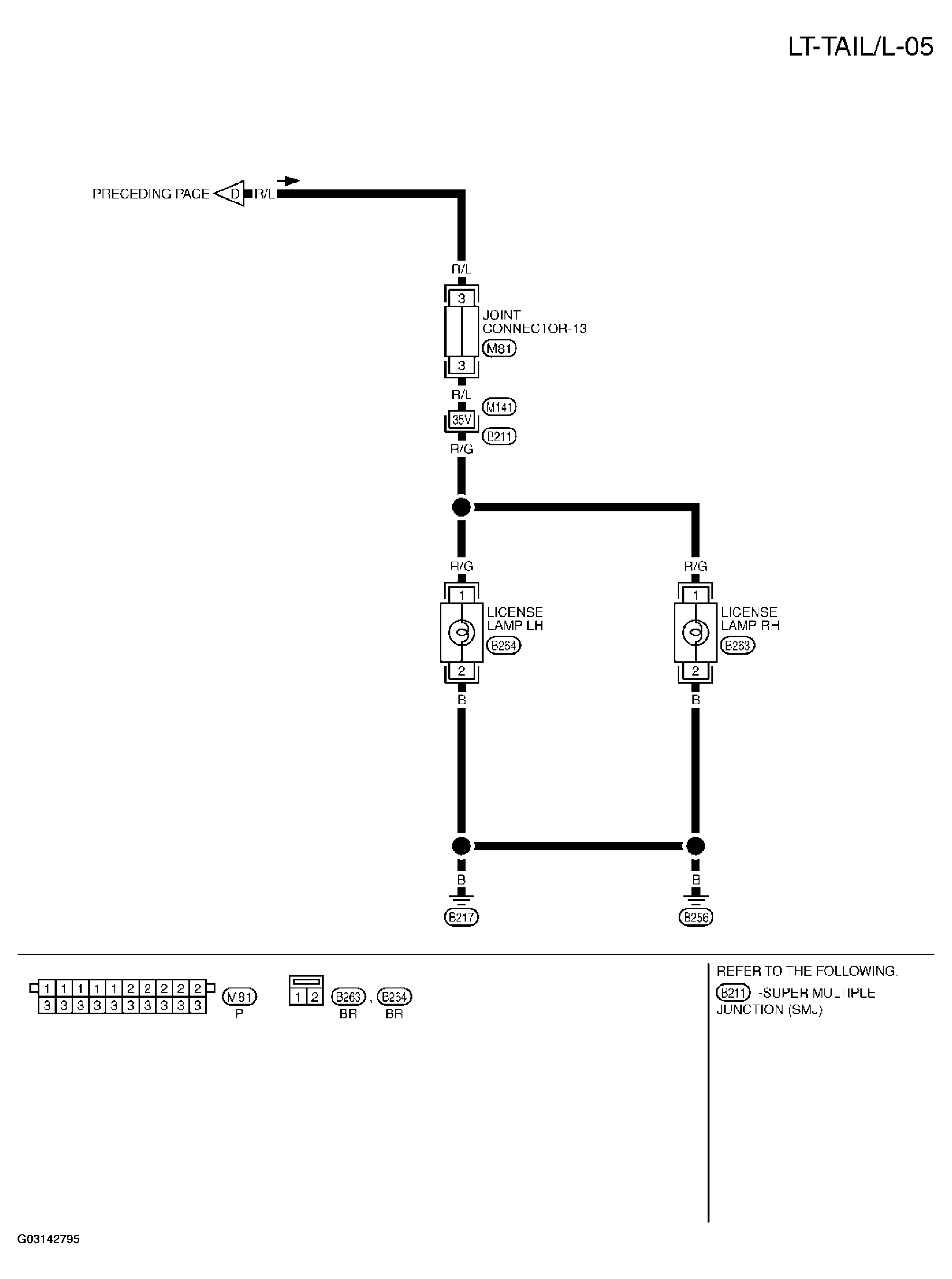

Fig 5: Parking, License Plate And Tail Lamps Wiring Diagram - LT-TAIL/L-05 (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
