Rear Combination Lamp

  1. Remove the trunk side finisher. Refer to TRUNK ROOM TRIM & TRUNK LID FINISHER in EXTERIOR & INTERIOR article.
  2. Turn the bulb socket counterclockwise and unlock it.
  3. Remove the bulb.
    1. Stop/Tail lamp (outer.inner side): 12V 21/5W
    2. Rear turn signal lamp: 12V 21W (amber)
    3. Buck-up lamp: 12V 18W

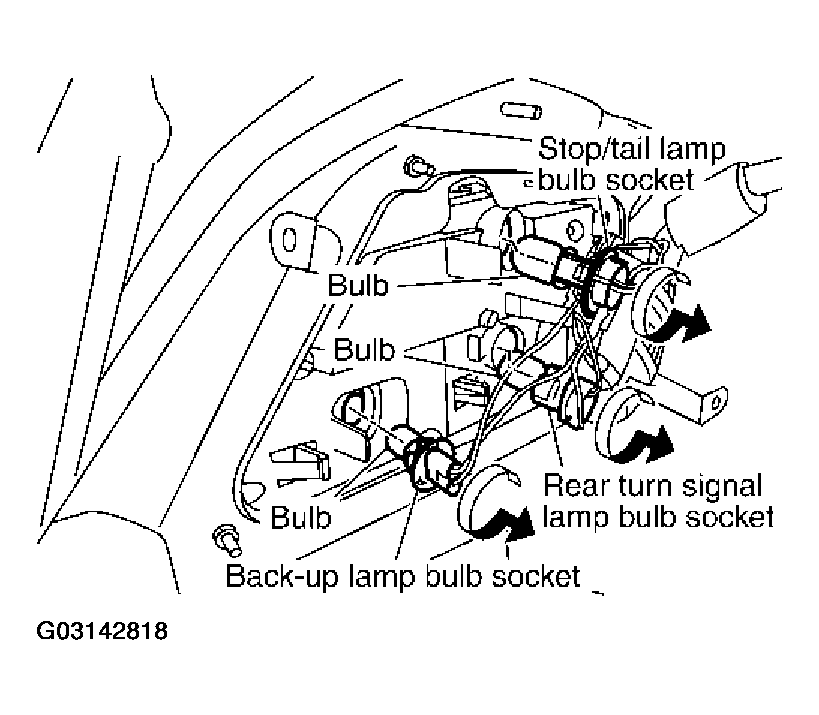

Fig 1: Removing Bulb
G03142818Courtesy of NISSAN MOTOR CO., U.S.A.
