Clip And Fastener: Description

Clips and fasteners in this article correspond to the following numbers and symbols in Fig 1 and Fig 2 .
Replace any clips and/or fasteners which are damaged during removal or installation.

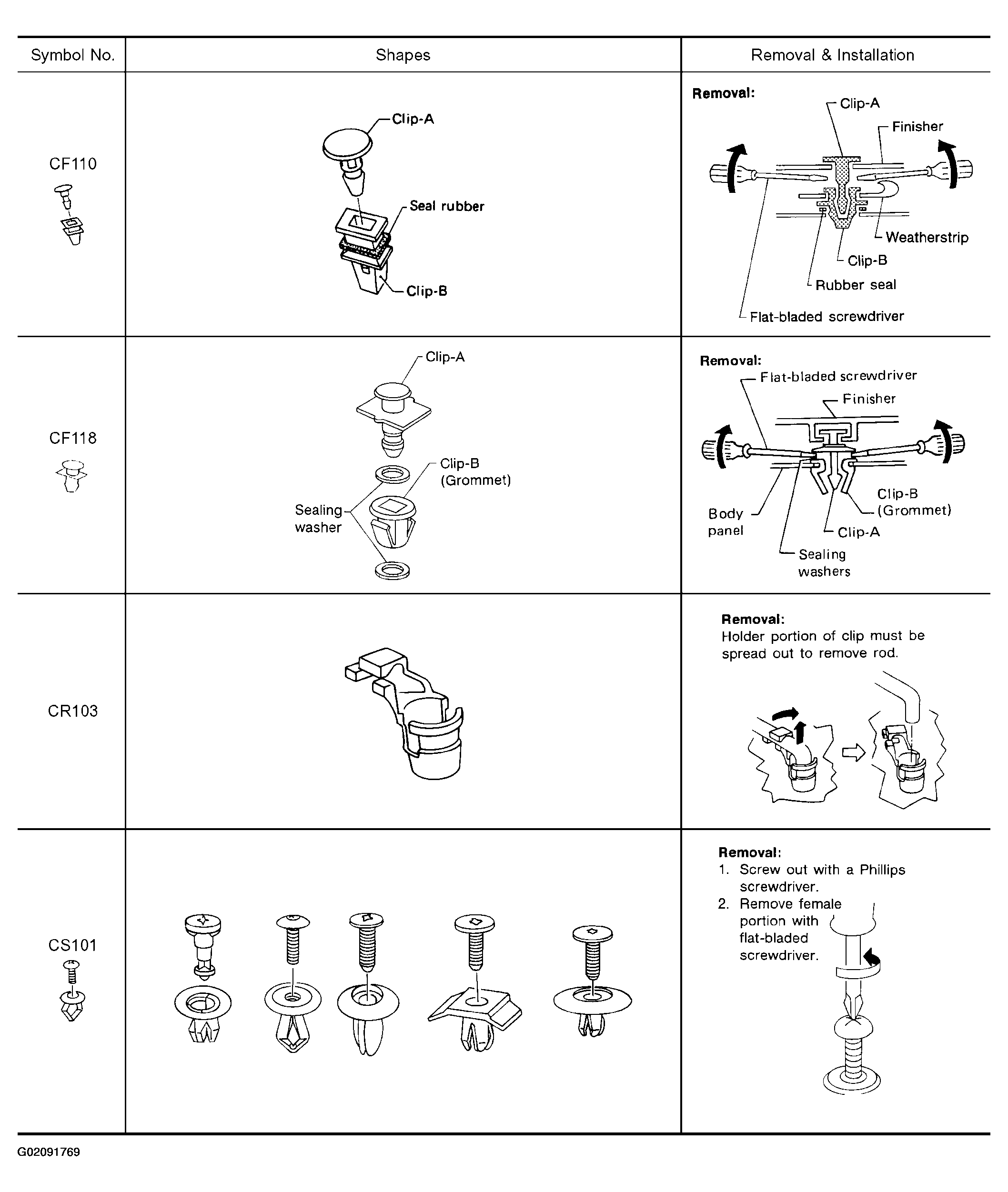

Fig 1: Identifying Clip & Fastener Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

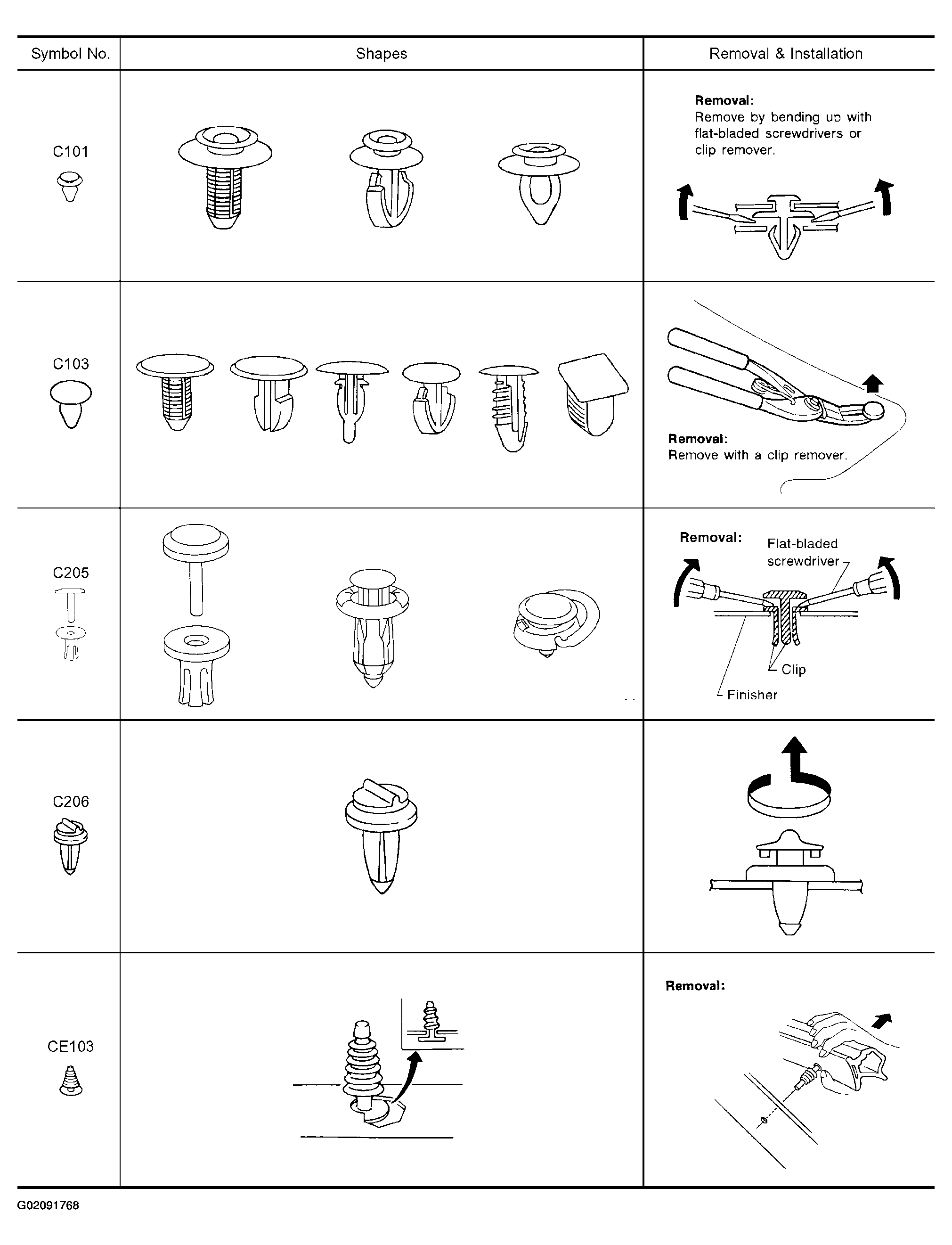

Fig 2: Identifying Clip & Fastener Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
