Wiring Diagram - Tail/L -

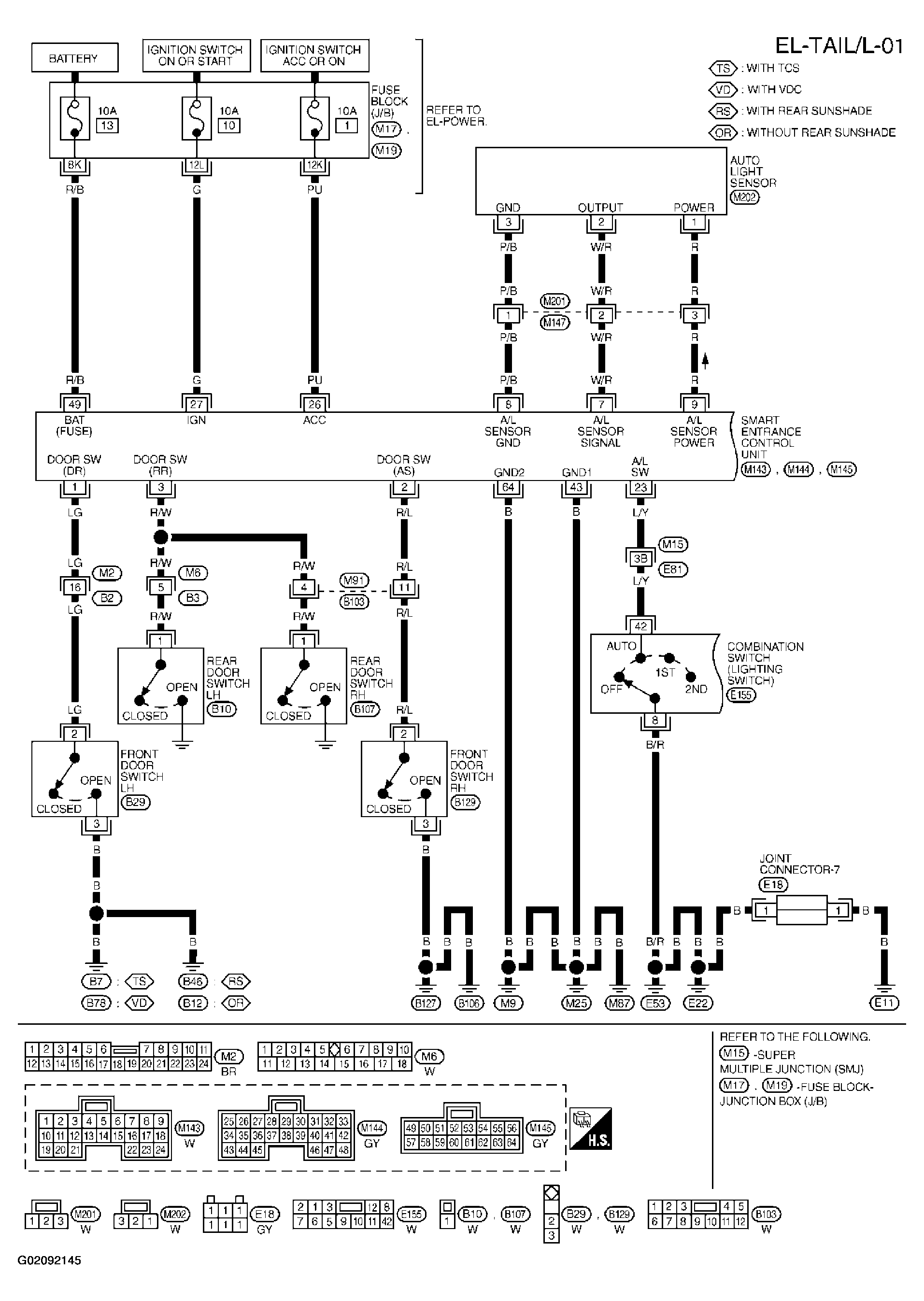

Fig 1: Displaying Wiring Diagram - Tail Lamps- TAIL/L -01

Courtesy of NISSAN MOTOR CO., U.S.A.

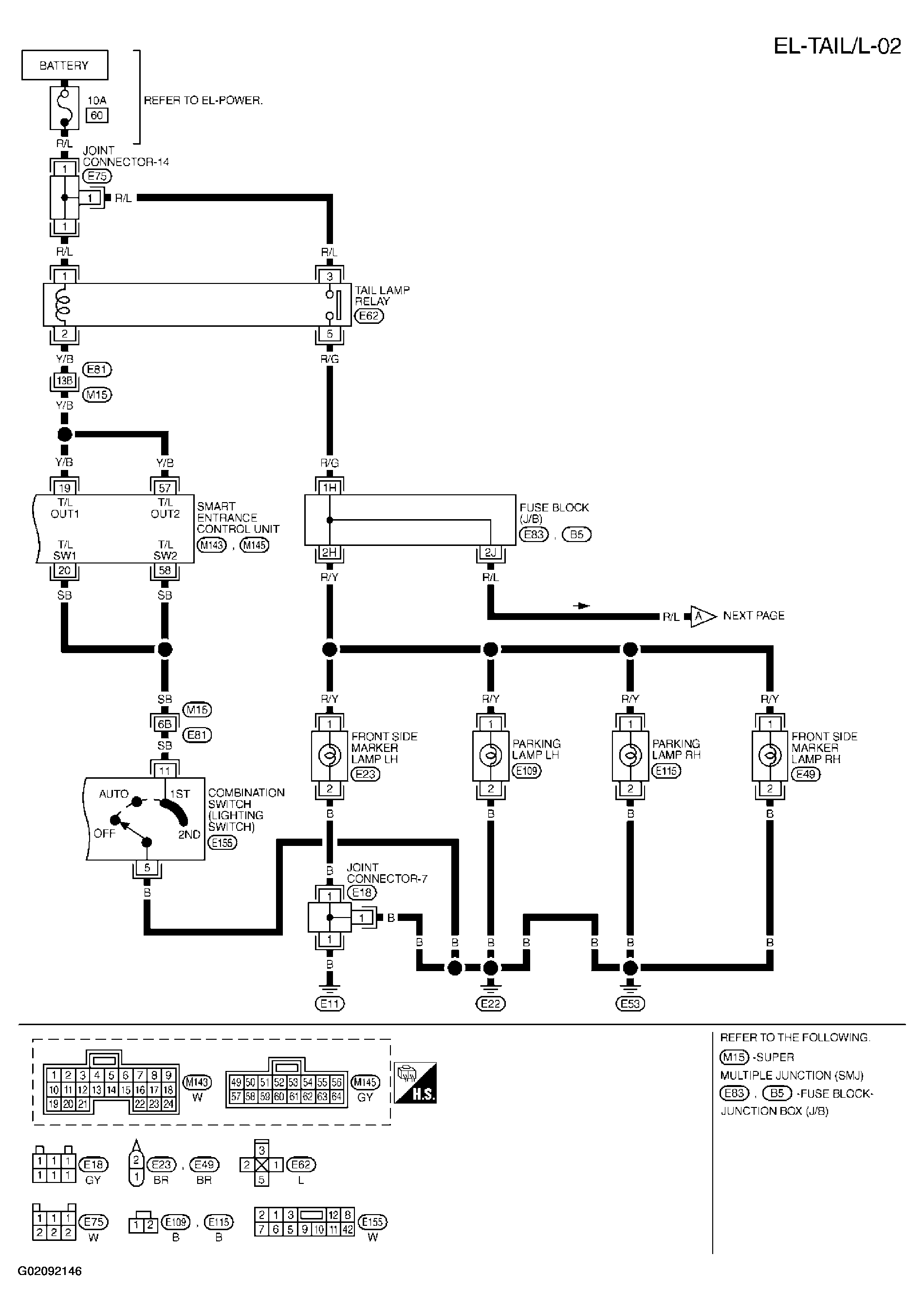

Fig 2: Displaying Wiring Diagram - Tail Lamps- TAIL/L -02

Courtesy of NISSAN MOTOR CO., U.S.A.

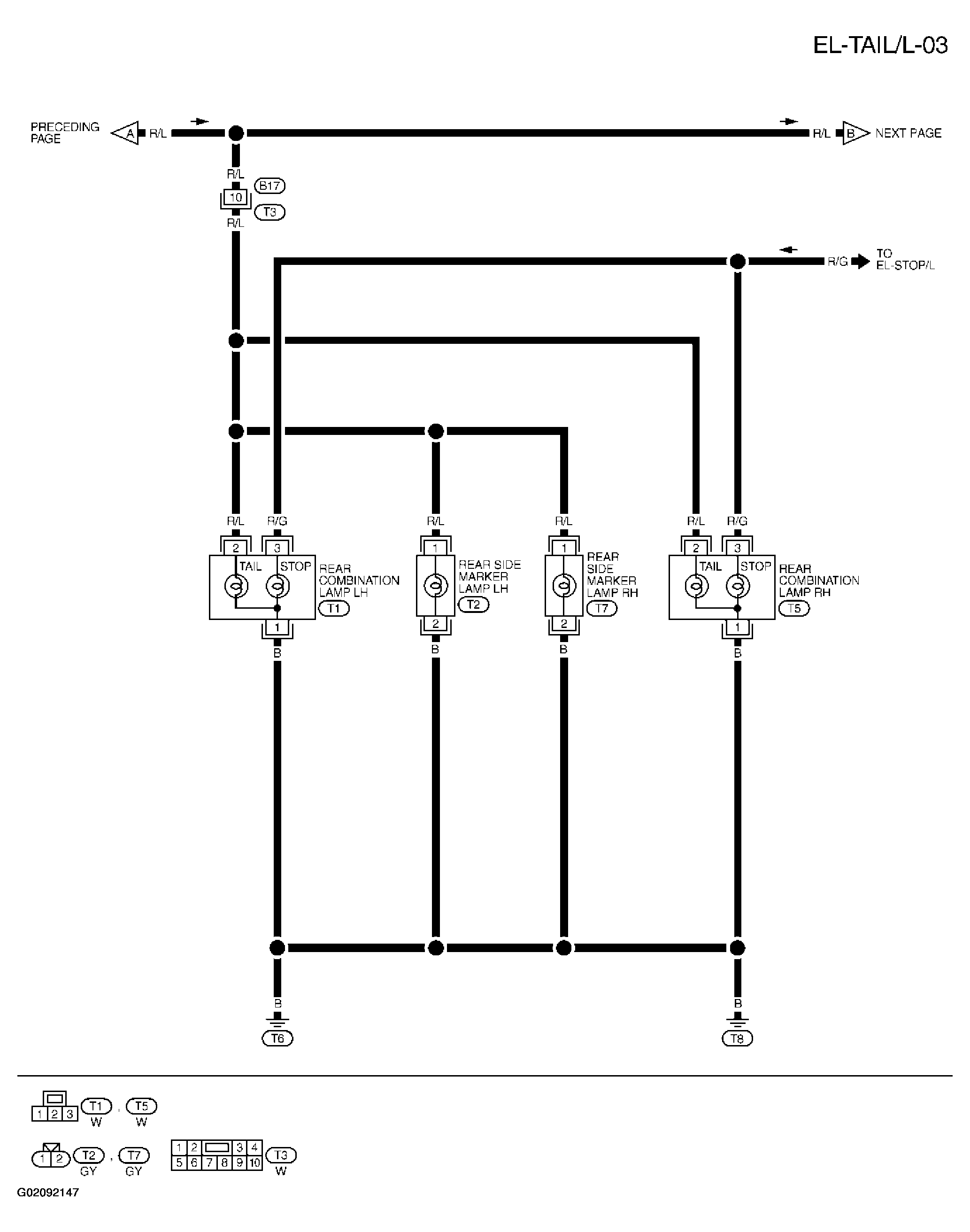

Fig 3: Displaying Wiring Diagram - Tail Lamps- TAIL/L -03

Courtesy of NISSAN MOTOR CO., U.S.A.

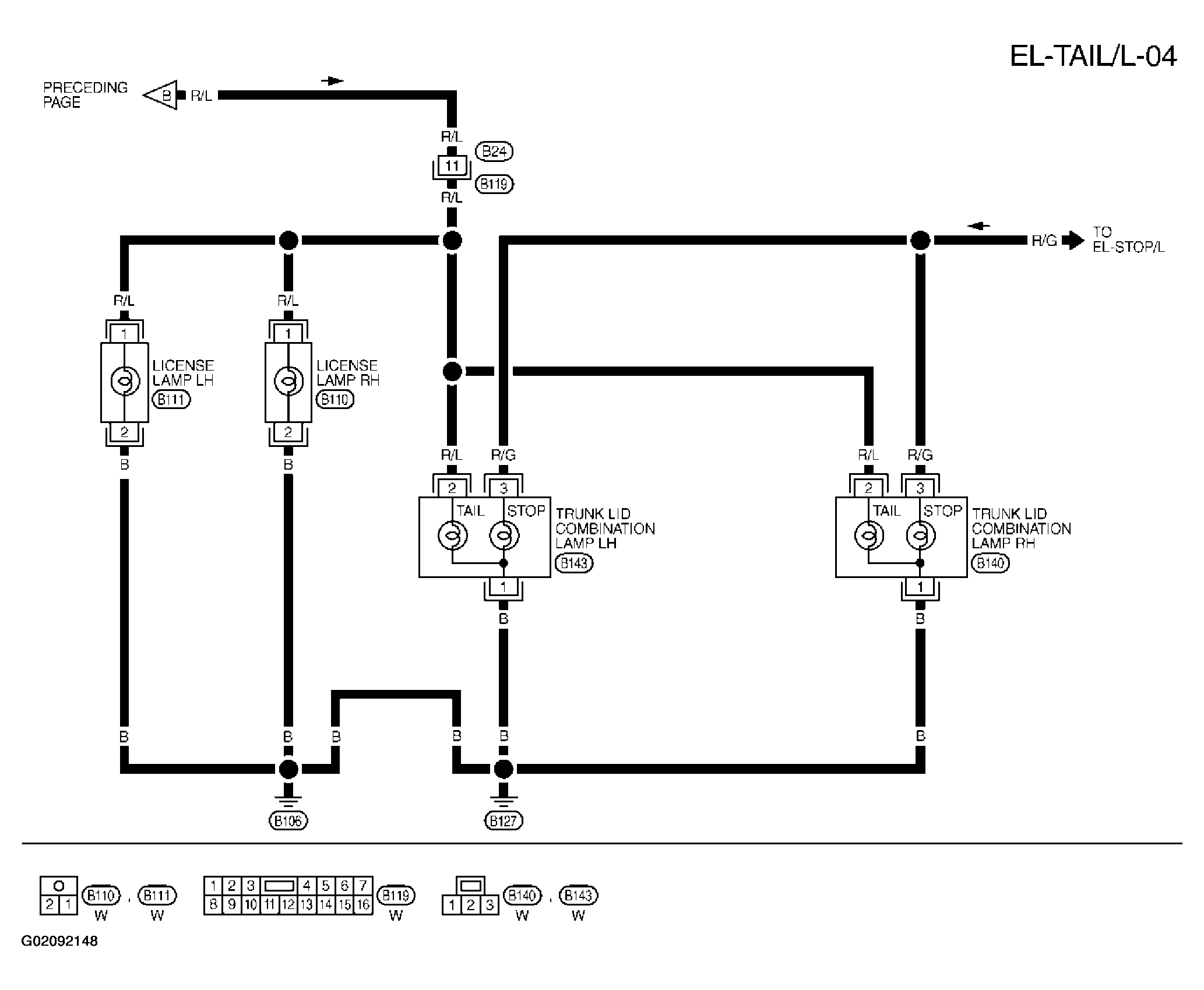

Fig 4: Displaying Wiring Diagram - Tail Lamps- TAIL/L -04

Courtesy of NISSAN MOTOR CO., U.S.A.

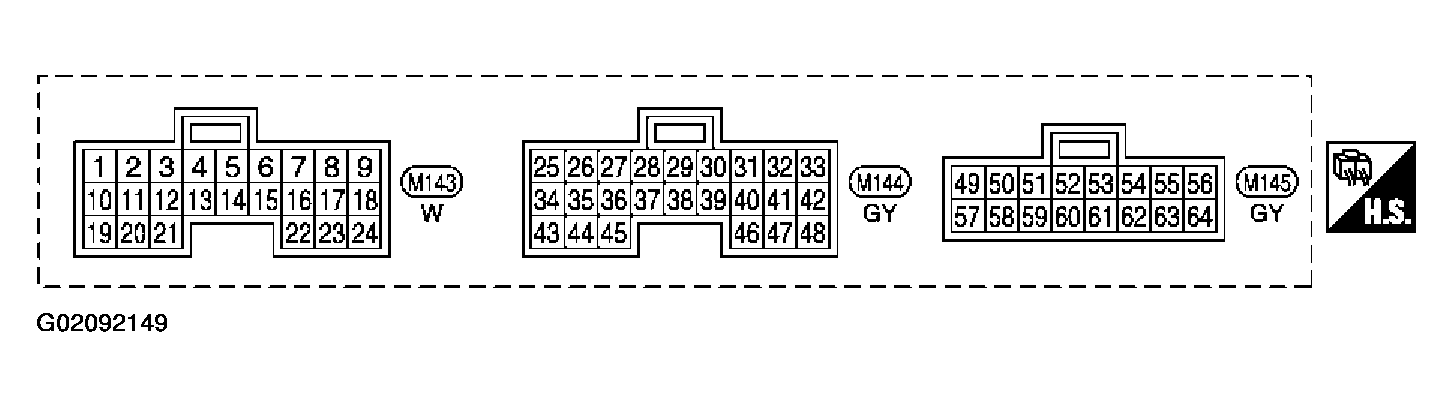

Fig 5: Identifying Terminal Location

Courtesy of NISSAN MOTOR CO., U.S.A.

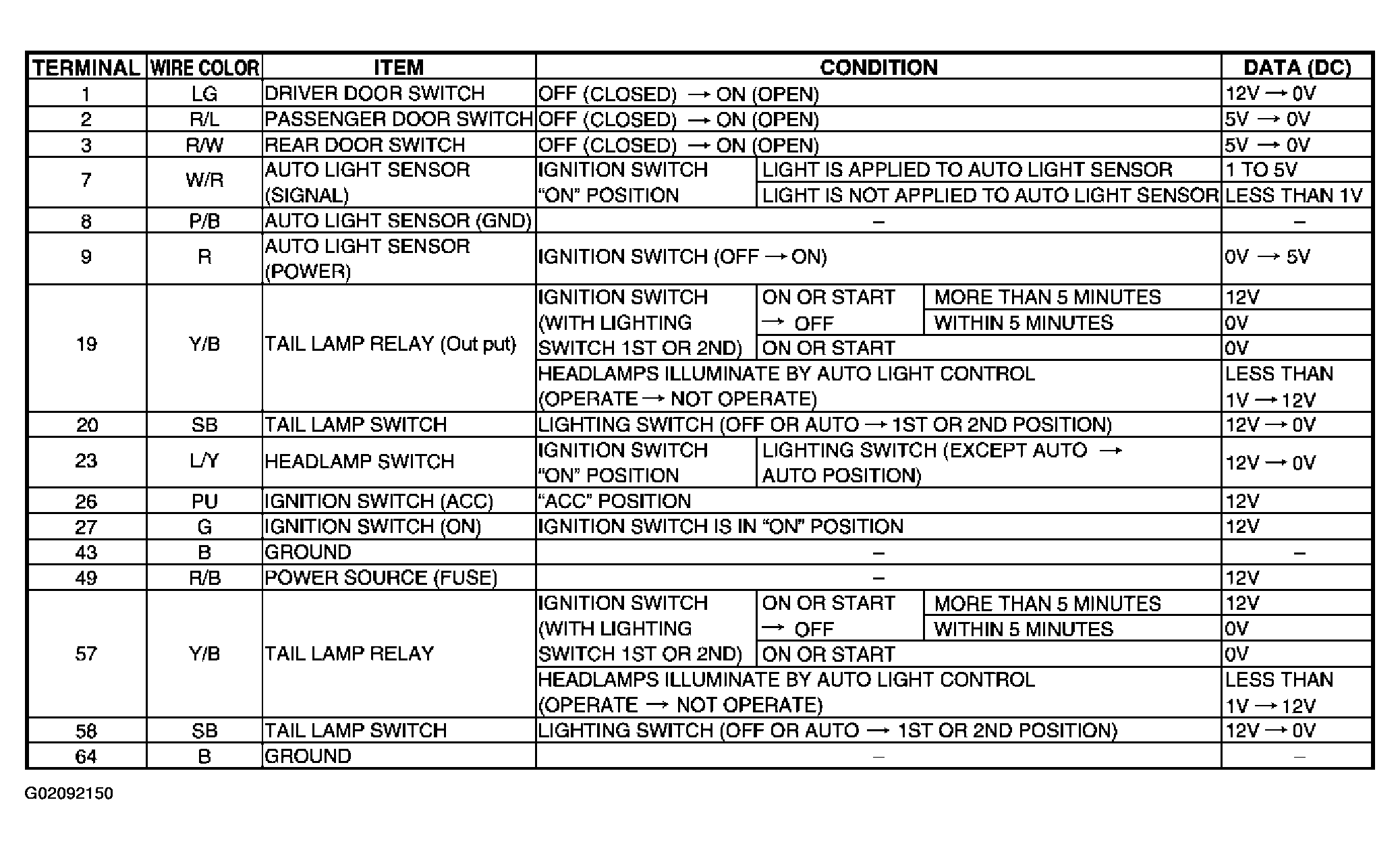

Fig 6: Displaying Terminal Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For CONSULT-II inspection procedure, refer to HEADLAMP (FOR USA) .
For CONSULT-II Application Items, refer to HEADLAMP (FOR CANADA) -- DAYTIME LIGHT SYSTEM .
