Oil Pressure Switch

Check continuity between oil pressure switch and ground.

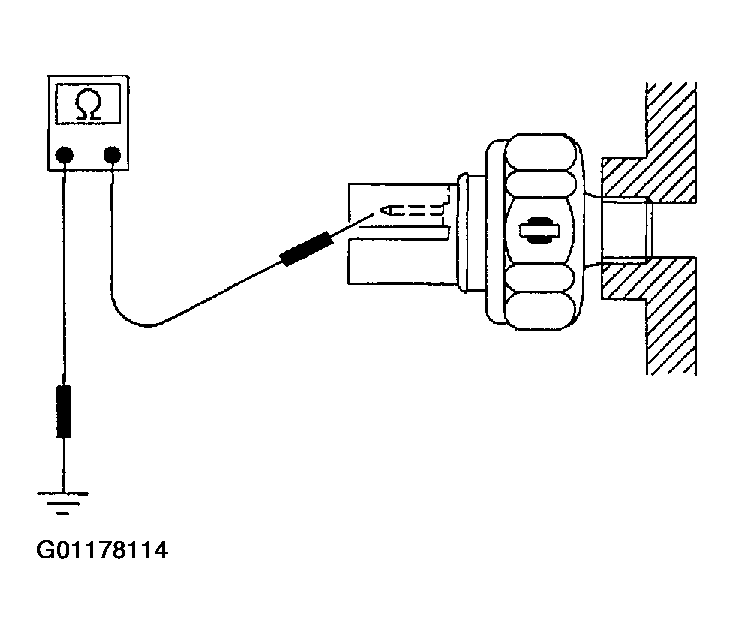

Fig 1: Checking Continuity Between Oil Pressure Switch & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

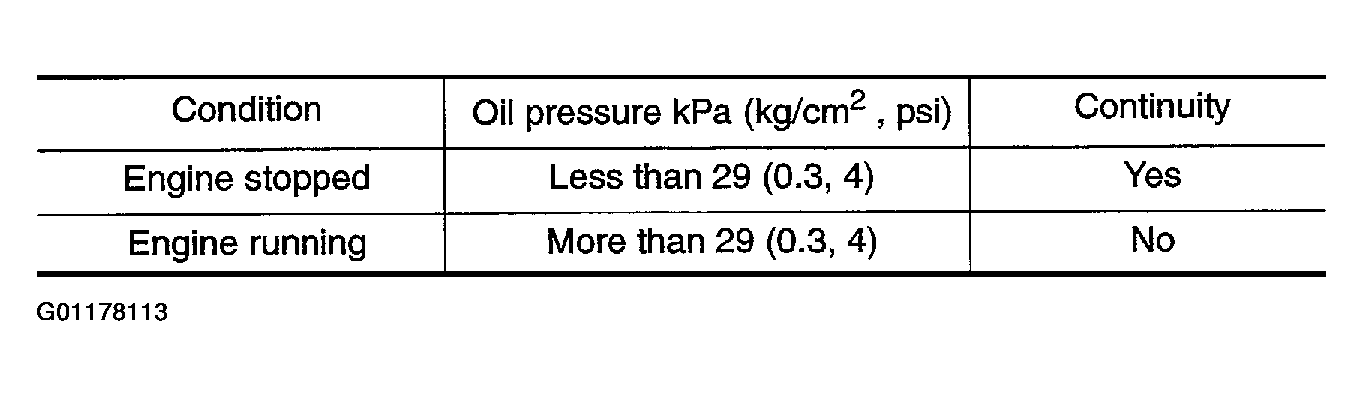

Fig 2: Checking Continuity Between Oil Pressure Switch & Ground Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
