All Warnings Are Not Operated

Select "BUZZER" on CONSULT-II, and perform "LIGHT WARN ALM", "IGN KEY WARN ALM" or "SEAT BELT WARN" of "ACTIVE TEST".

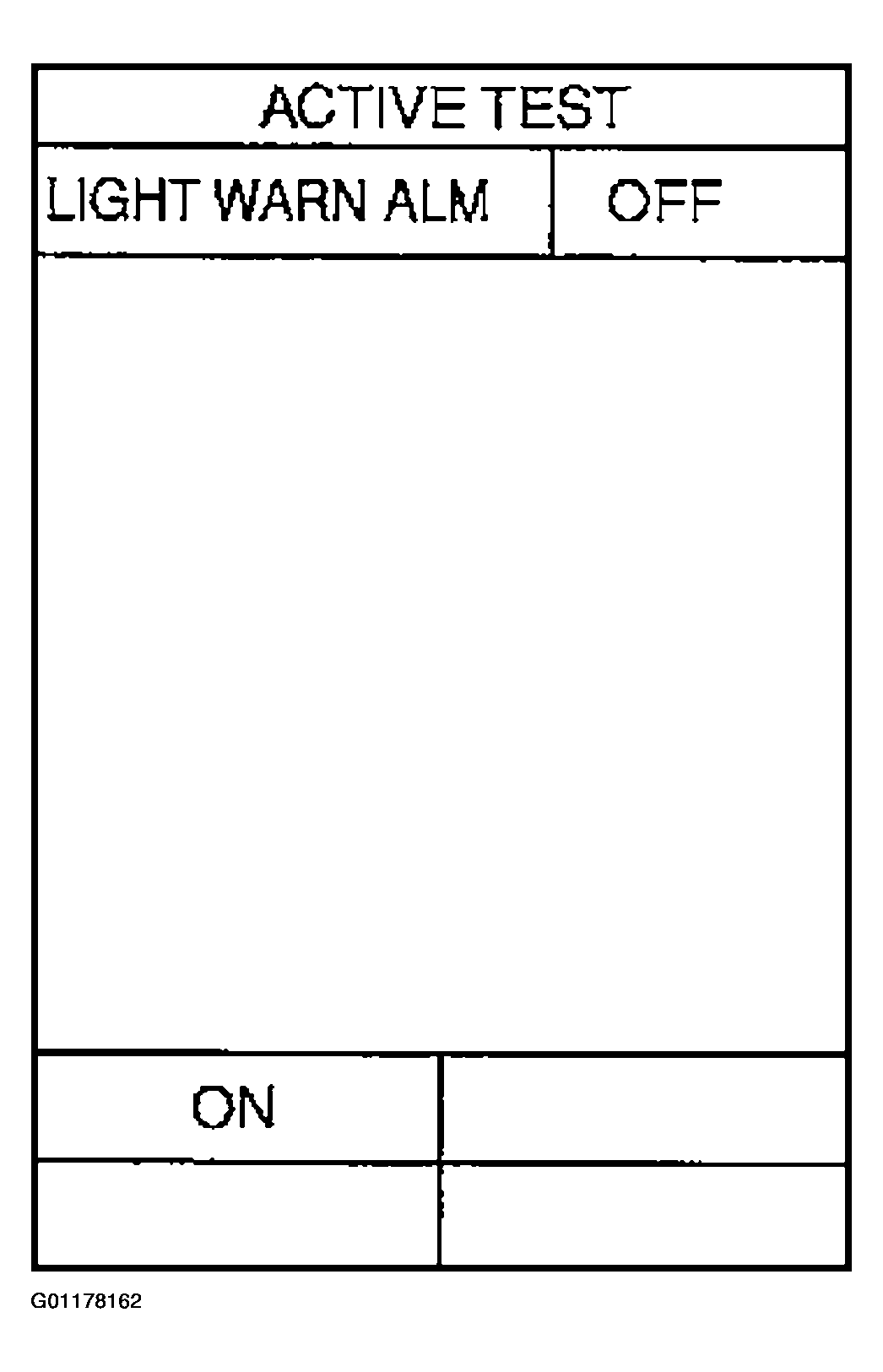

Fig 1: Identifying CONSULT-II Display Screen - LIGHT WARN ALM

Courtesy of NISSAN MOTOR CO., U.S.A.

Does chime sound?

YES: Replace BCM. Refer to REMOVAL AND INSTALLATION OF BCM .

NO: GO TO 2.

Select "METER A/C AMP" on CONSULT-II. Operate switches meet the requirements to sounds warning chime with "BUZZER" of "DATA MONITOR" and check operation status.

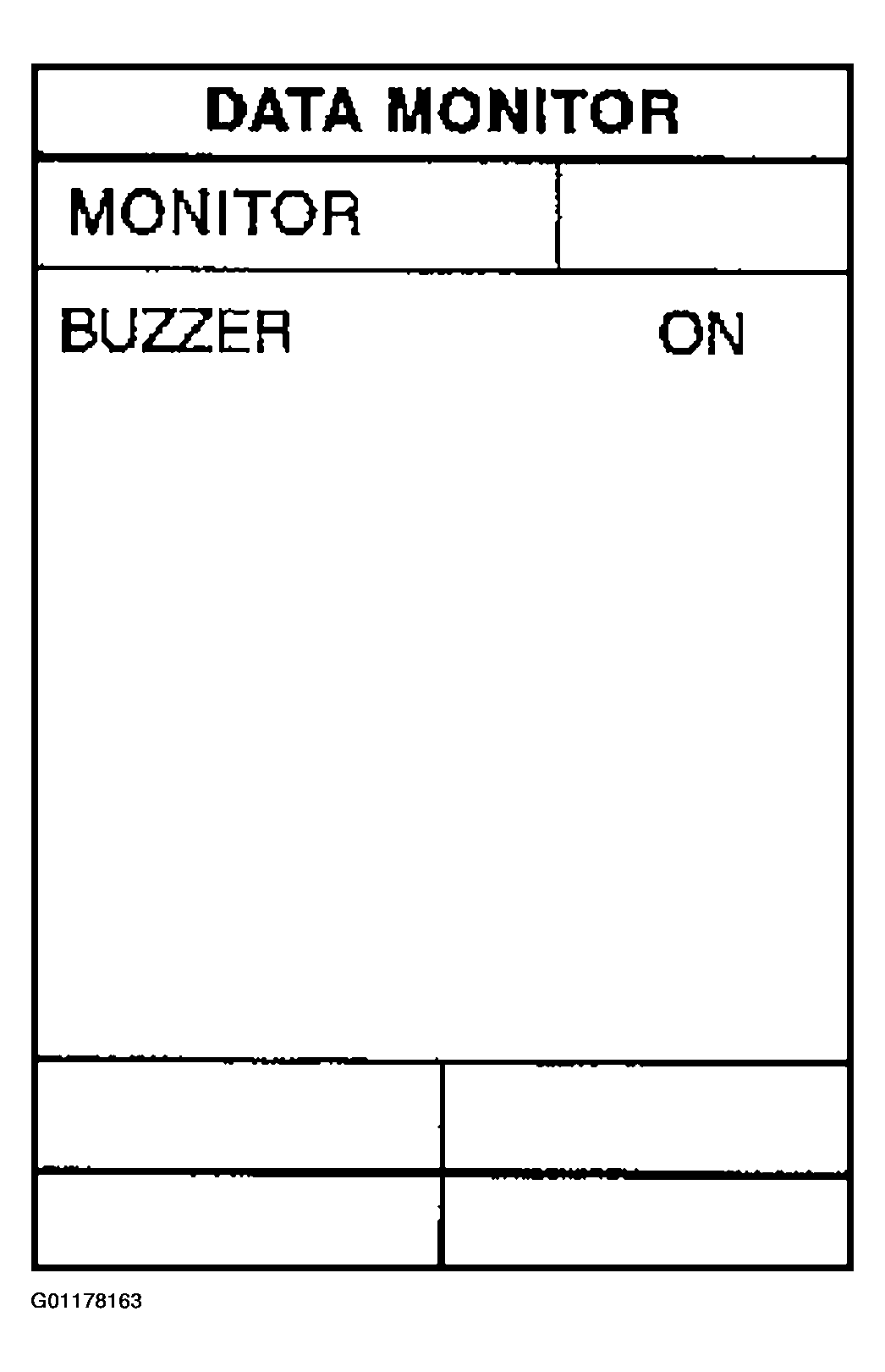

Fig 2: Identifying CONSULT-II Display Screen - BUZZER

Courtesy of NISSAN MOTOR CO., U.S.A.

When meet the requirements to : BUZZER ON sounds warning chime

Except above : BUZZER OFF

OK or NG

OK: Replace combination meter.

NG: Replace BCM. Refer to REMOVAL AND INSTALLATION OF BCM .
