Warning Chime: Schematic

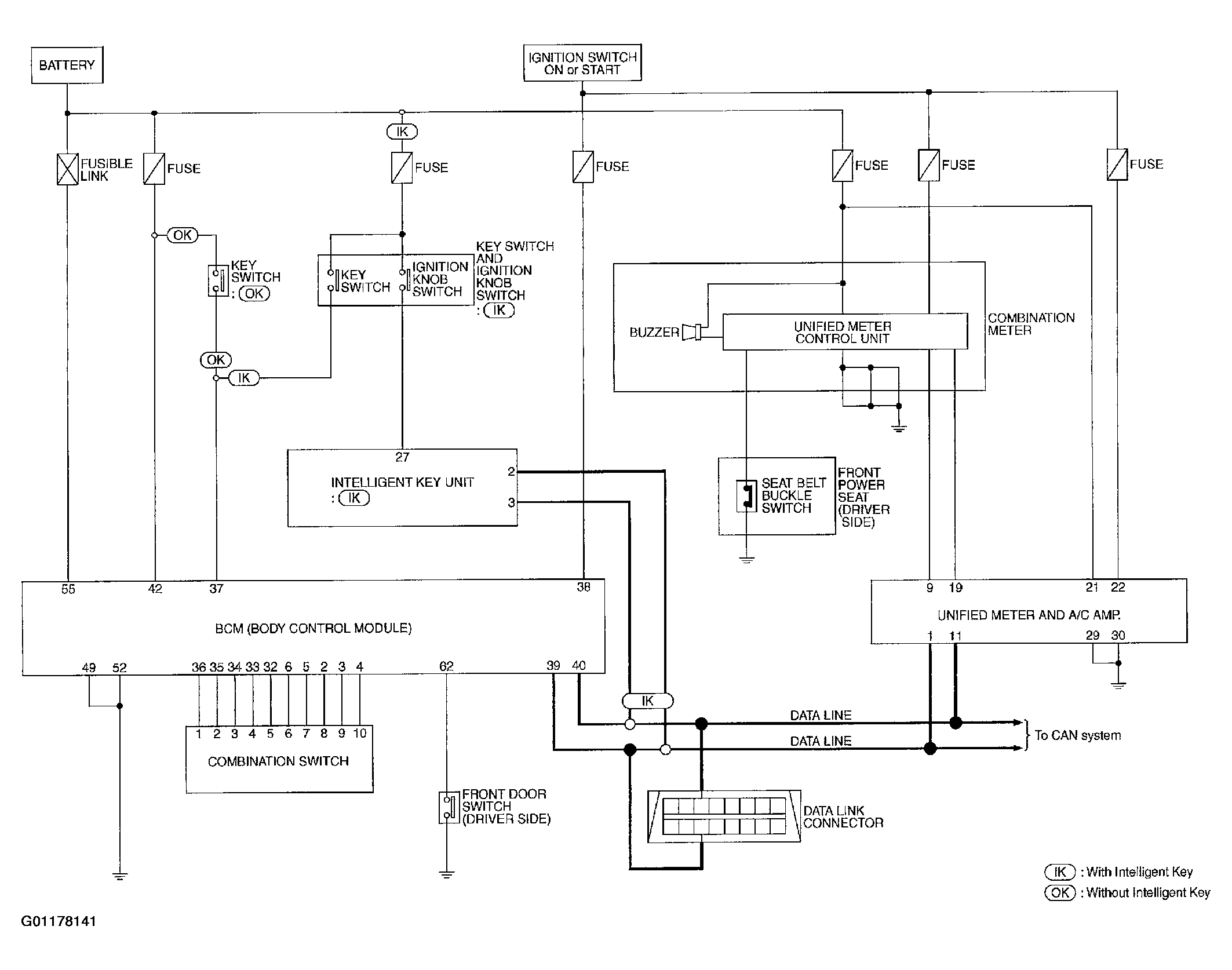

Fig 1: Warning Chime Schematic

G01178141

Courtesy of NISSAN MOTOR CO., U.S.A.
