Exterior Lights
>>
Parking License & Tail Lamps
>>
Parking, License Plate And Tail Lamps
>>
Wiring Diagram - Tail/L -
Wiring Diagram - Tail/L -

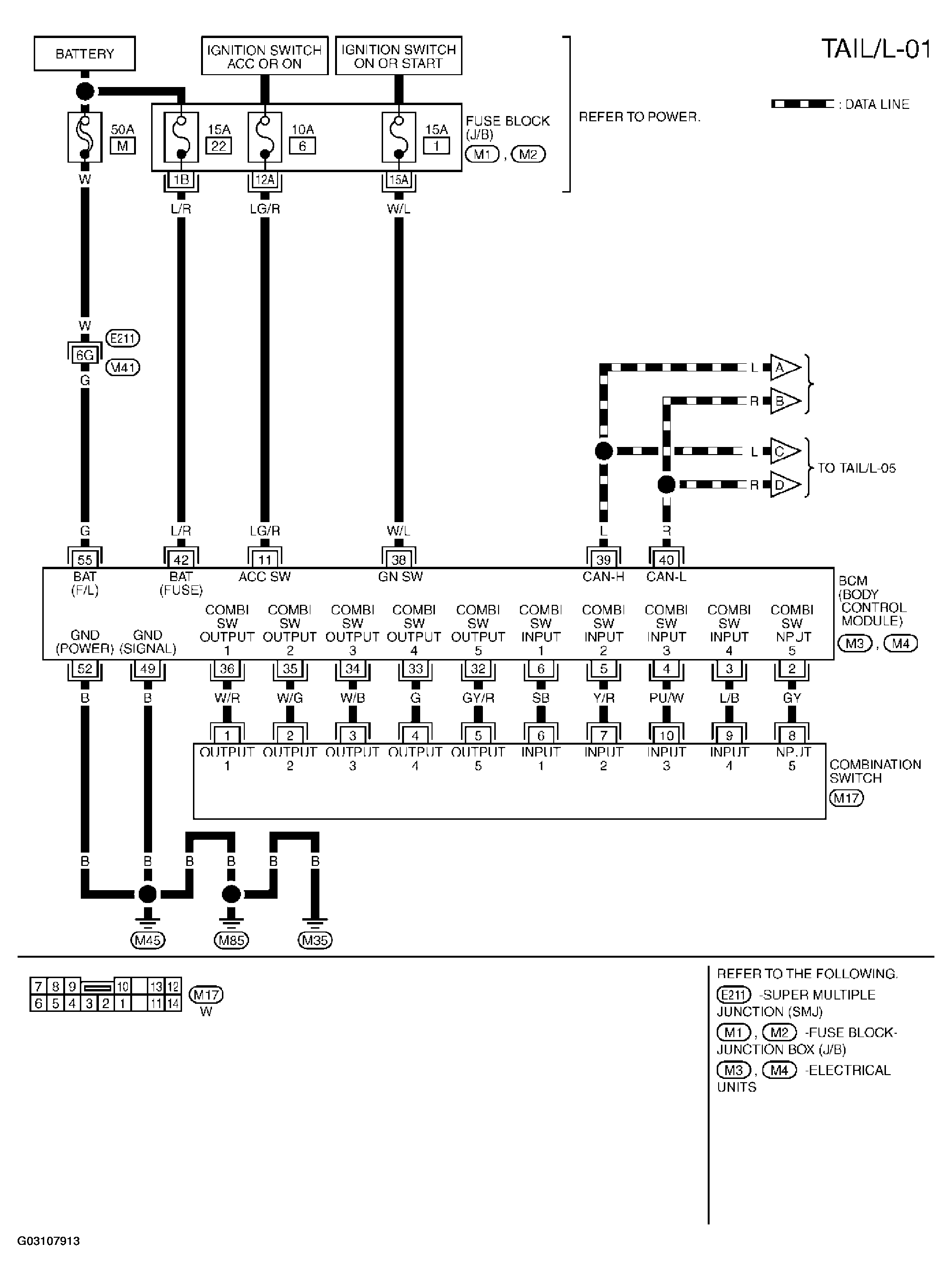

Fig 1: Parking, License Plate And Tail Lamps Wiring Diagram - TAIL/L (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

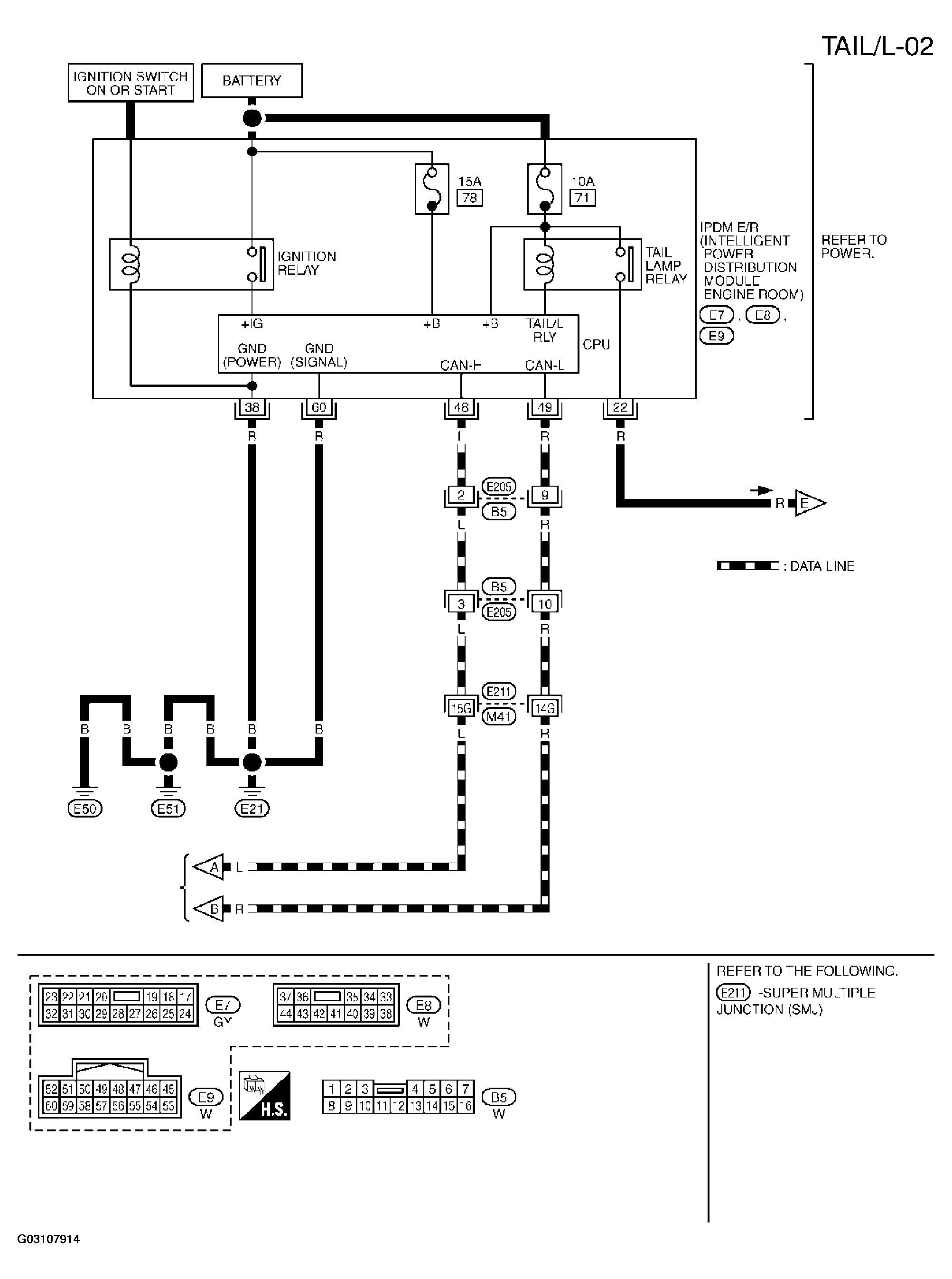

Fig 2: Parking, License Plate And Tail Lamps Wiring Diagram - TAIL/L (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

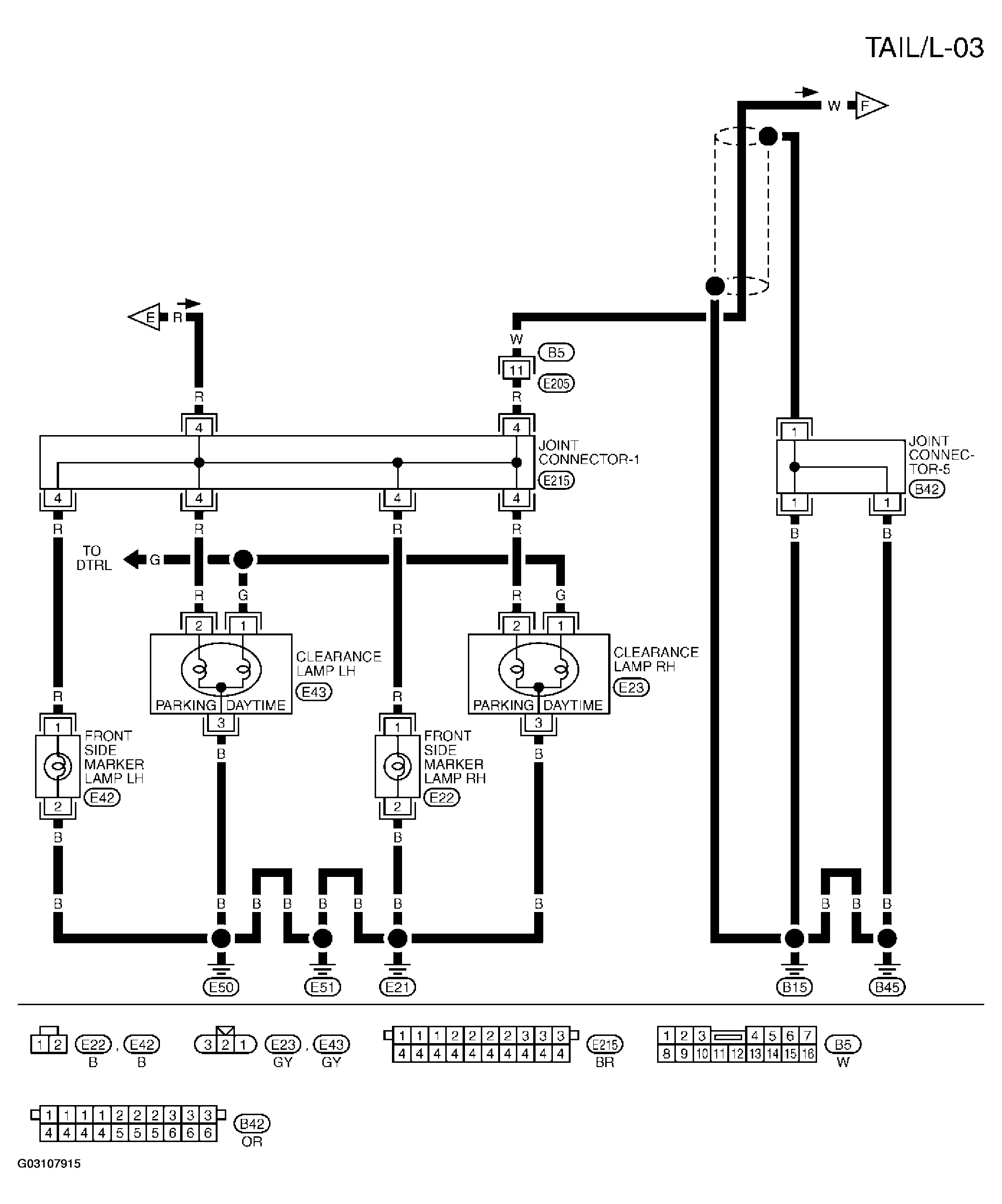

Fig 3: Parking, License Plate And Tail Lamps Wiring Diagram - TAIL/L (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

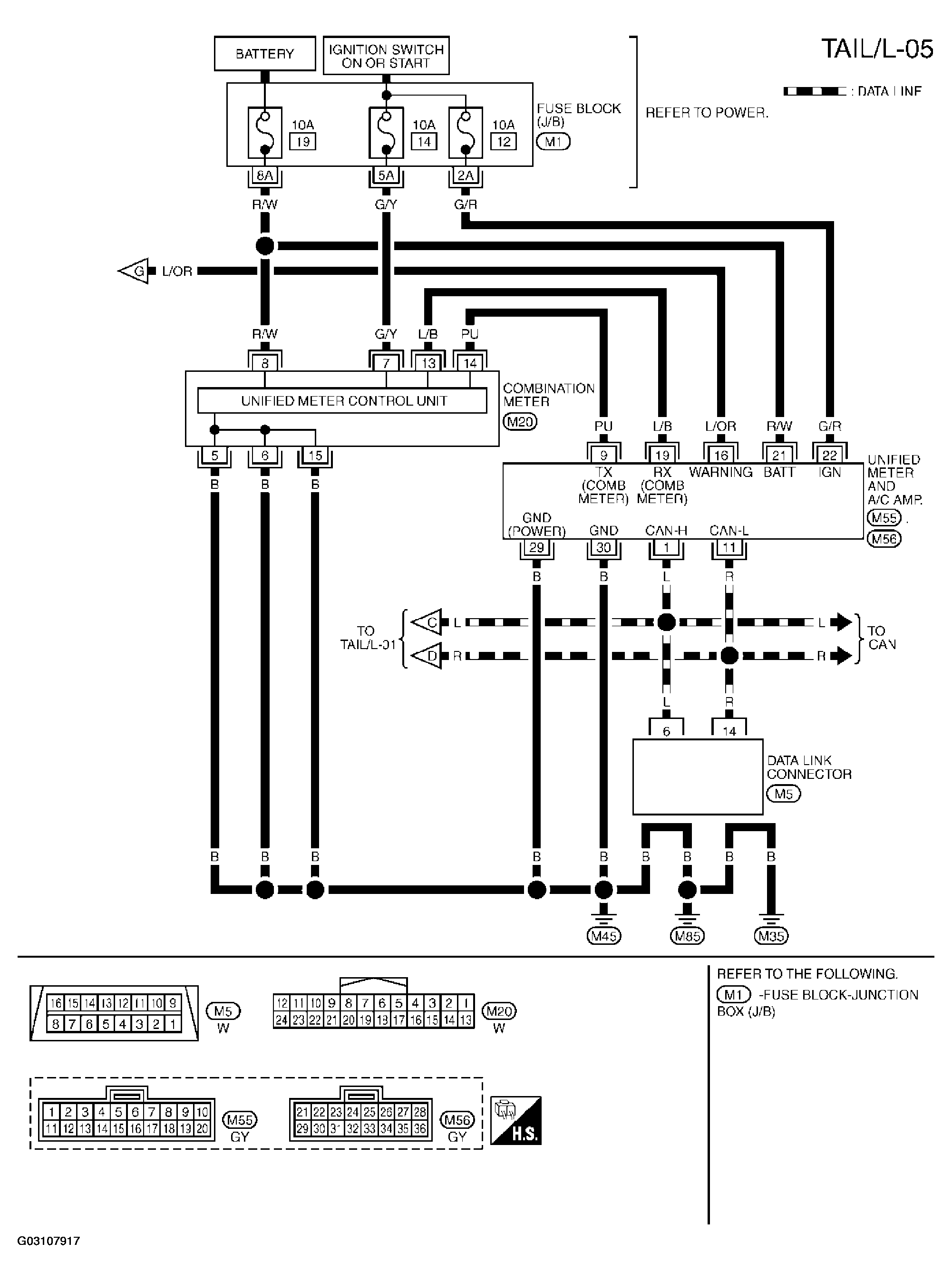

Fig 4: Parking, License Plate And Tail Lamps Wiring Diagram - TAIL/L (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

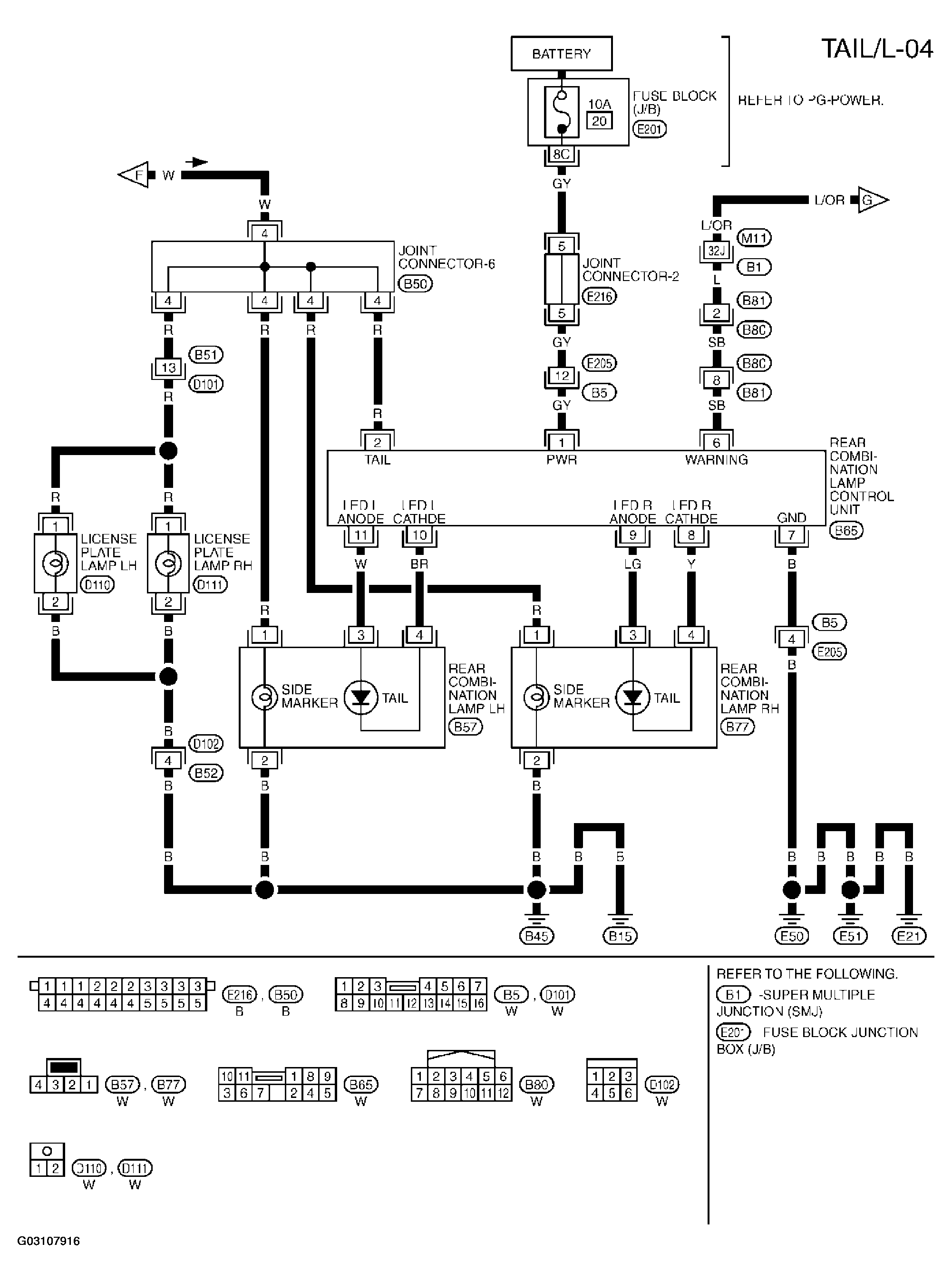

Fig 5: Parking, License Plate And Tail Lamps Wiring Diagram - TAIL/L (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
