Parking, License Plate And Tail Lamps: Schematic

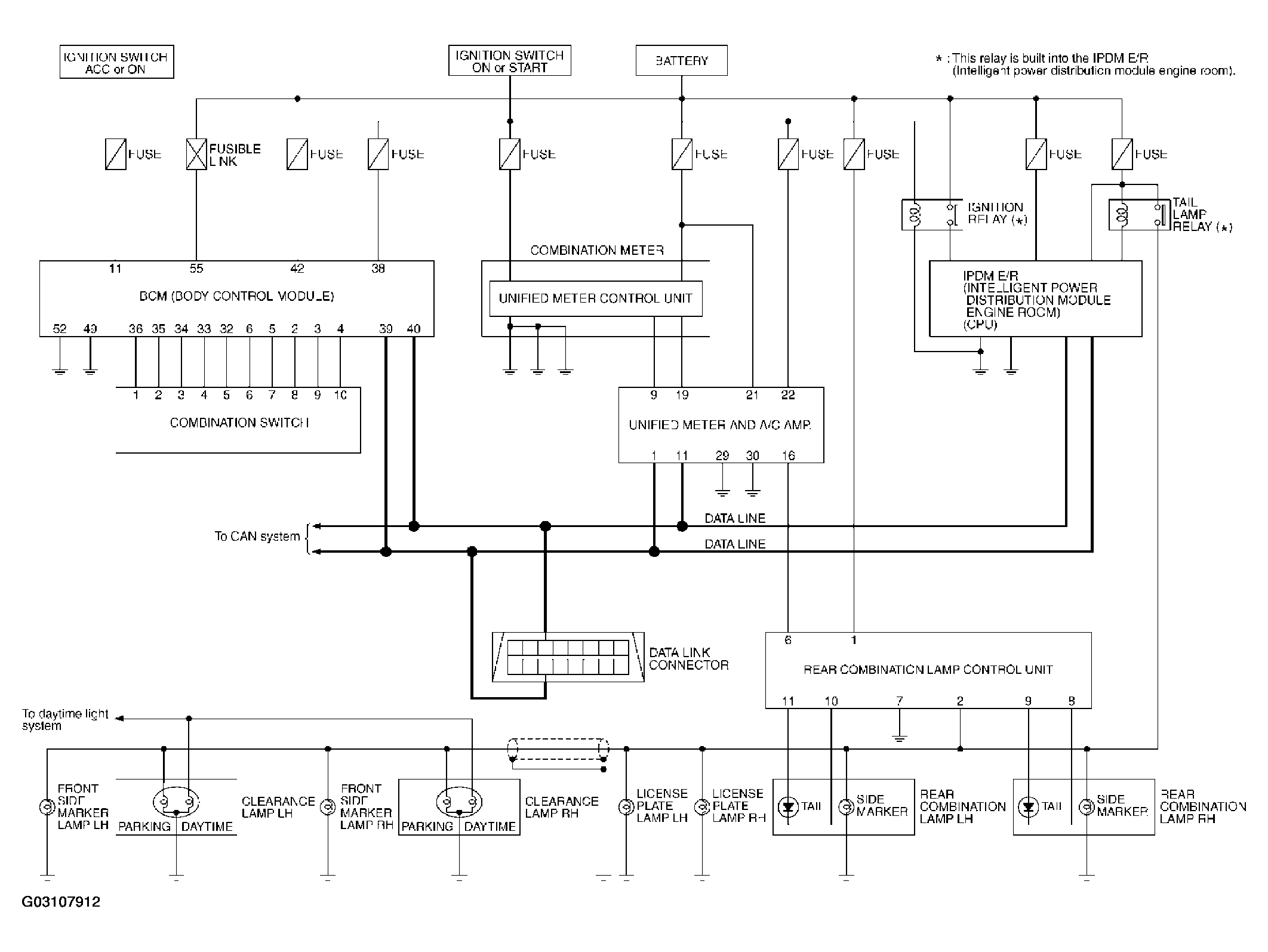

Fig 1: Parking, License Plate And Tail Lamps Schematic Diagram

G03107912

Courtesy of NISSAN MOTOR CO., U.S.A.
