Bulb Replacement, Removal And Installation

  1. Remove screws and remove license plate lamp from back door.

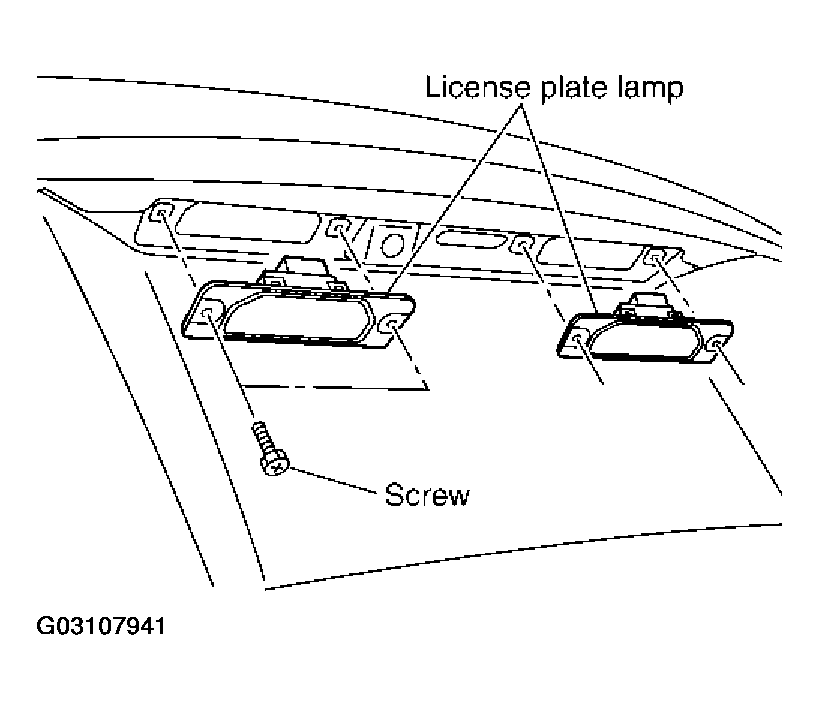

    2. Fig 1: Removing License Plate Lamp From Back Door
    G03107941Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Disconnect license plate lamp connector.
  3. Insert a flat head or suitable tool and remove housing.
  4. Remove bulb from it's socket.

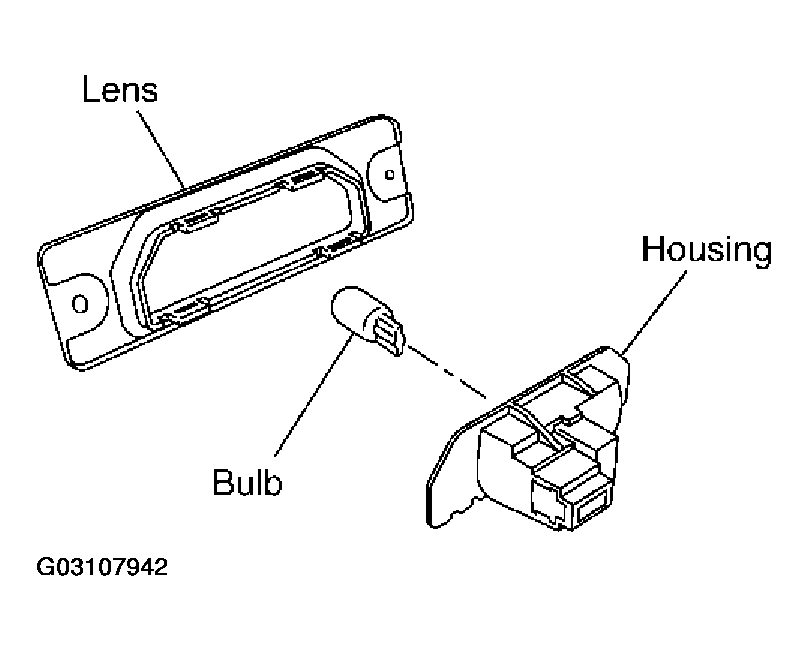

    Fig 2: Removing Bulb From Socket
    G03107942Courtesy of NISSAN MOTOR CO., U.S.A.

    License plate lamp: 12V - 5W

  5. Install in the reverse order of removal.
