Fuel Gauge Sending Unit

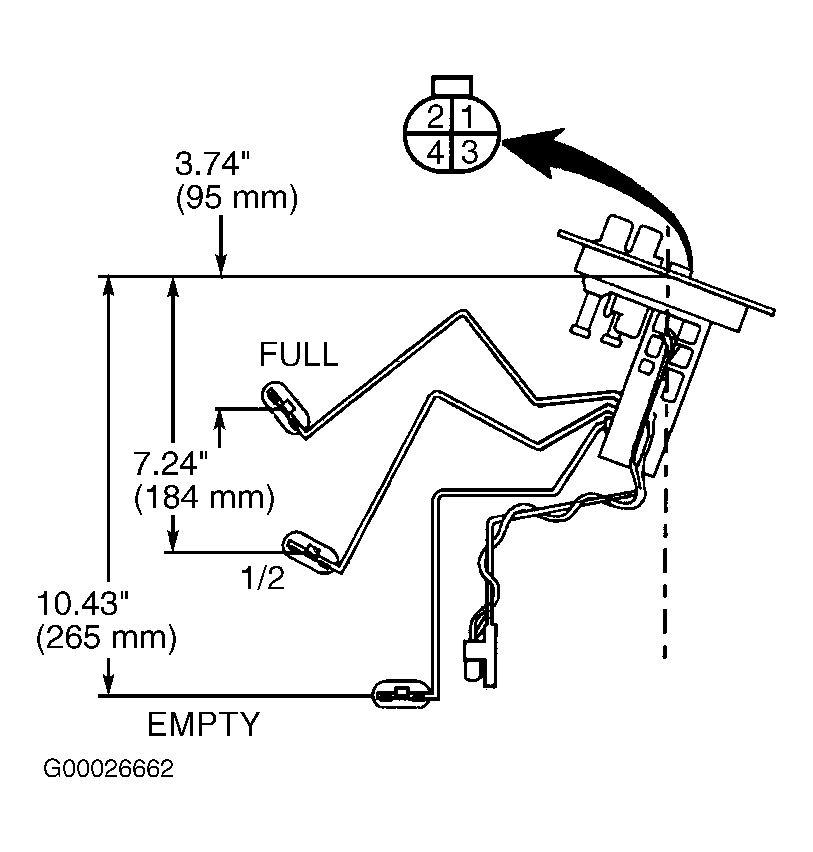

Ensure ignition is off. Disconnect fuel gauge harness connector at fuel tank. Install an 80-ohm resistor between terminals No. 2 (Black wire) and No. 3 (Yellow/Purple wire) on fuel gauge harness connector. Using a DVOM, connect positive lead to sending unit terminal No. 3, and negative lead to terminal No. 2. See Fig 1 . Measure resistance between indicated terminals with fuel gauge sending unit float in specified positions. See FUEL GAUGE SENDING UNIT TEST . If resistance is not as specified, replace fuel gauge sending unit.
FUEL GAUGE SENDING UNIT TEST
| Float Position | Ohms |
|---|---|
| Full | About 4-6 |
| 1/2 | 31-34 |
| Empty | About 80-83 |
