Wiring Diagram - AT/IND -
Wiring Diagram - AT/IND -

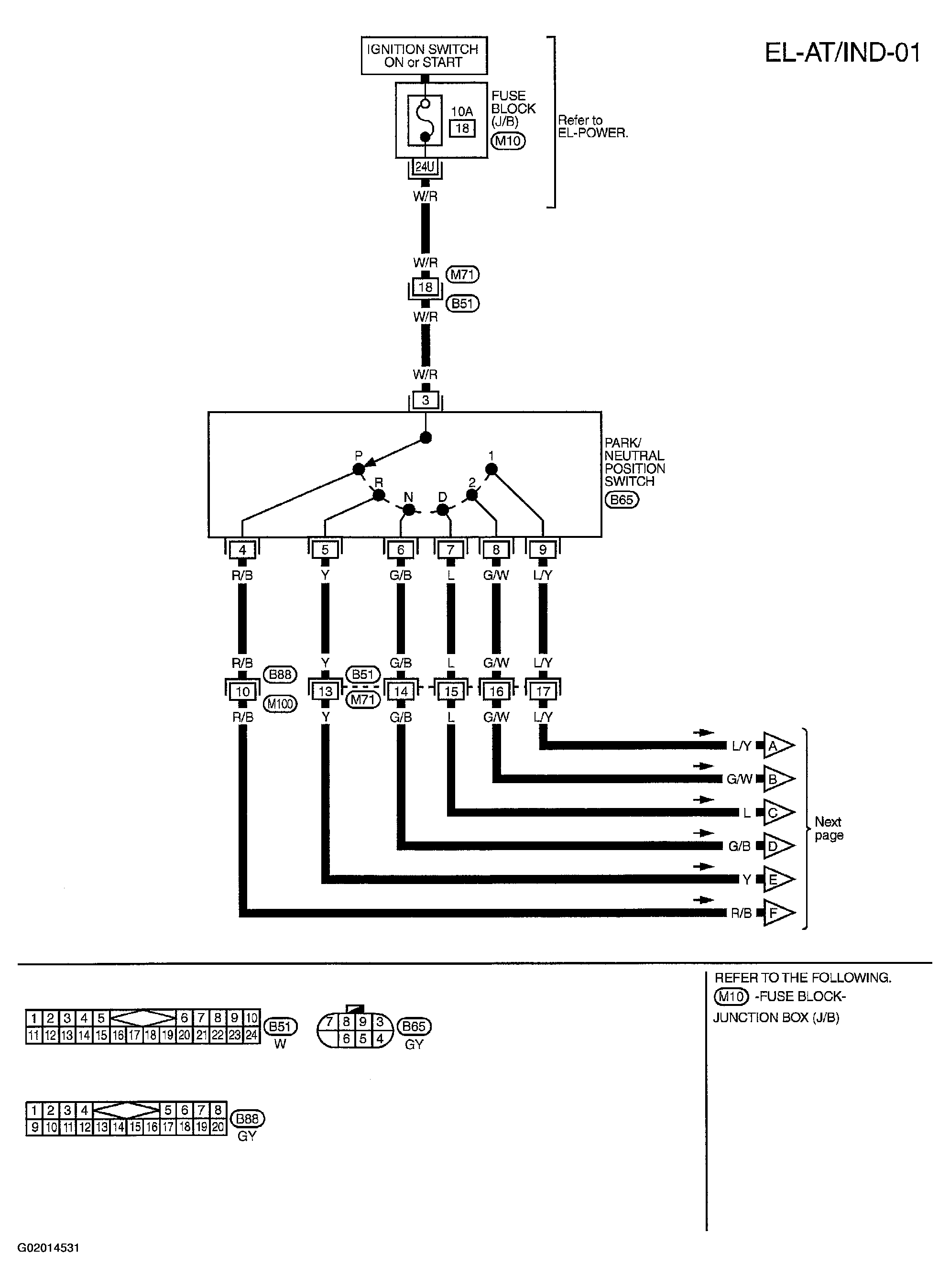

Fig 1: Wiring Diagram - A/T Indicator (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

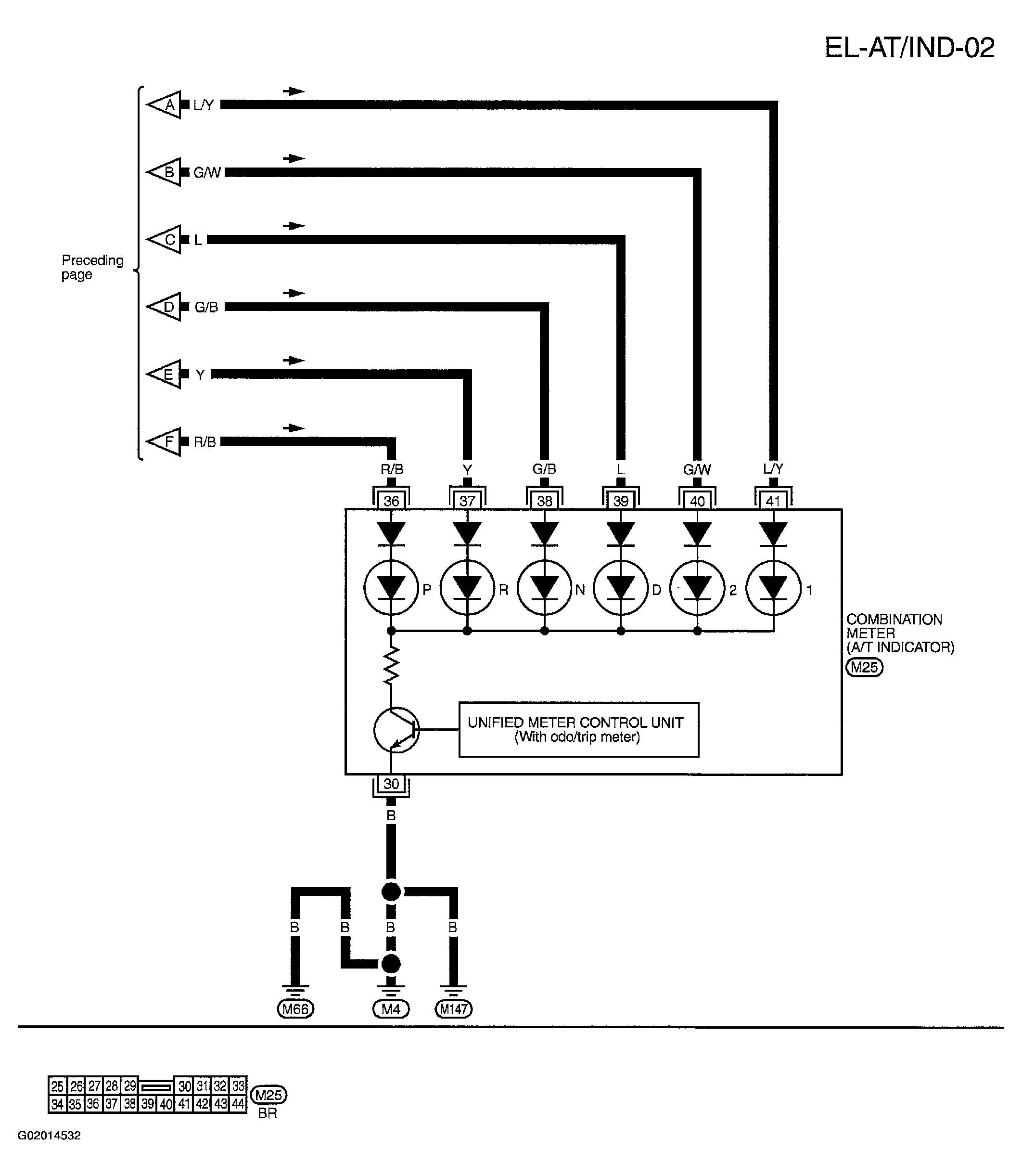

Fig 2: Wiring Diagram - A/T Indicator (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
