"Key Warn ALM"/"Light Warn ALM"/"Seat Belt ALM"

Turn ignition switch "OFF".

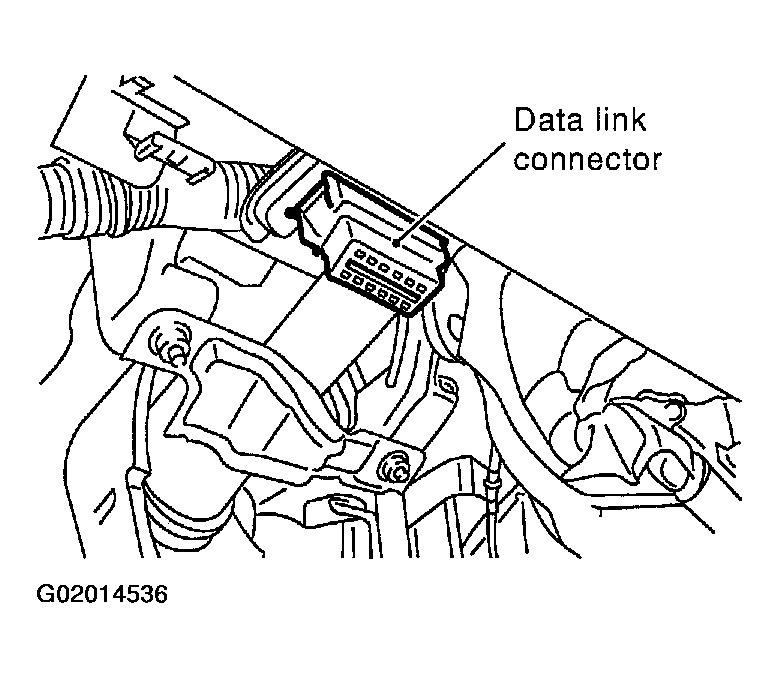

Connect "CONSULT-II" to the data link connector.

Fig 1: Key Warn Alm, Light Warn Alm And Seat Belt Alm CONSULT-II Inspection Procedure (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START".

Fig 2: Key Warn Alm, Light Warn Alm And Seat Belt Alm CONSULT-II Inspection Procedure (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SMART ENTRANCE".

Fig 3: Key Warn Alm, Light Warn Alm And Seat Belt Alm CONSULT-II Inspection Procedure (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "KEY WARN ALM", "LIGHT WARN ALM" or "SEAT BELT ALM".

Fig 4: Key Warn Alm, Light Warn Alm And Seat Belt Alm CONSULT-II Inspection Procedure (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
- DATA MONITOR and ACTIVE TEST are available for the warning chime.

  Fig 5: Key Warn Alm, Light Warn Alm And Seat Belt Alm CONSULT-II Inspection Procedure (5 Of 5)
  Courtesy of NISSAN MOTOR CO., U.S.A.
