Oil Pressure Switch Check

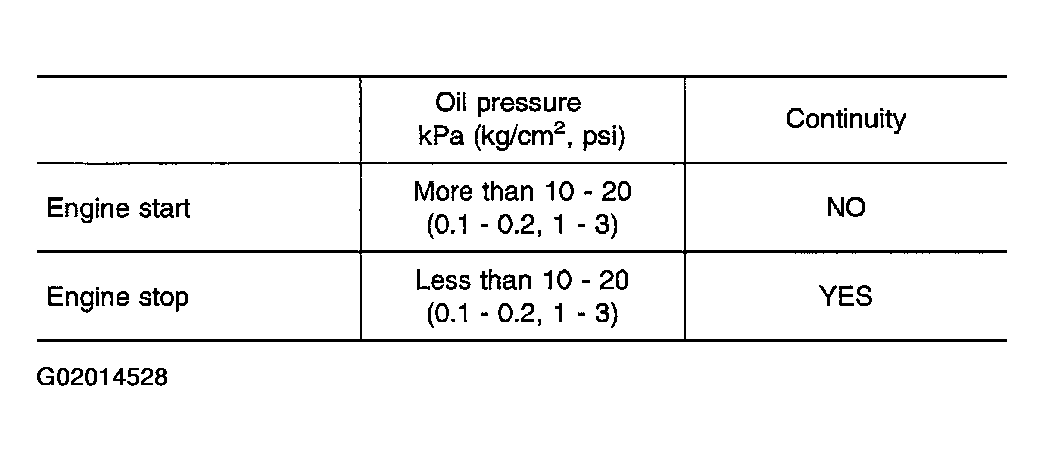

Fig 1: Checking Oil Pressure Switch (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

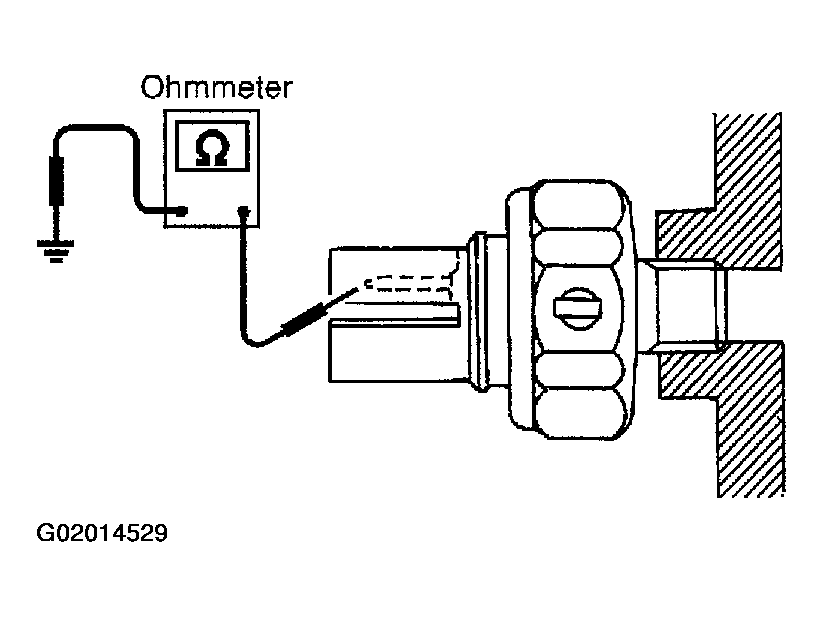

Fig 2: Checking Oil Pressure Switch (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Check the continuity between the terminals of oil pressure switch and body ground.
