Instrument Panel

  1. Remove bolts, and lower steering column.

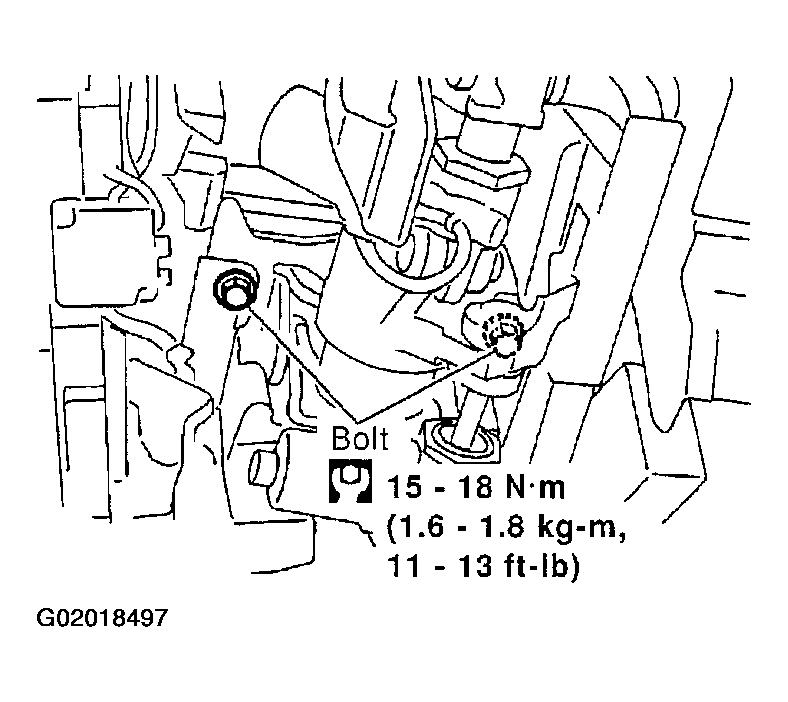

    Fig 1: Locating Steering Column Bolts And Torque Specifications
    G02018497Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove bolts, nuts and screws securing instrument panel with power tool, and remove instrument panel.
CAUTION:
  • To install, confirm locating pins on back of instrument panel are completely inserted into holes on vehicle.
  • Do not leave harness stuck when installing.
