Instrument Lower Cover

  1. Push down front of instrument lower cover, and disconnect metal clips.
  2. Pull it horizontally, and remove from lower cover clips.
    CAUTION: Remove connectors of air bag (as connected) from instrument lower cover.

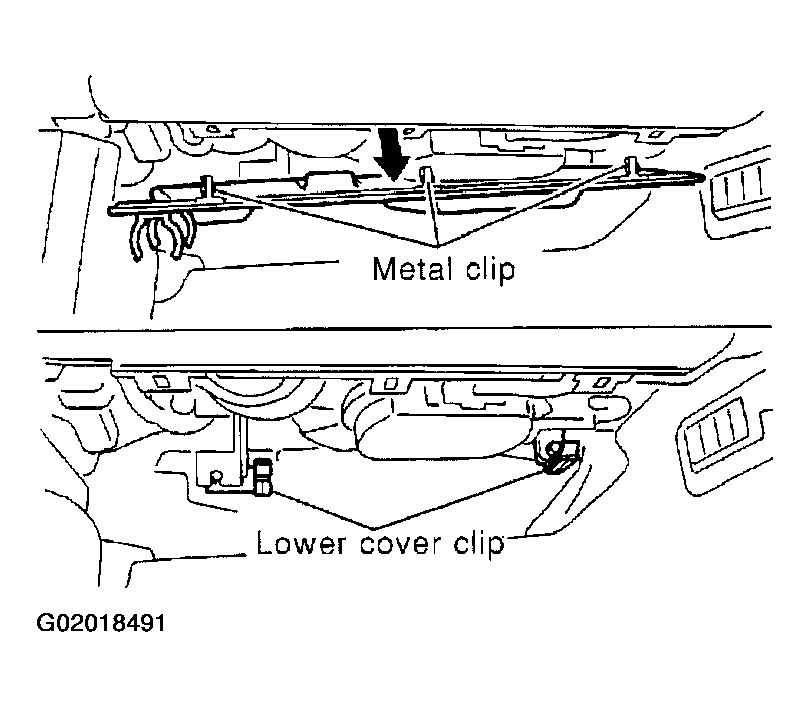

    Fig 1: Locating Instrument Lower Cover Metal Clip And Lower Cover Clip
    G02018491Courtesy of NISSAN MOTOR CO., U.S.A.
