Cluster Lid A

  1. Remove screws.
  2. Pull back to your side, and disconnect metal clips.

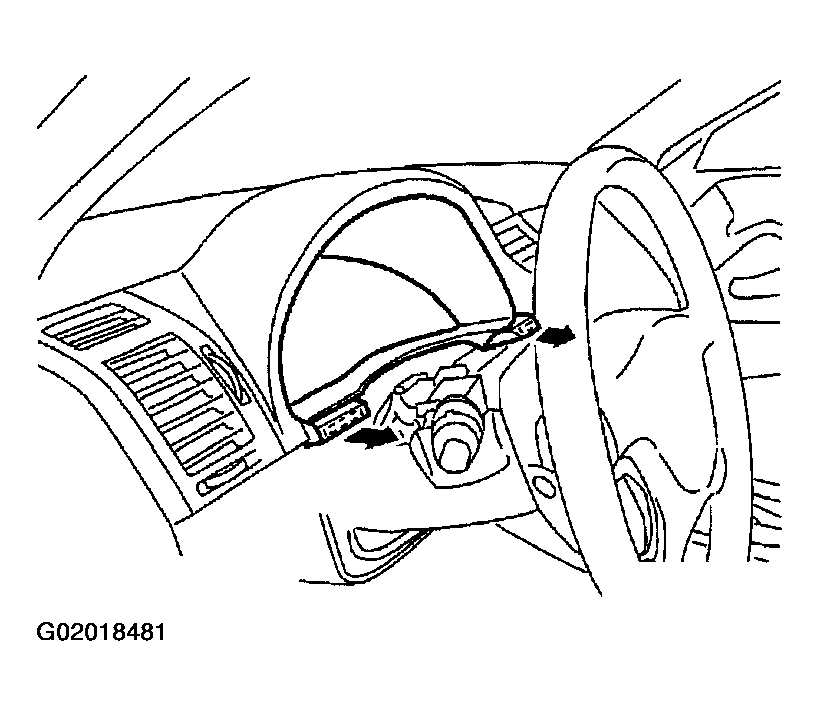

    Fig 1: Disconnecting Cluster Lid A Metal Clips
    G02018481Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Make upper and lower side narrower, and pull it back to your side.
  4. Remove as covering steering wheel.

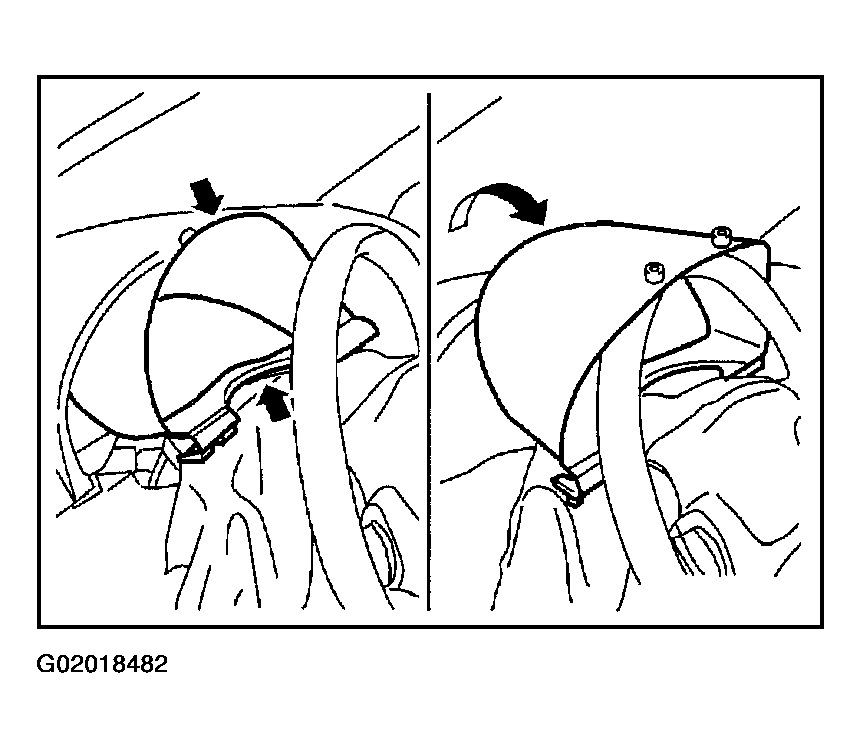

    Fig 2: Removing Cluster Lid A
    G02018482Courtesy of NISSAN MOTOR CO., U.S.A.
