A/T Finisher

  1. Open console lid and cup holder lid. Hold rear part of A/T finisher, lift it up, and disconnect metal clips at its rear end.
  2. Hold side of A/T finisher, and disconnect metal clips in front. Pull it backward, remove it, and disconnect connectors.

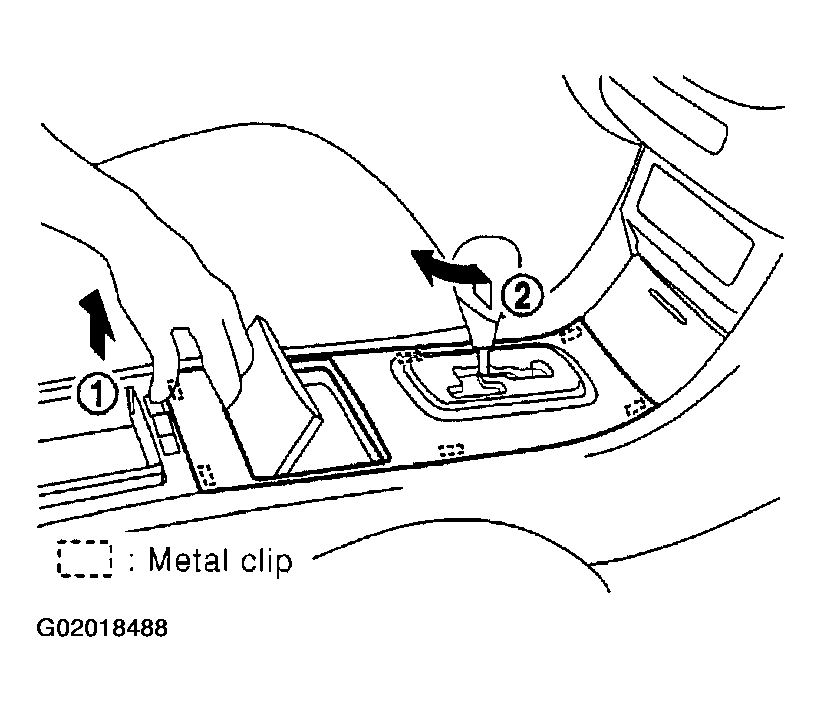

    Fig 1: Removing A/T Finisher
    G02018488Courtesy of NISSAN MOTOR CO., U.S.A.
