Instrument Panel: Notes

NOTE: For removal and installation of instrument panel, refer to exploded view illustration. See Fig 1 .

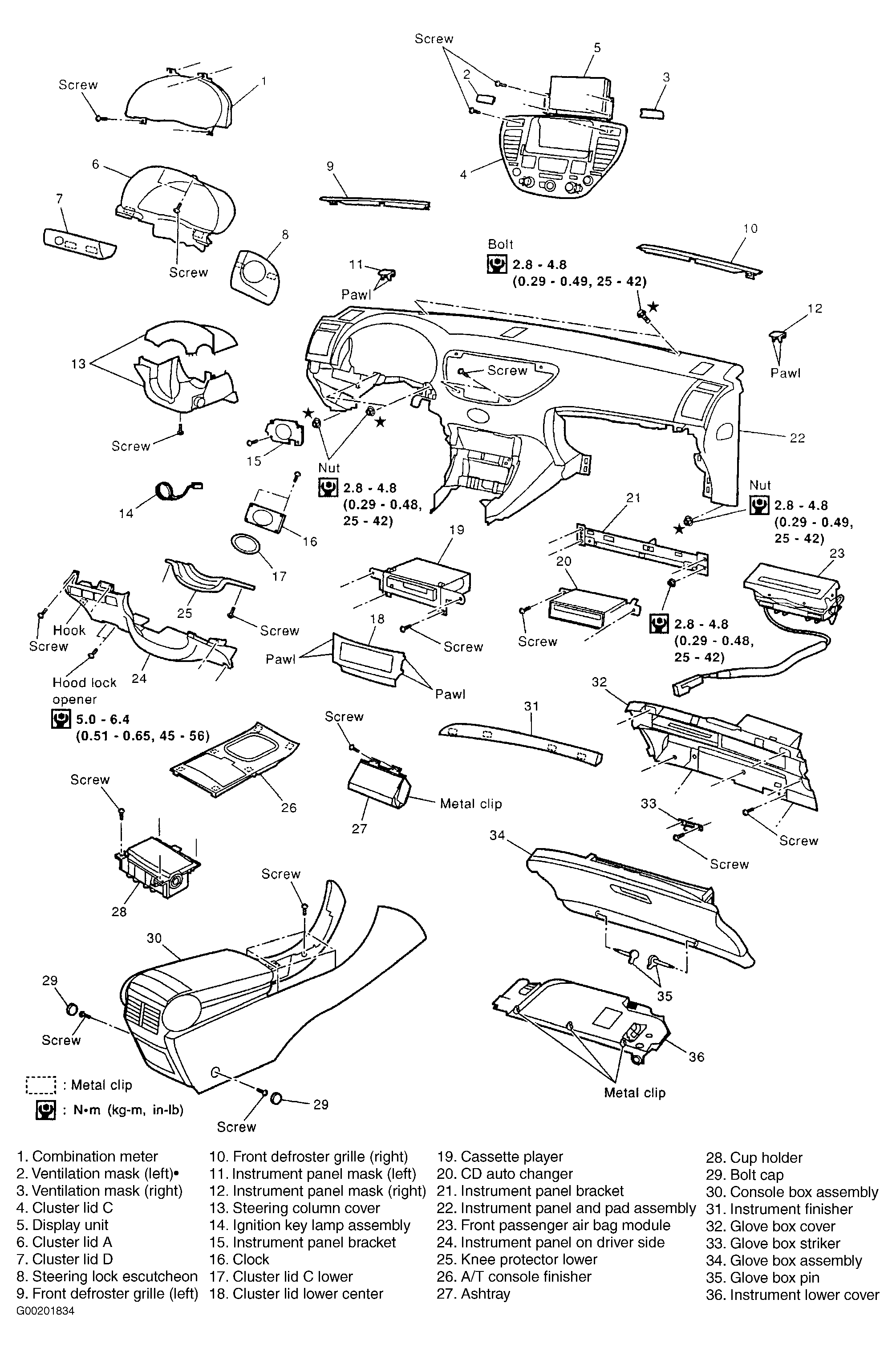

Fig 1: Exploded View Of Instrument Panel
G00201834Courtesy of NISSAN MOTOR CO., U.S.A.
