Instrument Lower Cover

  1. Push down front of instrument lower cover and disconnect metal clips. See Fig 1 .
  2. Pull horizontally, and remove from lower cover clips.
    CAUTION: Remove connectors of air bag (as connected) from instrument lower cover.

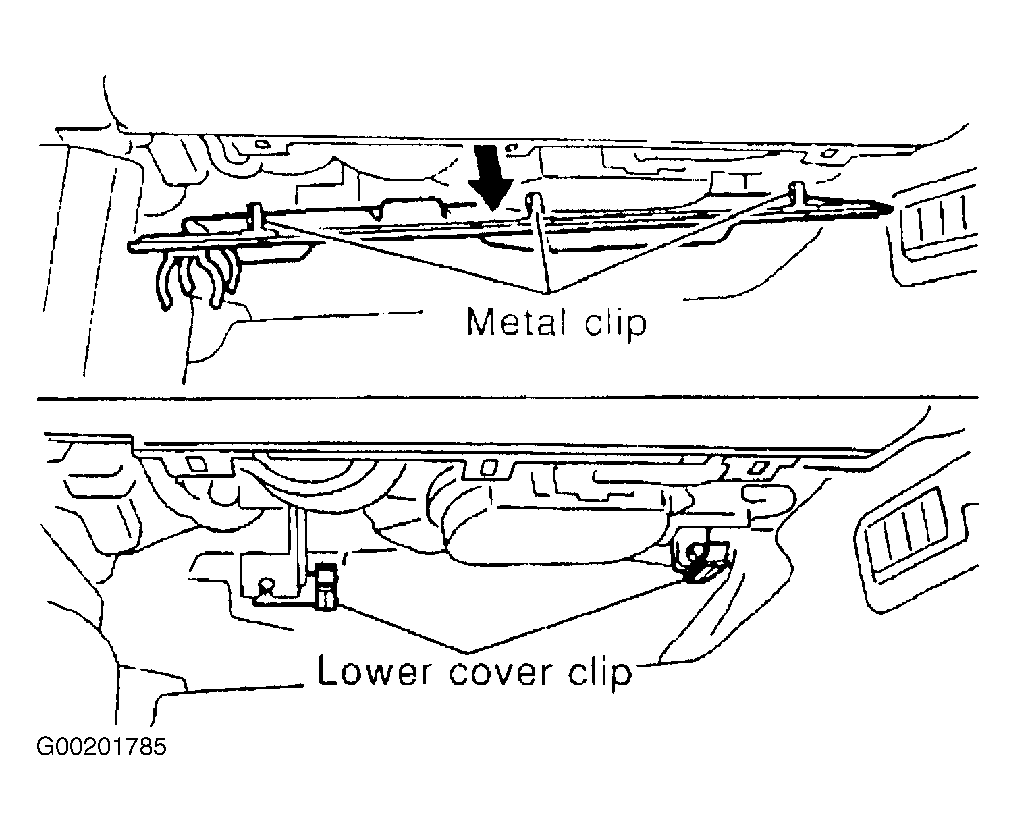

    Fig 1: Removing Instrument Lower Cover
    G00201785Courtesy of NISSAN MOTOR CO., U.S.A.
