Glove Box Assembly

Pull clips of dumper to right side of vehicle and remove. See Fig 1 .

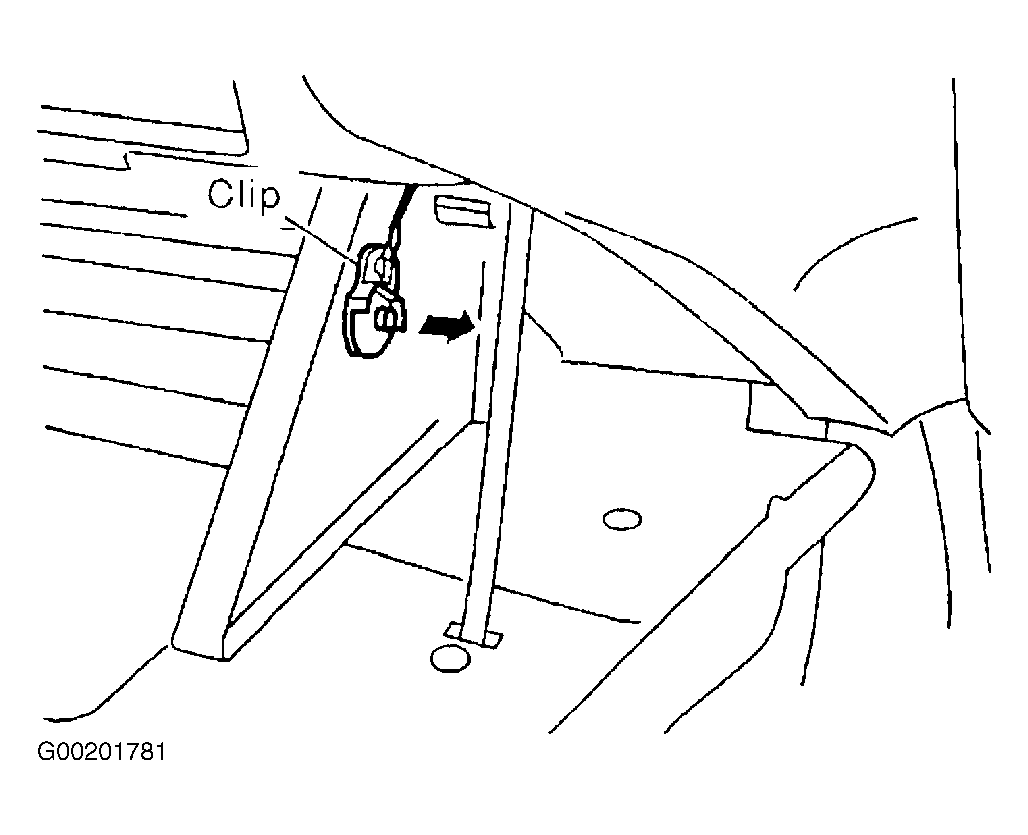

Fig 1: Removing Glove Box Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect clips of strap.
Remove glove box pins and remove glove box. See Fig 2 .

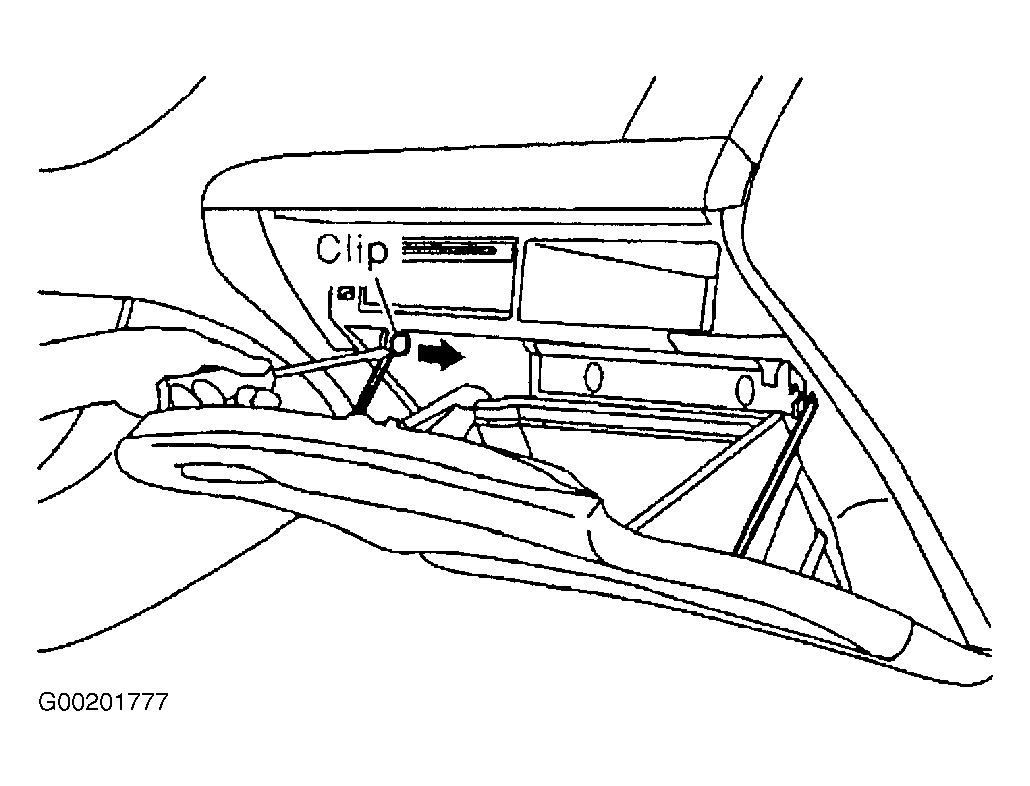

Fig 2: Removing Glove Box Pins
Courtesy of NISSAN MOTOR CO., U.S.A.
