Combination Meter

Remove screws with power tool and disconnect connectors. See Fig 1 .
Turn right part of meter to your side. Push to have front face meter up.
CAUTION: Cover meter with cloth to avoid contact with meter bracket that may cause scratches or damages.

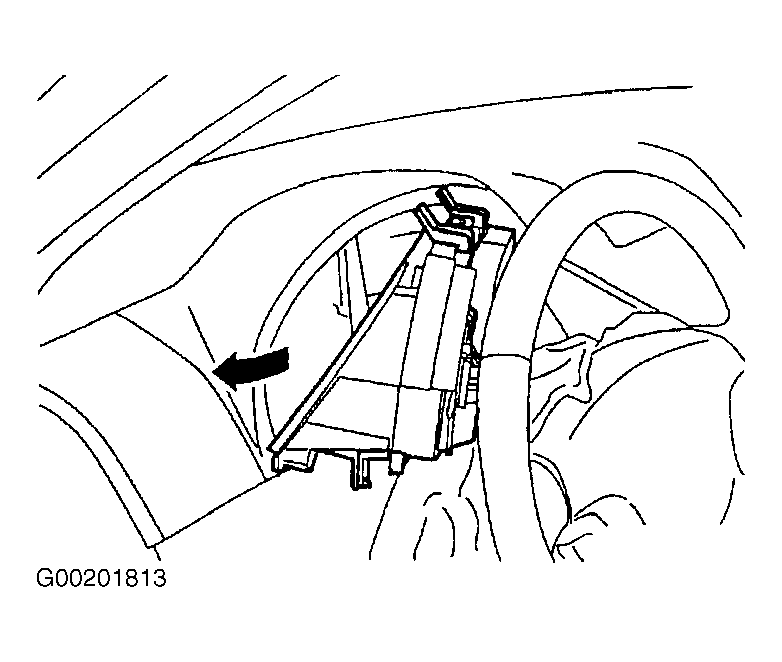

Fig 1: Covering Meter With Cloth
Courtesy of NISSAN MOTOR CO., U.S.A.
Pull meter to your side, then left side (confirm back of meter faces you). See Fig 2 .

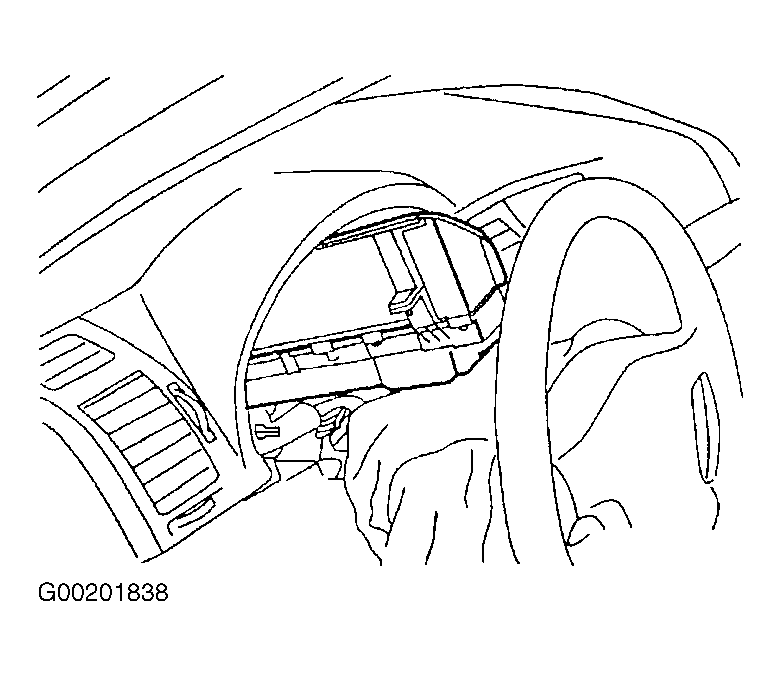

Fig 2: Pulling Meter
Courtesy of NISSAN MOTOR CO., U.S.A.
