Cluster Lid C

Remove ventilation mask and remove screws with power tool. See Fig 1 .

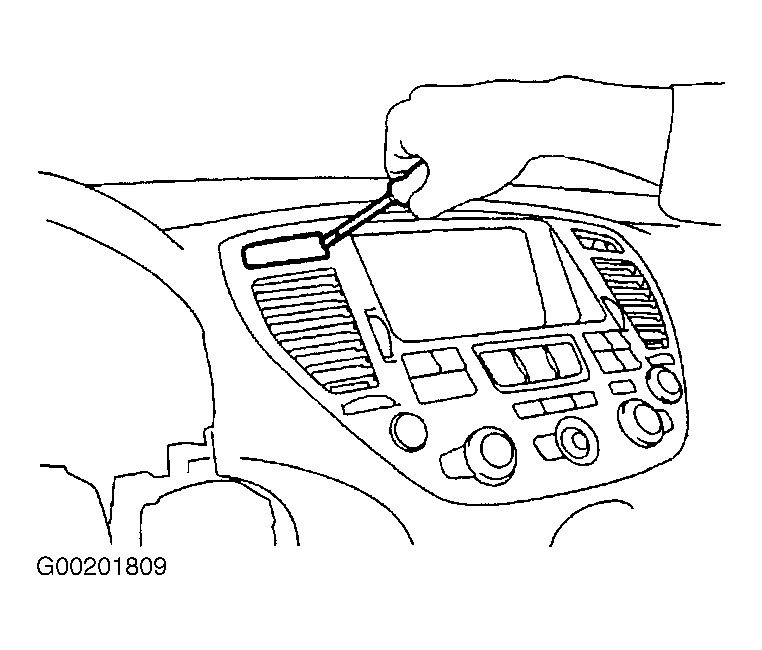

Fig 1: Removing Ventilation Mask
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert a cloth-covered screwdriver, or thin spatula into dip between instrument panel, pull back and disconnect metal clips below. See Fig 2 .

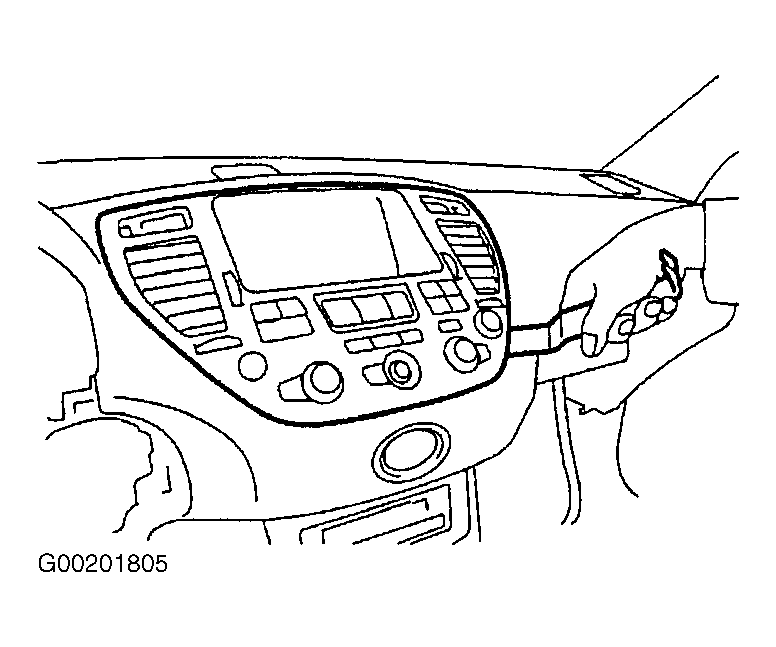

Fig 2: Removing Instrument Panels
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect connectors and remove.
CAUTION: Cover surroundings with cloth to avoid scratches or damages.
