Cluster Lid A

  1. Remove screws. See Fig 1 .

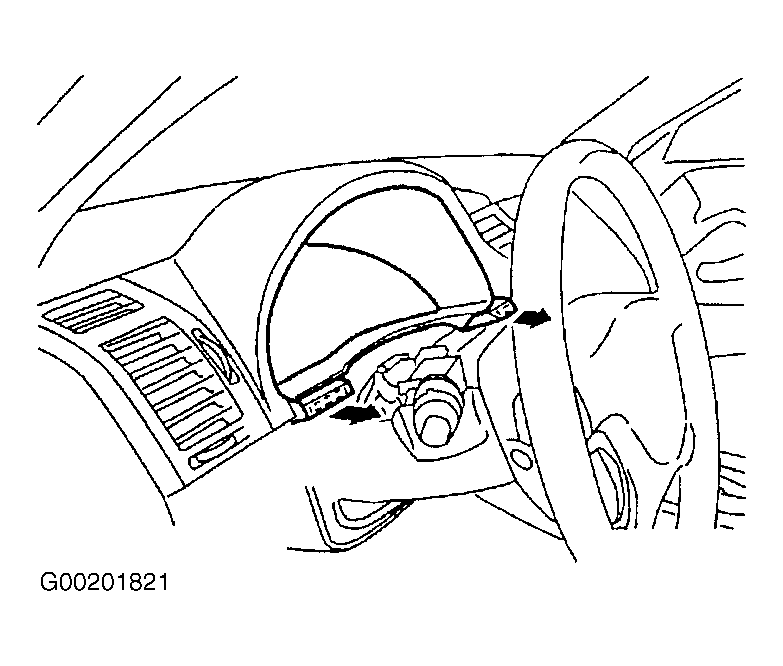

    Fig 1: Removing Cluster Lid A
    G00201821Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Pull and disconnect metal clips.
  3. Make upper and lower side narrower, and pull.
  4. Remove as covering steering wheel. See Fig 2 .

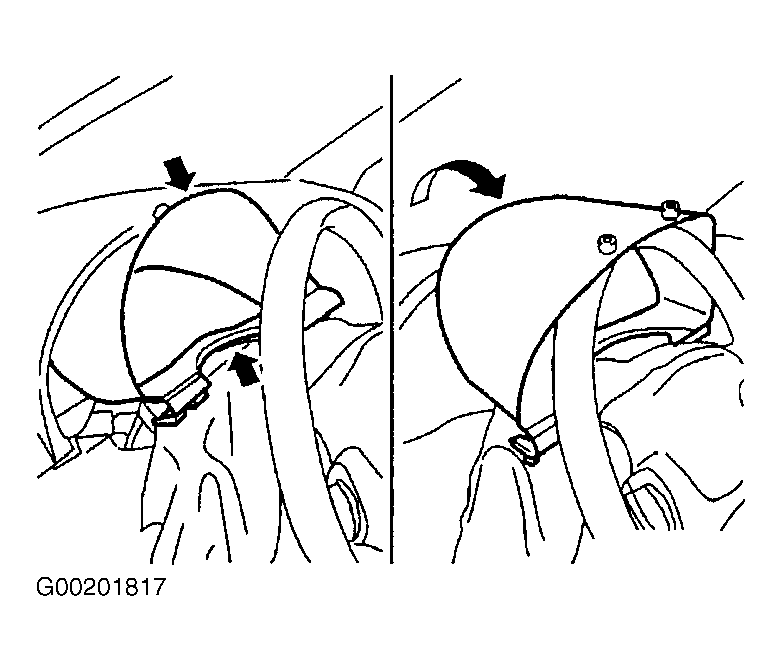

    Fig 2: Removing Cover on Steering Wheel
    G00201817Courtesy of NISSAN MOTOR CO., U.S.A.
