A/T Finisher

  1. Open console lid and cup holder lid. Hold rear part of A/T finisher, lift up, then disconnect metal clips at its rear end. See Fig 1 .
  2. Hold side of A/T finisher, and disconnect metal clips in front. Pull backward, remove and disconnect connectors.

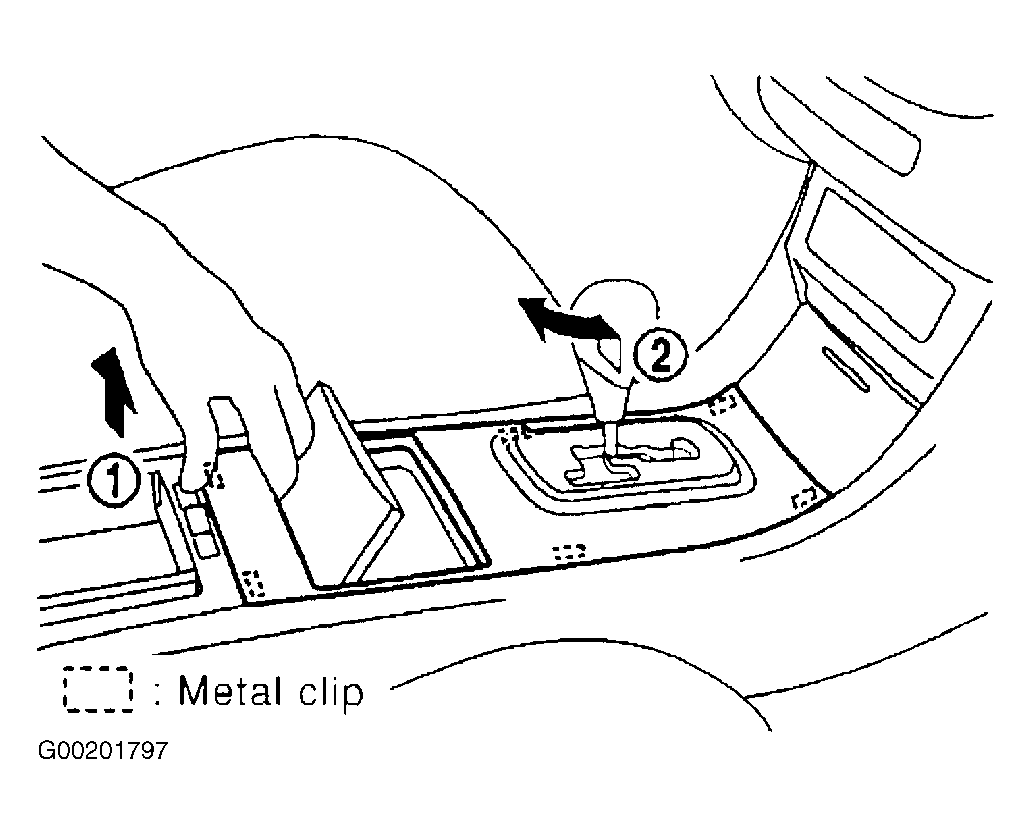

    Fig 1: Holding A/T Finisher To Disconnect
    G00201797Courtesy of NISSAN MOTOR CO., U.S.A.
