Coolant Temperature Sending Unit

Disconnect coolant temperature sending unit harness connector. See Fig 2 . Measure resistance between ground and coolant temperature sending unit terminal at indicated temperatures. See ENGINE COOLANT TEMPERATURE SENSOR RESISTANCE table. If resistance is not as specified, replace coolant temperature sending unit.

ENGINE COOLANT TEMPERATURE SENSOR RESISTANCE

Temperature - °F (°C)

⁽¹⁾ Ohms

68 (20)

2100-2900

122 (50)

680-1000

194 (90)

236-260

⁽¹⁾	Resistance should decrease as temperature increases. See Fig 1 .

Fig 1: Checking Temperature Sensor Resistance

Courtesy of NISSAN MOTOR CO., U.S.A.

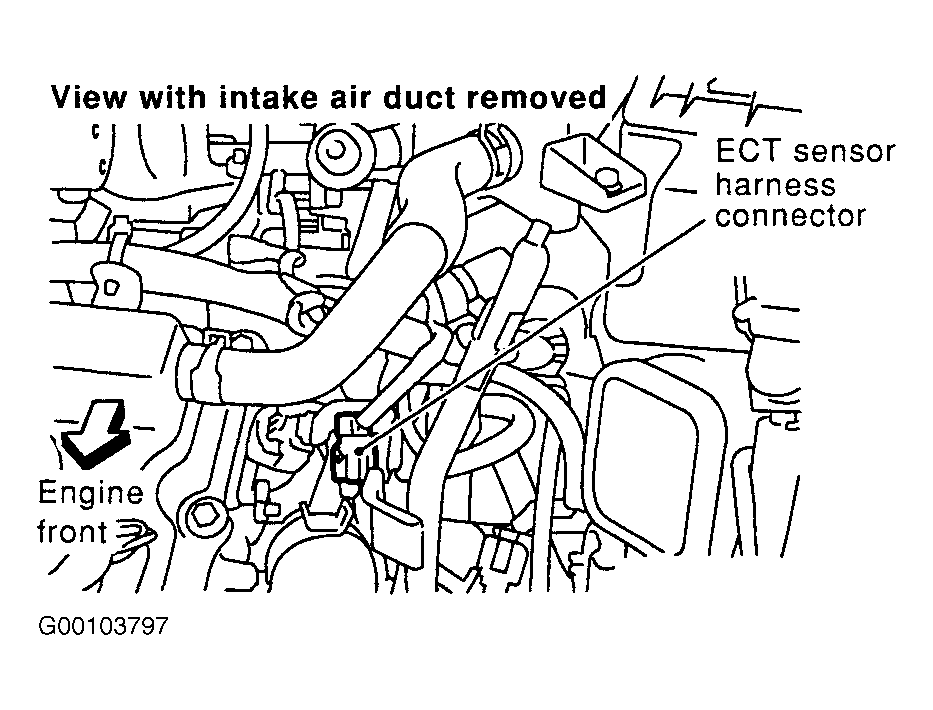

Fig 2: Locating ECT Sensor Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.
