Wind Deflector

  1. Open lid.
  2. Check visually for proper installation.
  3. Check to ensure a proper amount of petroleum jelly has been applied to wind deflector connection points; apply if necessary.

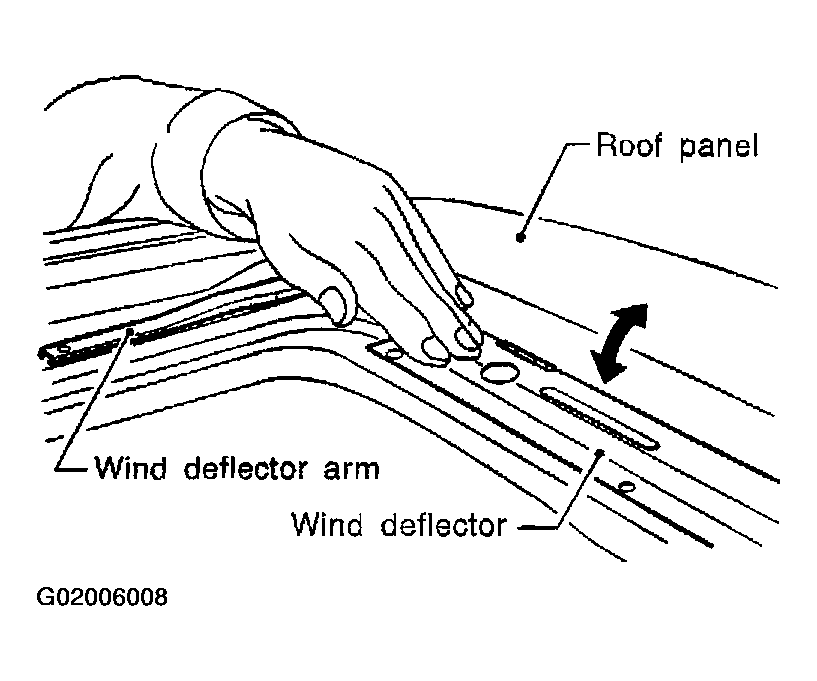

    Fig 1: Checking Wind Deflector
    G02006008Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check that wind deflector is properly retracted by hand. If it is not, remove and visually check condition. (Refer to REMOVAL  .) If wind deflector is damaged, replace with new one. If wind deflector is not damaged, re-install properly.

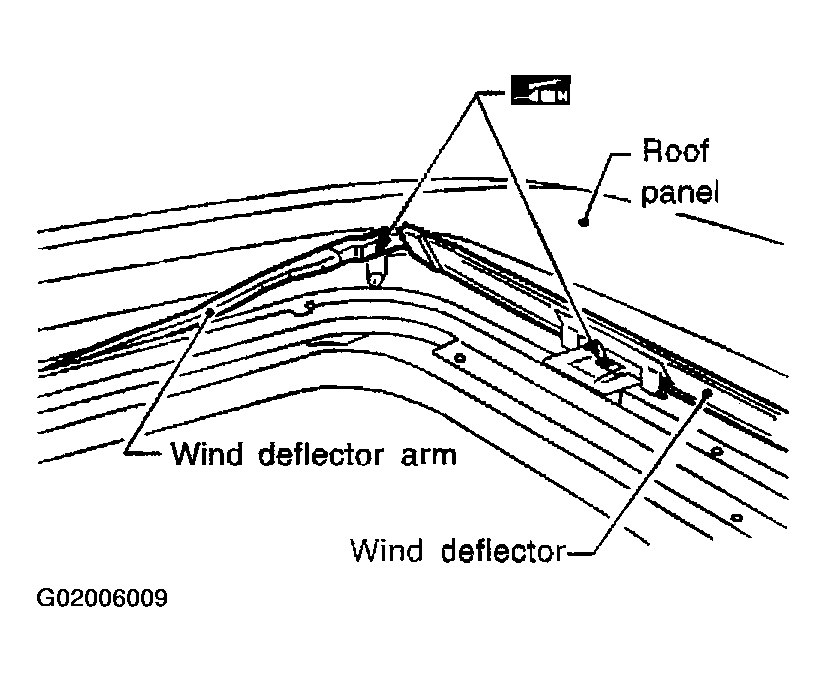

    Fig 2: Applying Petroleum Jelly To Wind Deflector Connection Points
    G02006009Courtesy of NISSAN MOTOR CO., U.S.A.
