Drain Hoses

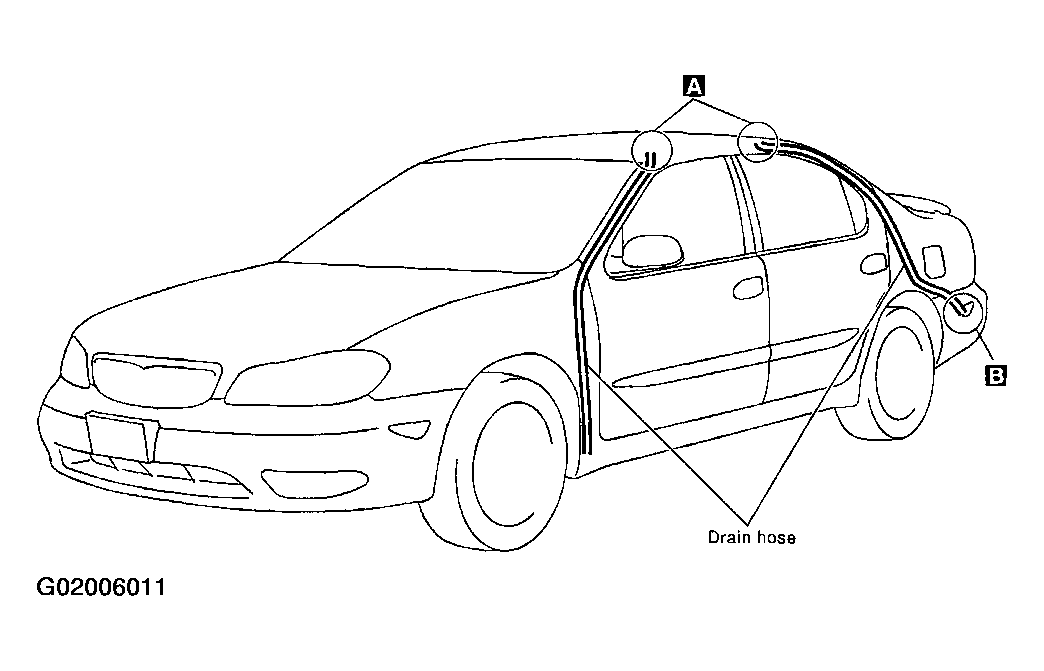

Fig 1: Locating Drain Hoses (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove headlining to access drain hose connections. (Refer to "ROOF TRIM ".)
Check visually for proper connections, damage or deterioration. A (The figure shows only the front side.)

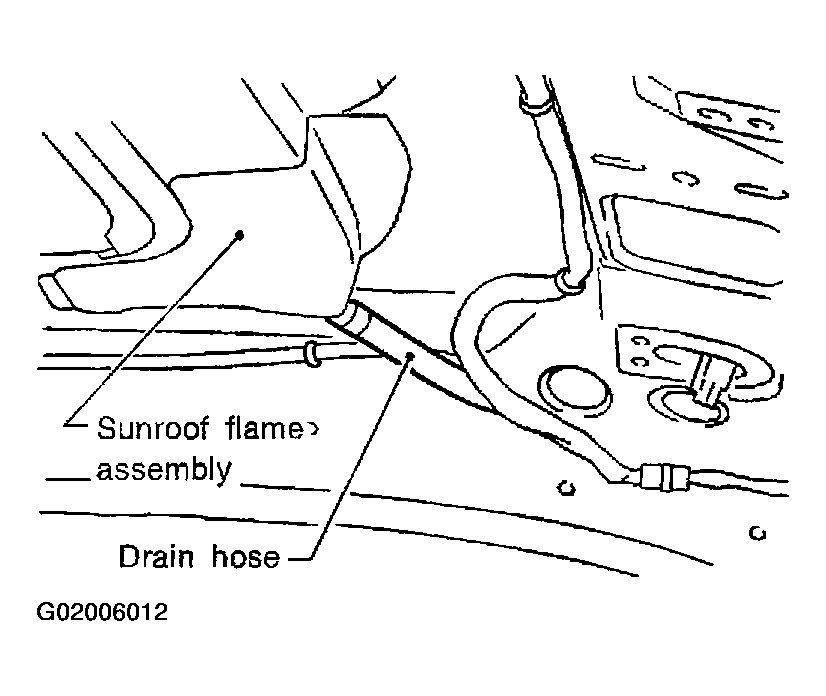

Fig 2: Locating Drain Hoses (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
If leakage occurs around luggage room, remove luggage room side trim and check connecting area. Check for proper connection, damage or tear. B
Remove drain hoses and check visually for any damage, cracks, or deterioration.
Pour water into drain hoses and find damaged portion.

If any damaged portion is found at each step, replace the damaged part.

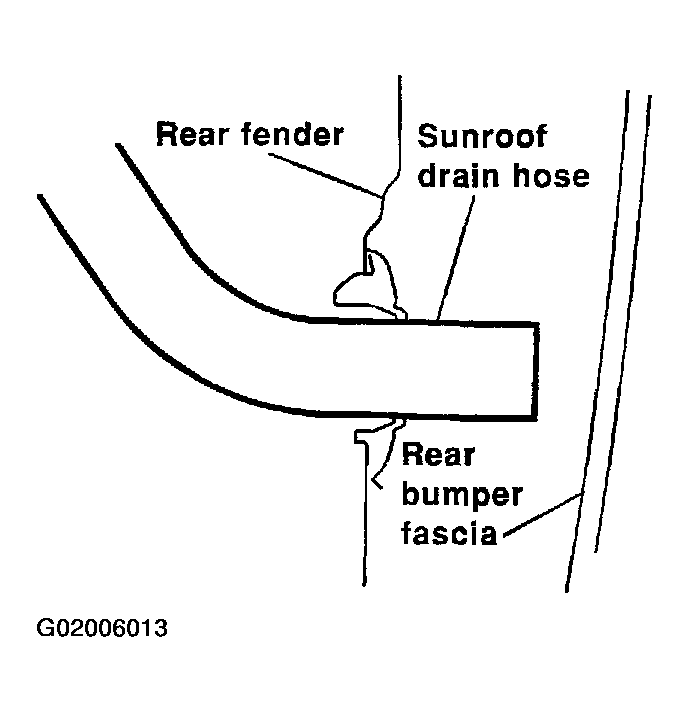

Fig 3: Locating Drain Hoses (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
