Diagnostic Table

NOTE: For diagnosing electric problem, refer to POWER SUN ROOFS article.

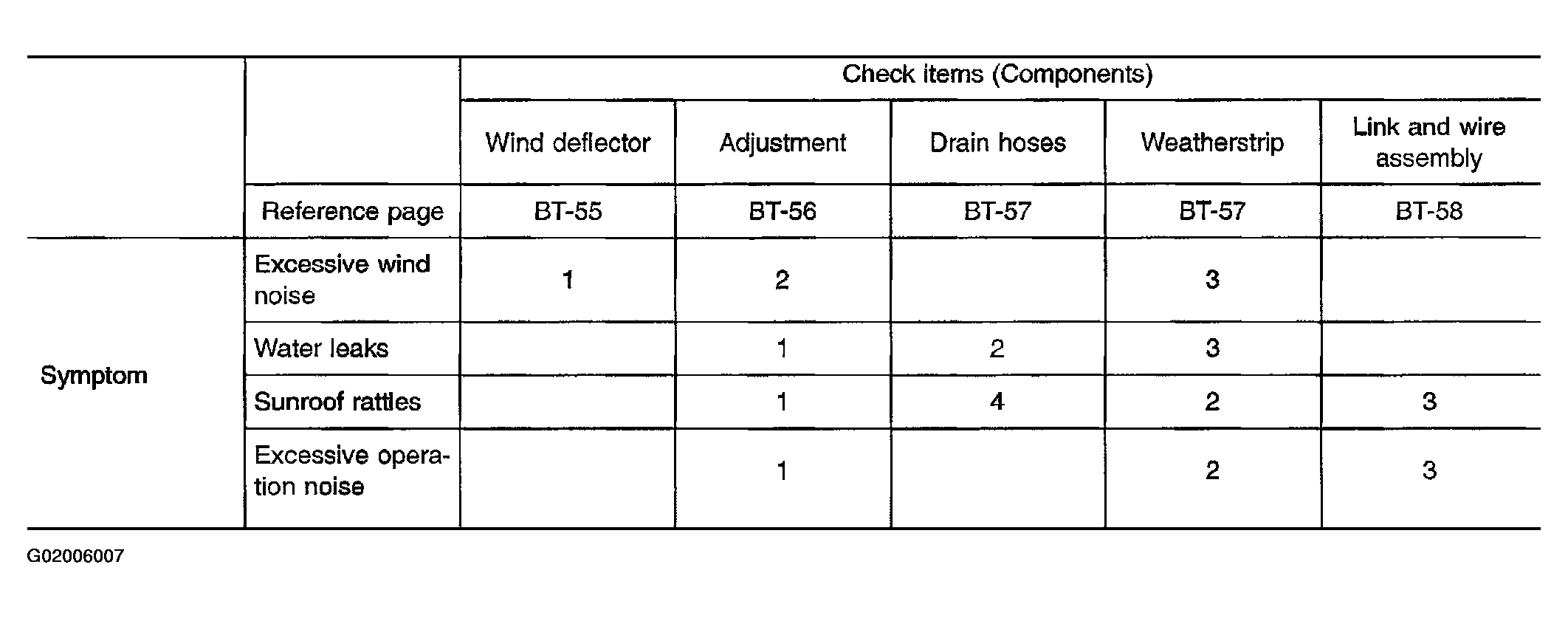

Fig 1: Sunroof System Diagnostic Table
G02006007Courtesy of NISSAN MOTOR CO., U.S.A.

The numbers in this table mean checking order.
