Removal and Installation

CAUTION:
  • Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
  • When removing or installing body side welts, do not allow butyl seal to come in contact with pillar garnish.
  1. Remove front and rear seats. Refer to "FRONT SEAT  " and "REAR SEAT  ".
  2. Remove front and rear seat belts. Refer to "Front Seat Belt " and "Rear Seat Belt article.
  3. Remove front and rear outer kicking plates. B D
  4. Remove front and rear inner kicking plates. B C D
  5. Remove dash side lower finisher. E
  6. Remove front and rear body side welts.
  7. Remove front pillar garnishes. F
  8. Remove center pillar upper garnishes. G
  9. Remove center pillar lower garnishes. G H
  10. Remove rear pillar garnishes. J
  11. Remove high-mounted stop lamp. (Model without rear air spoiler)
  12. Remove seatback center finisher.
  13. Remove seatback side finishers.
  14. Remove rear parcel shelf finisher. K L M N
  15. Remove instrument lower covers.
  16. Remove accelerator pedal stopper.
  17. Remove carpet hook.
  18. Remove floor carpet.

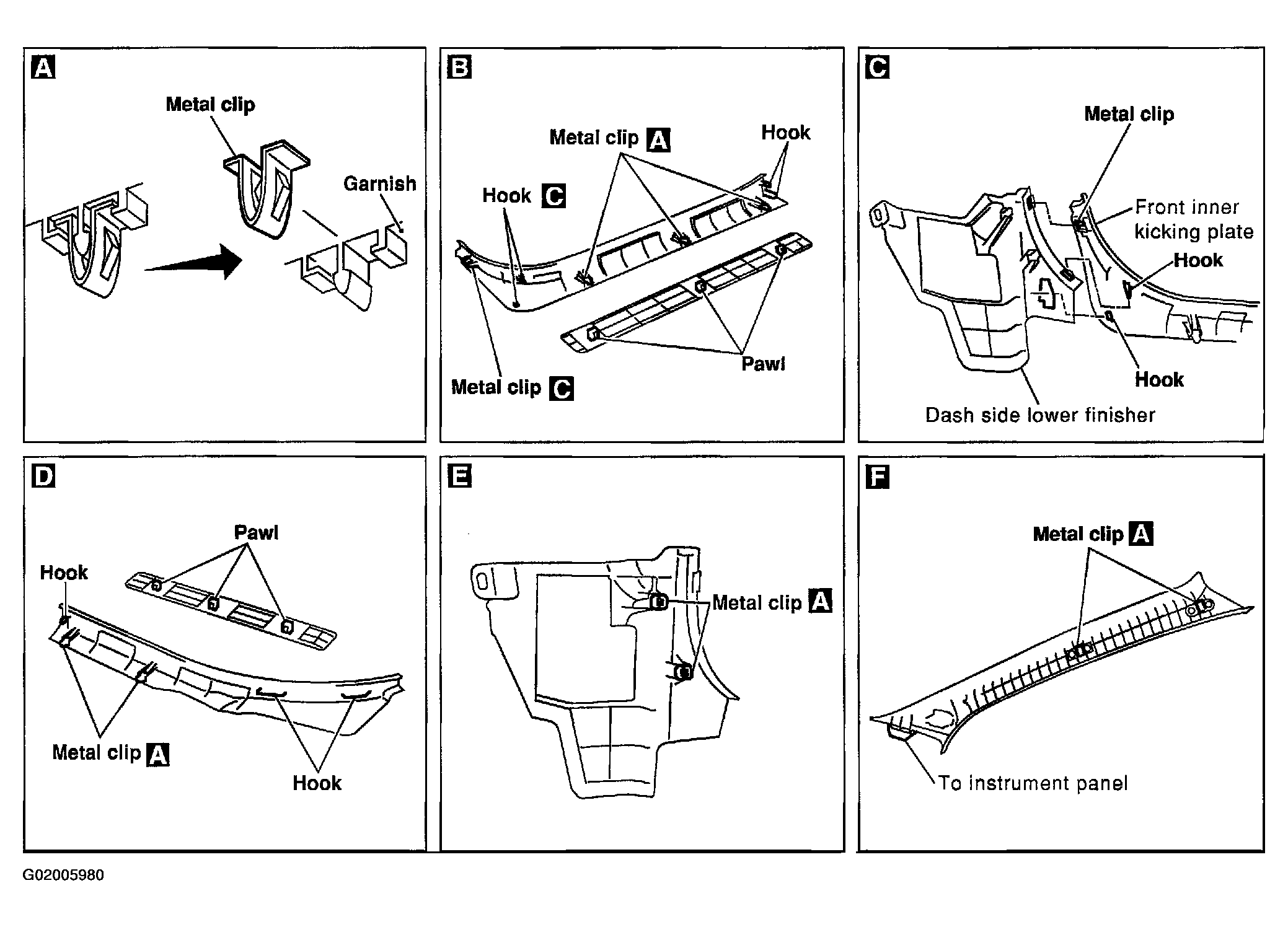

    Fig 1: Removing And Installing Side And Floor Trim (1 Of 3)
    G02005980Courtesy of NISSAN MOTOR CO., U.S.A.

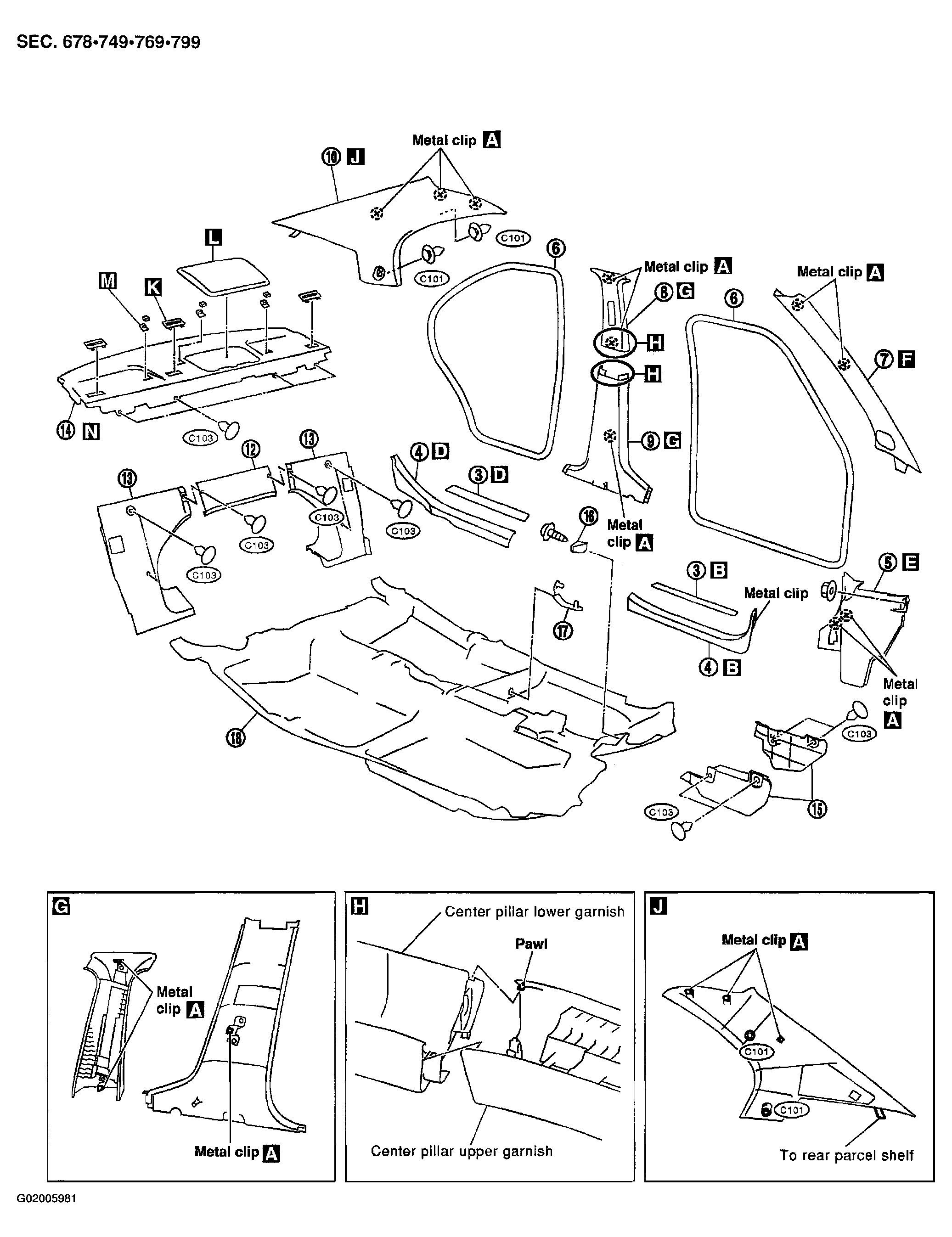

    Fig 2: Removing And Installing Side And Floor Trim (2 Of 3)
    G02005981Courtesy of NISSAN MOTOR CO., U.S.A.

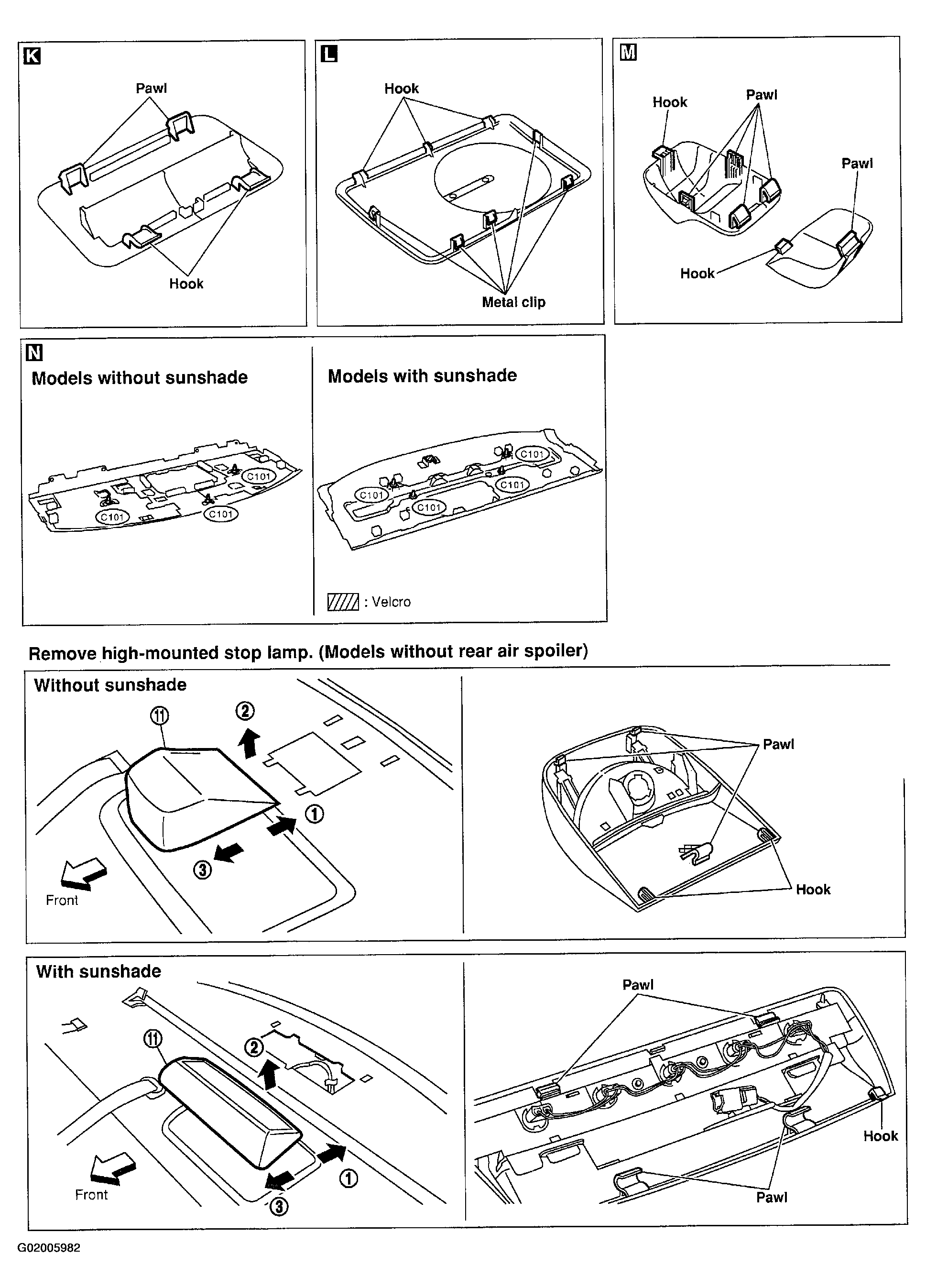

    Fig 3: Removing And Installing Side And Floor Trim (3 Of 3)
    G02005982Courtesy of NISSAN MOTOR CO., U.S.A.
