Removal and Installation

CAUTION:

Disconnect ground terminal from battery in advance.
Disconnect air bag system line in advance.
Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
Be careful not to scratch pad and other parts.

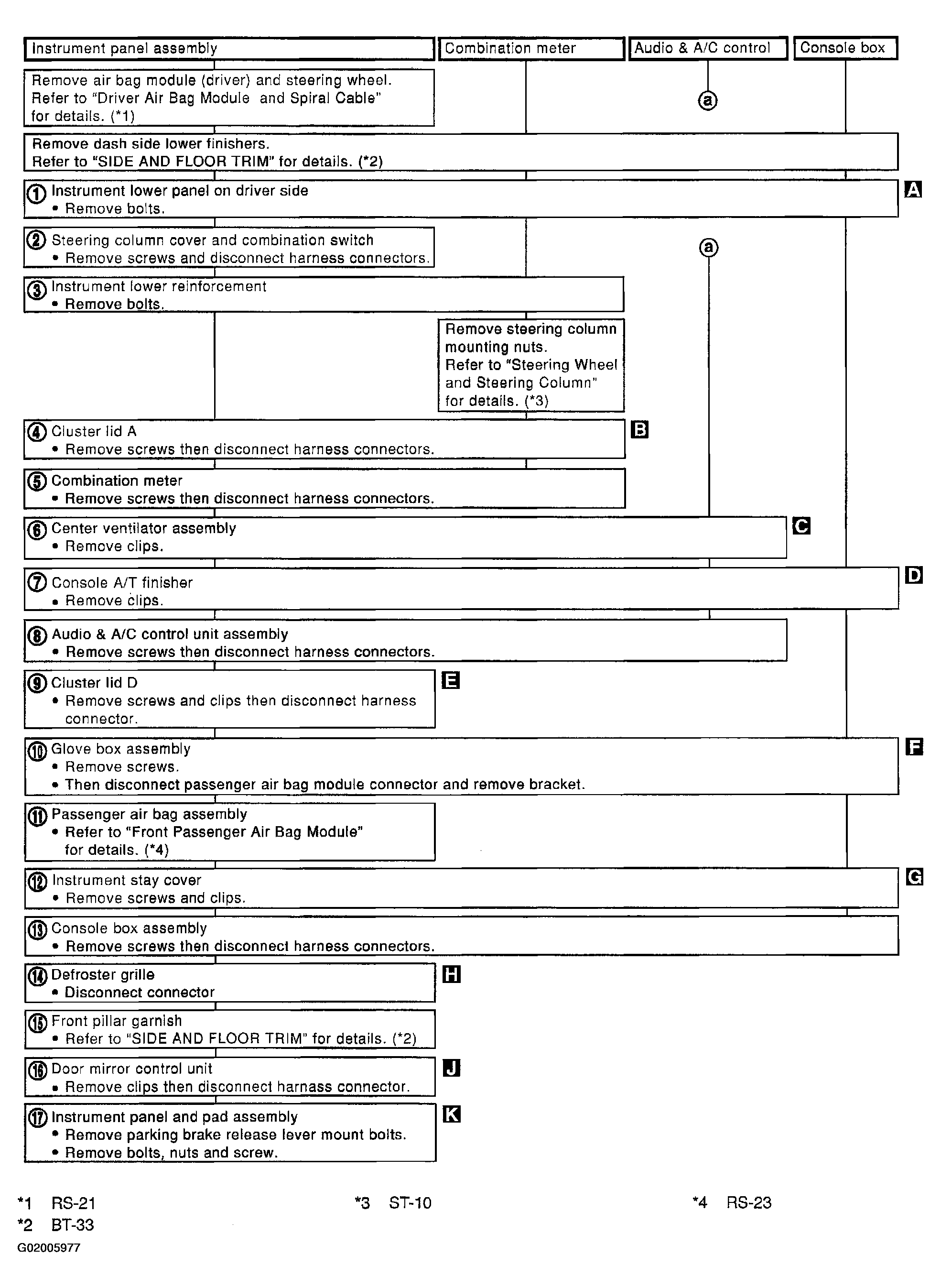

Fig 1: Identifying Instrument Panel Assembly Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

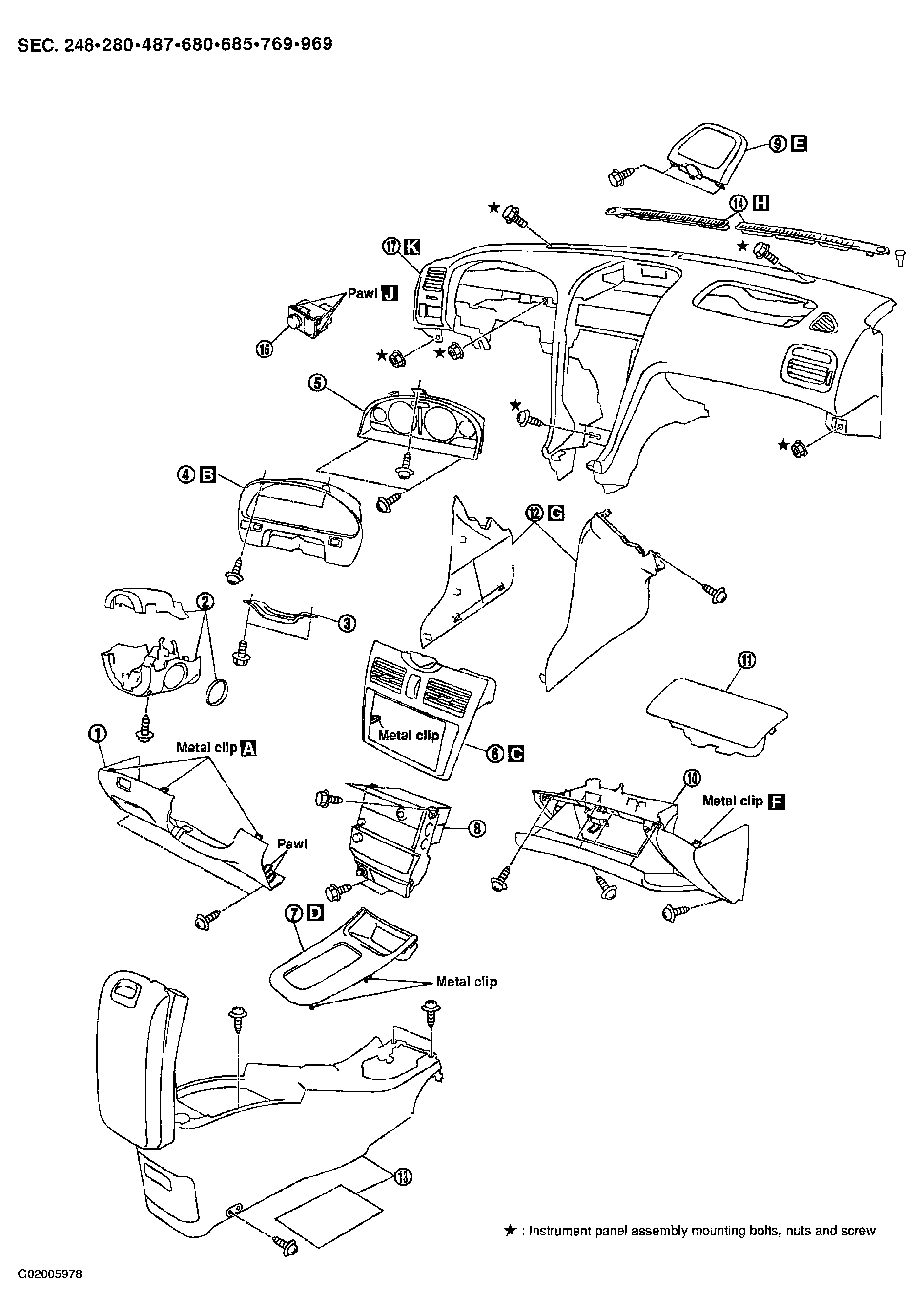

Fig 2: Removing And Installing Instrument Panel Assembly (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

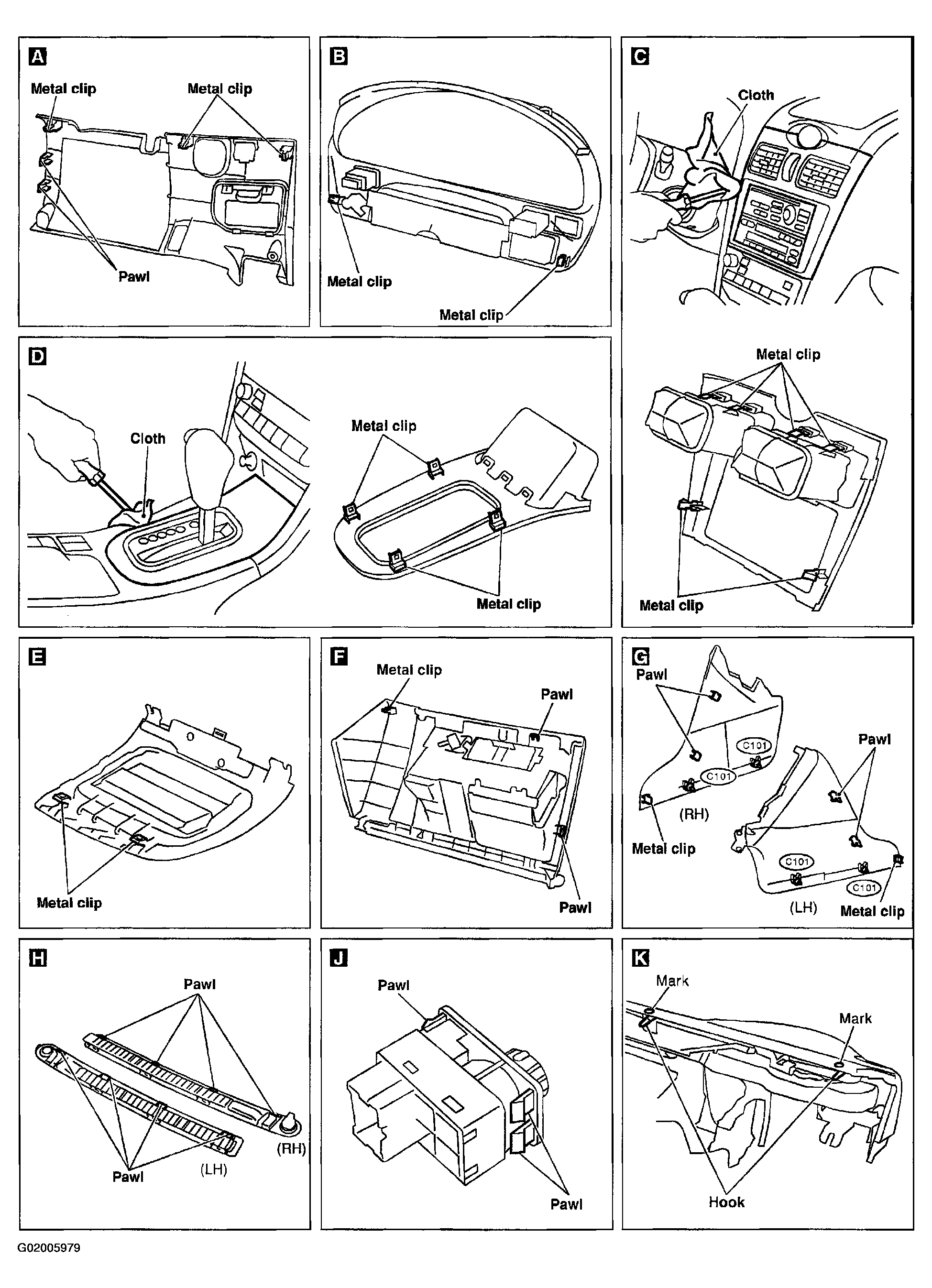

Fig 3: Removing And Installing Instrument Panel Assembly (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
