Removal and Installation

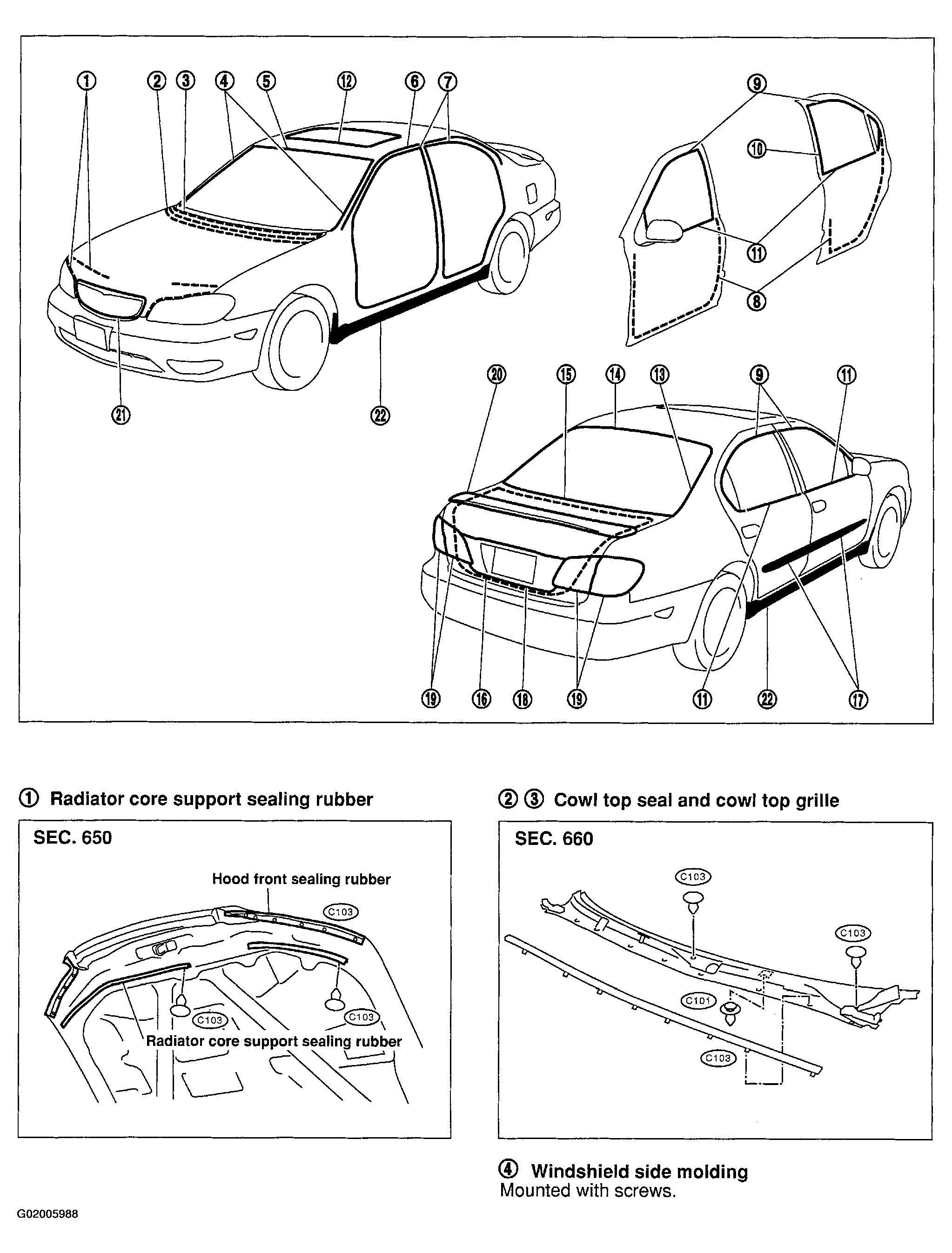

Fig 1: Removing And Installing Exterior Trim (1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

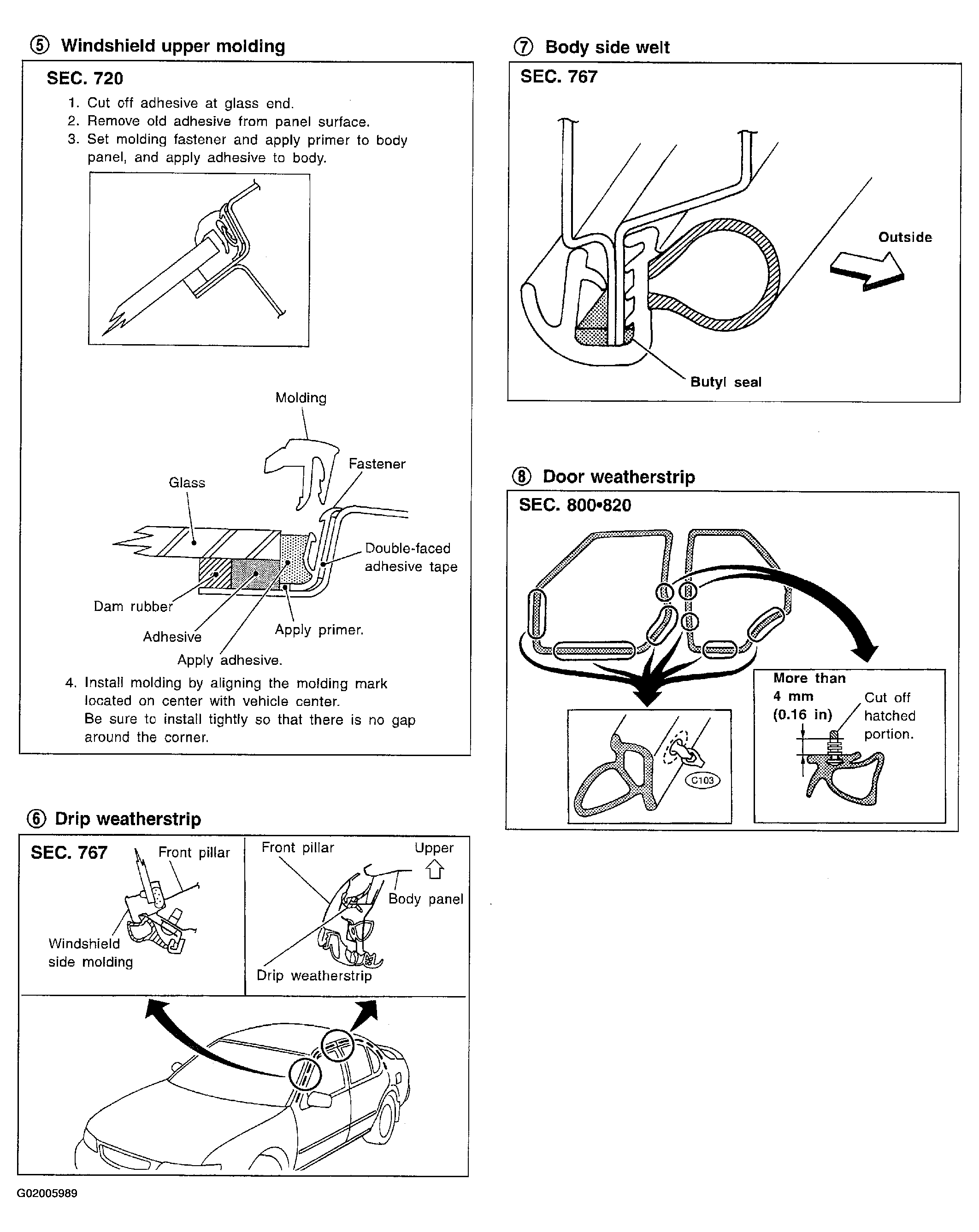

Fig 2: Removing And Installing Exterior Trim (2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

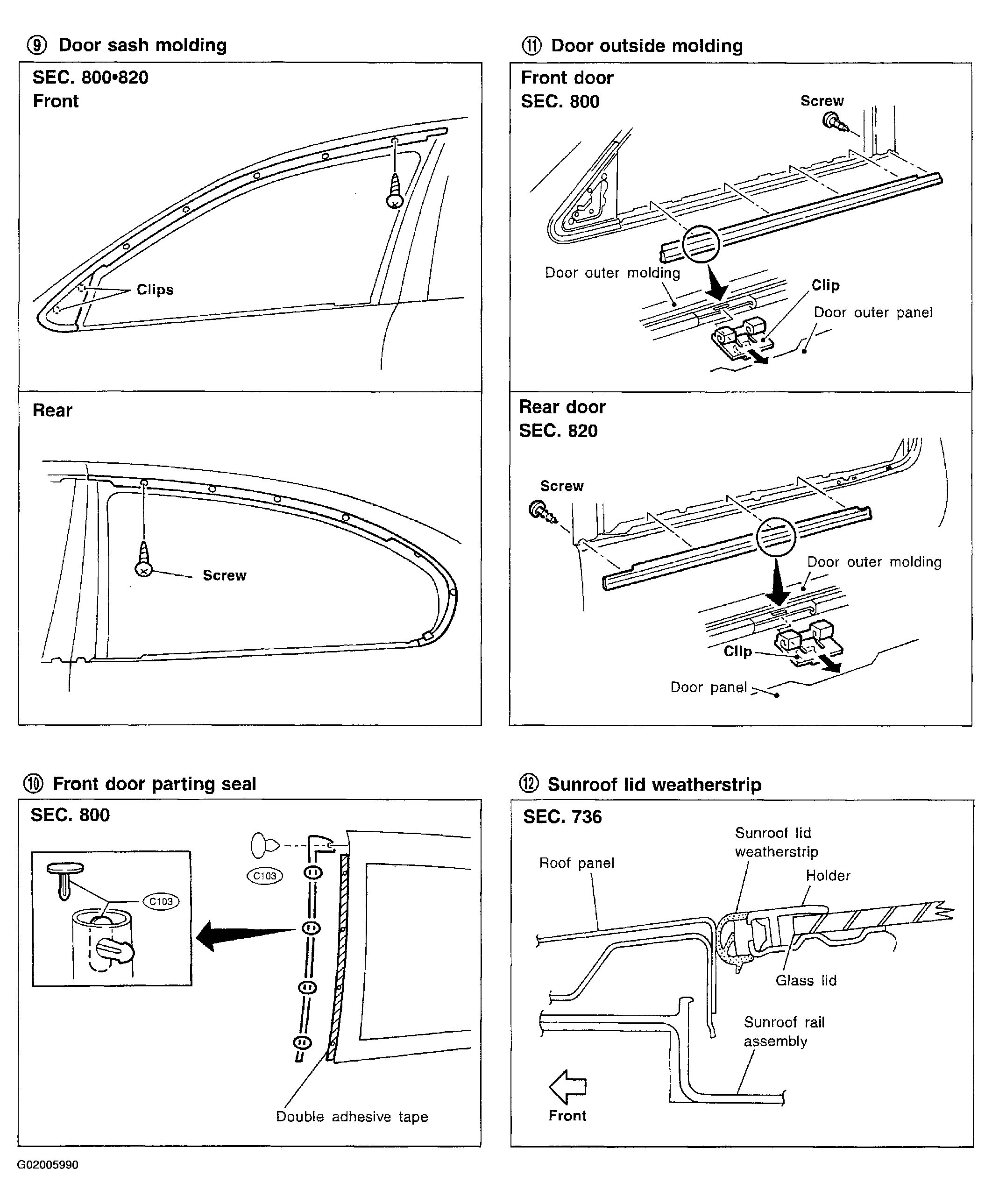

Fig 3: Removing And Installing Exterior Trim (3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

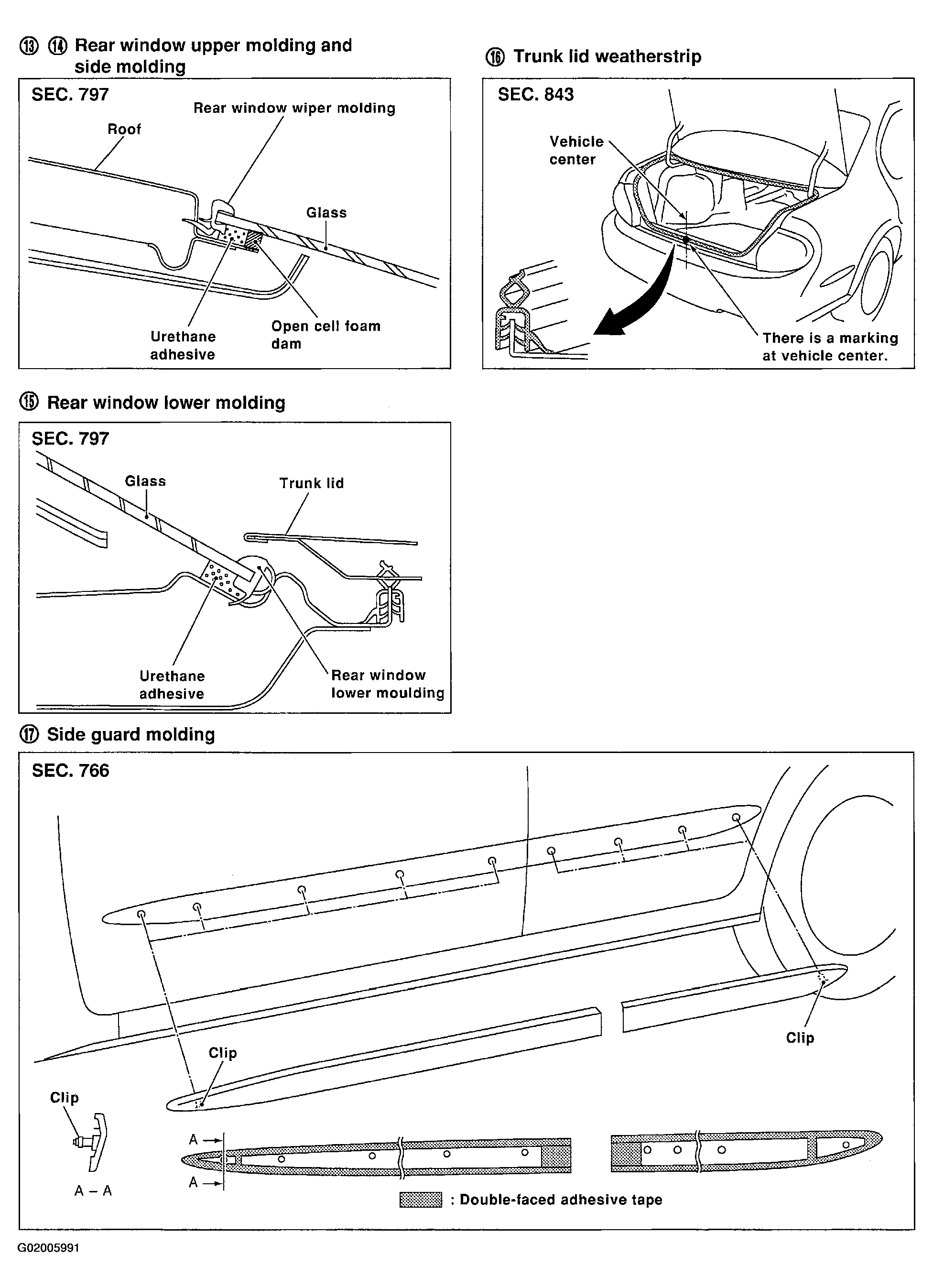

Fig 4: Removing And Installing Exterior Trim (4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Removing And Installing Exterior Trim (5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

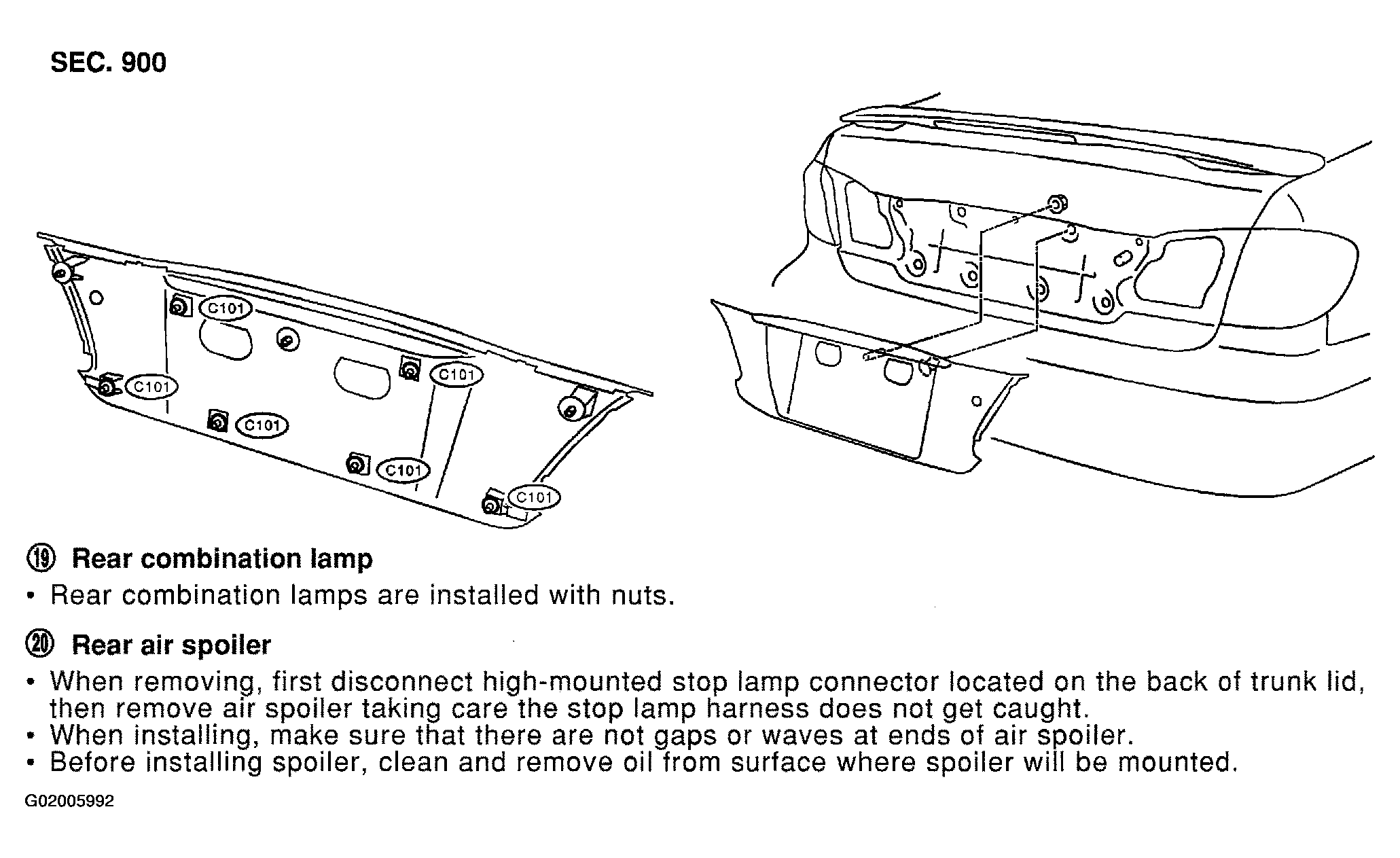

Fig 6: Removing And Installing Exterior Trim (6 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

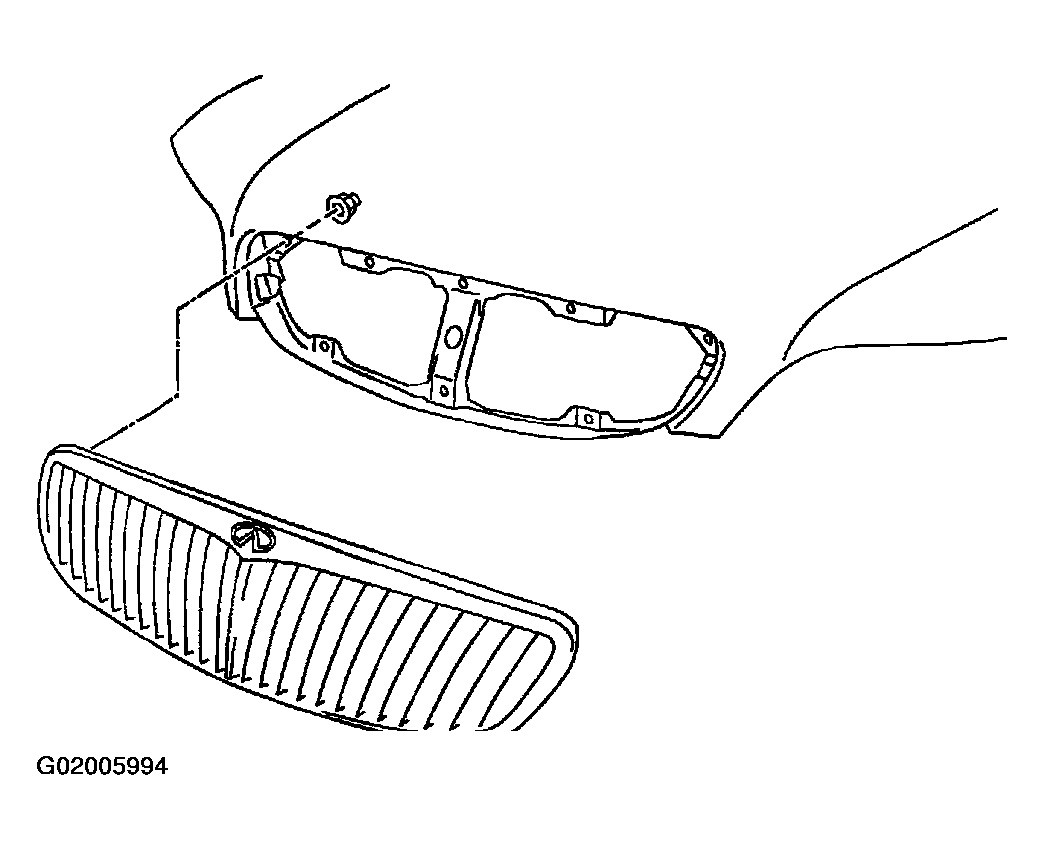

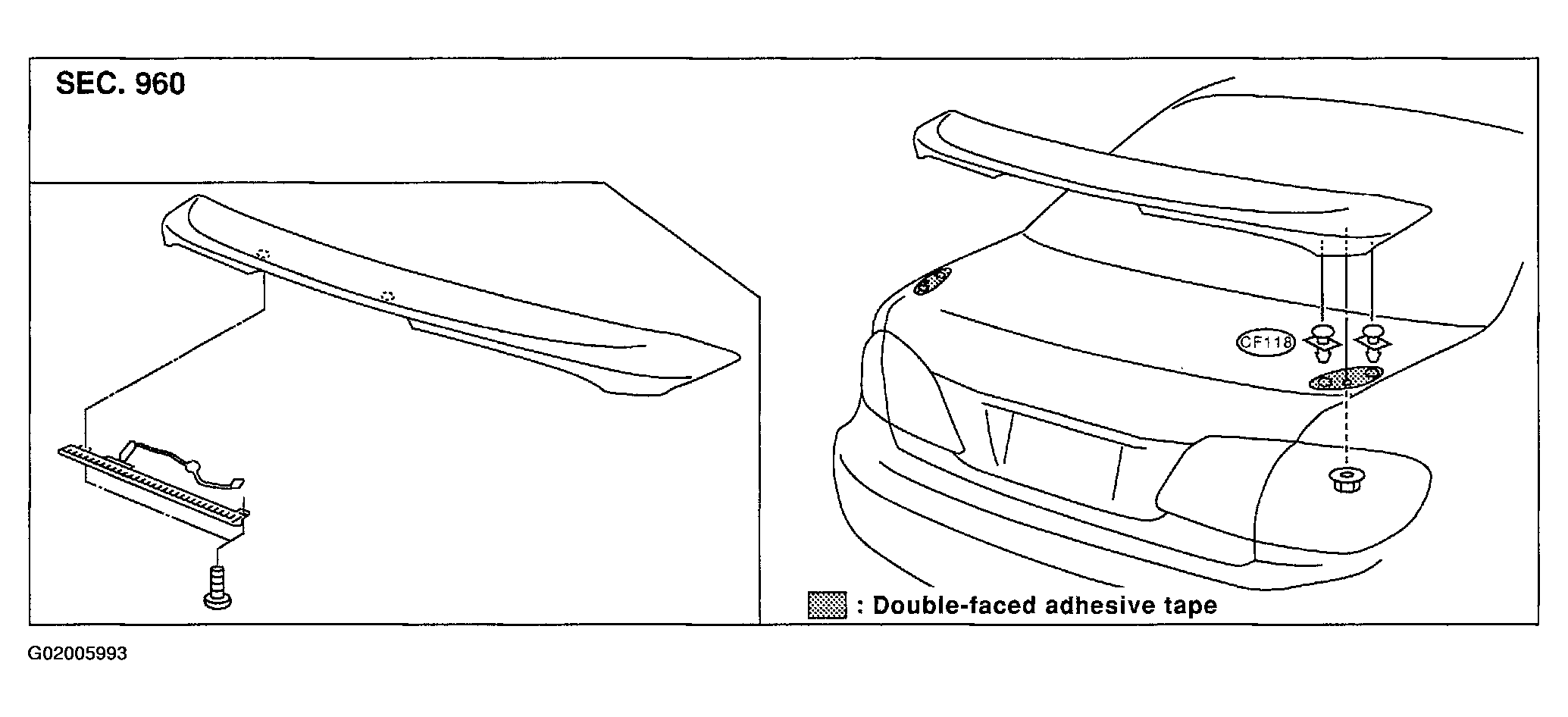

Fig 7: Removing And Installing Exterior Trim (7 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

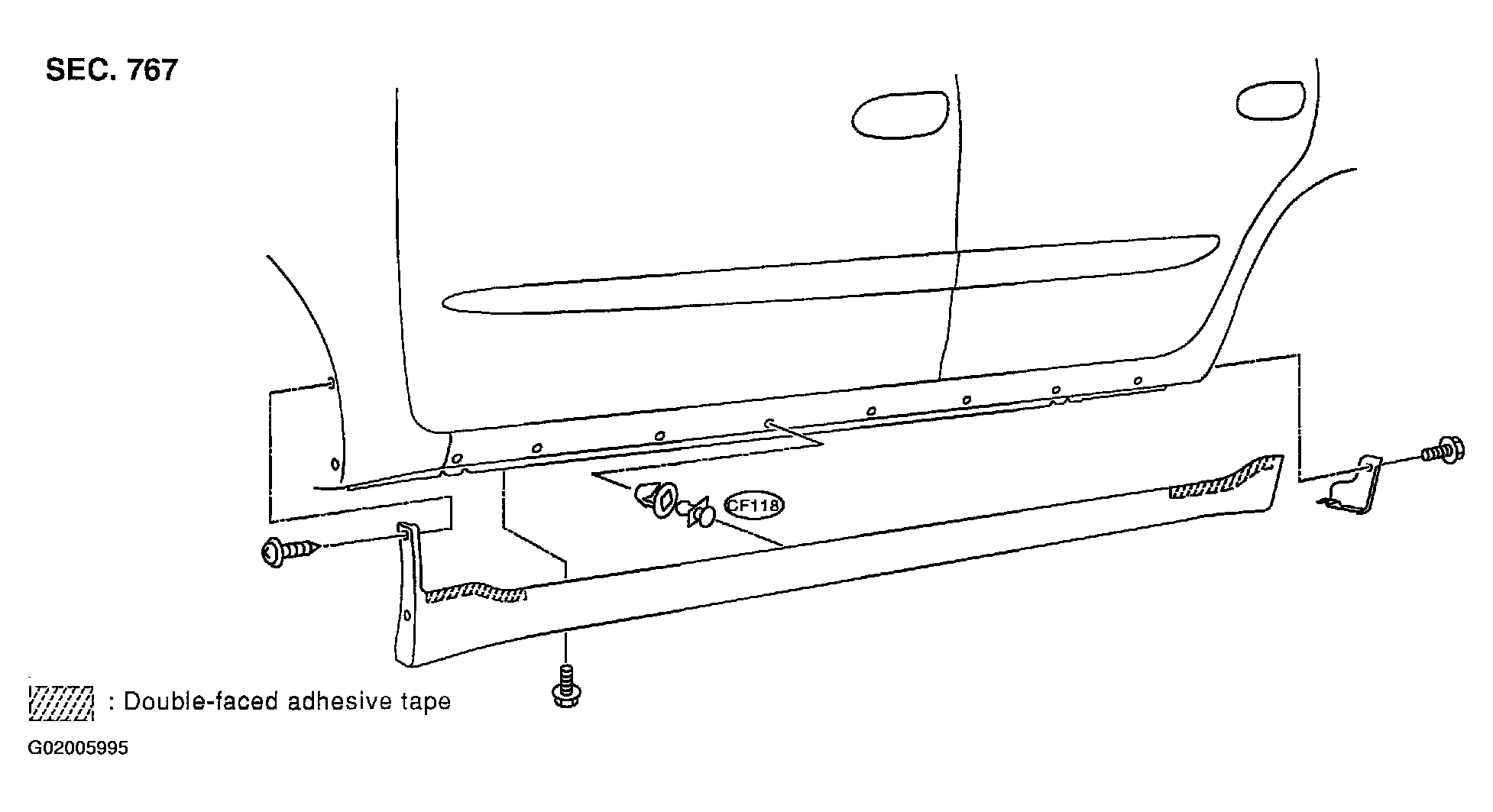

Fig 8: Removing And Installing Exterior Trim (8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

With a vehicle coated with Hard Clear Coat, use double-faced 3M adhesive tape Product No. 4210 or equivalent, after priming with 3M primer Product No. N-200 or C-100 or equivalent.
