Rear Door Lock: Removal
- For removal of rear door trim, refer to "DOOR TRIM
".
- Remove sealing screen.
- For removal of rear door glass, refer to "Rear Door Glass
".

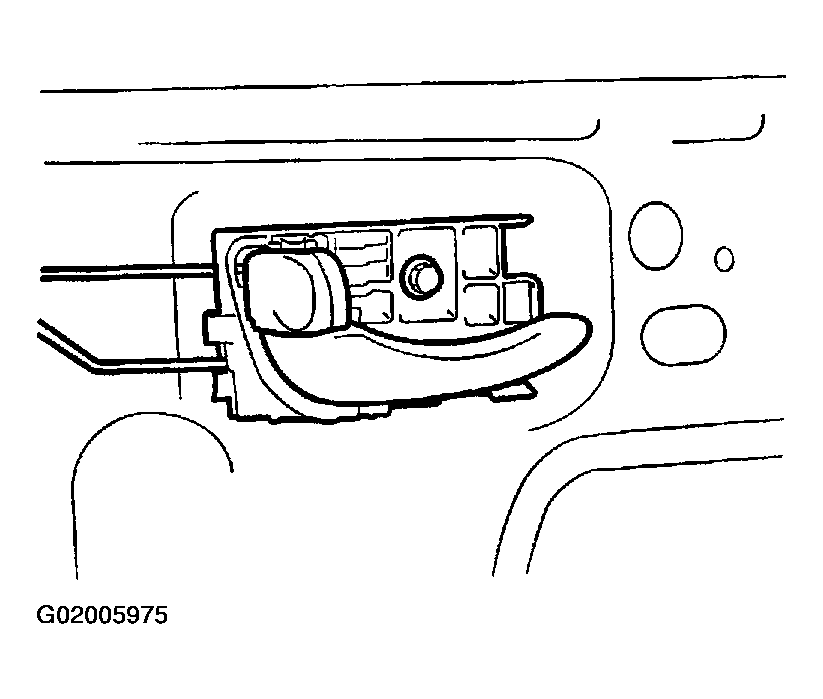

- Remove inside handle escutcheon A.
- Remove screw securing inside handle.
- Detach inside handle rod on the door lock assembly side.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Detach lock knob rod (on the door lock assembly side).

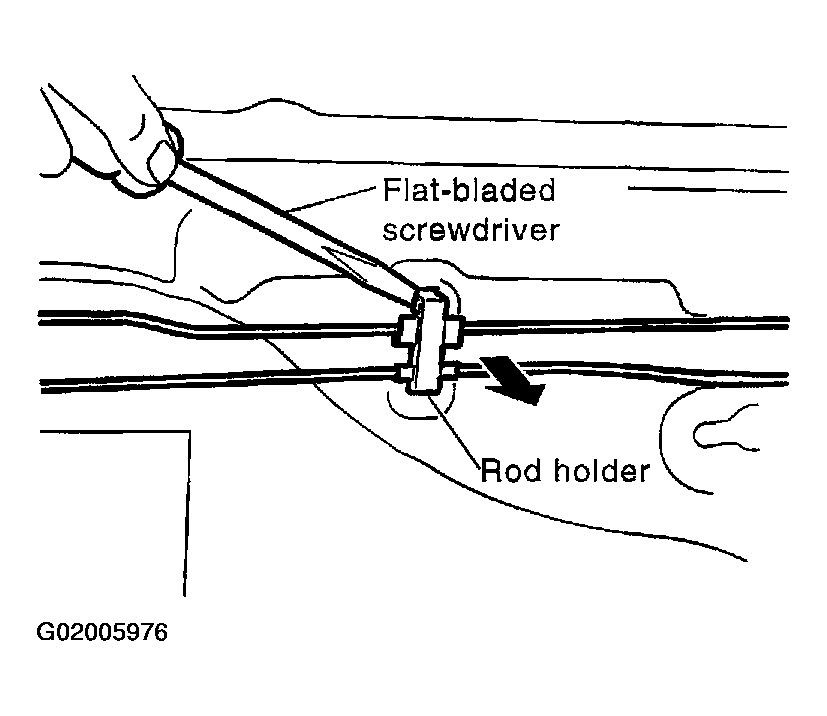

- Using a flat-bladed screwdriver, expand rod holder. Remove rod from rod holder.
- Slide inside handle backward and remove inside handle.
- Remove rod from inside handle.
- Disconnect door lock actuator connector.
- Remove screws securing door lock assembly, then remove door lock assembly.
- Remove bolts securing outside handle, then remove outside handle.
Courtesy of NISSAN MOTOR CO., U.S.A.
