Outside Handle Rod Adjustment

Rotate rod holder so that rod-to-holder clearance is adjusted as shown in the figure at left.

CAUTION: Make sure that rod-to-holder clearance is not "0" mm (0 in), and that rod is not held pressed.

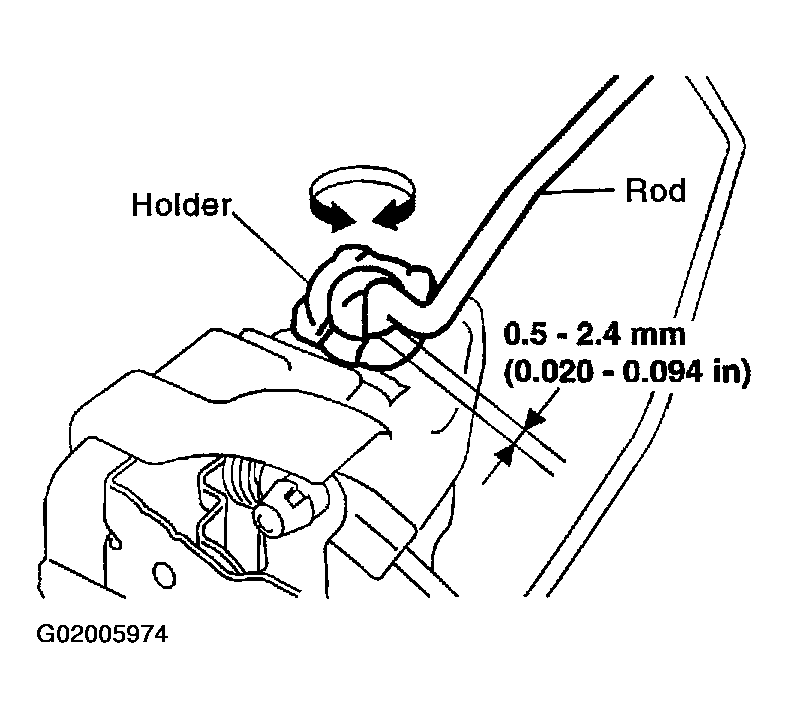

Fig 1: Removing Rear Door Lock System (2 Of 4)
G02005974Courtesy of NISSAN MOTOR CO., U.S.A.
