Rear Door Lock: Notes

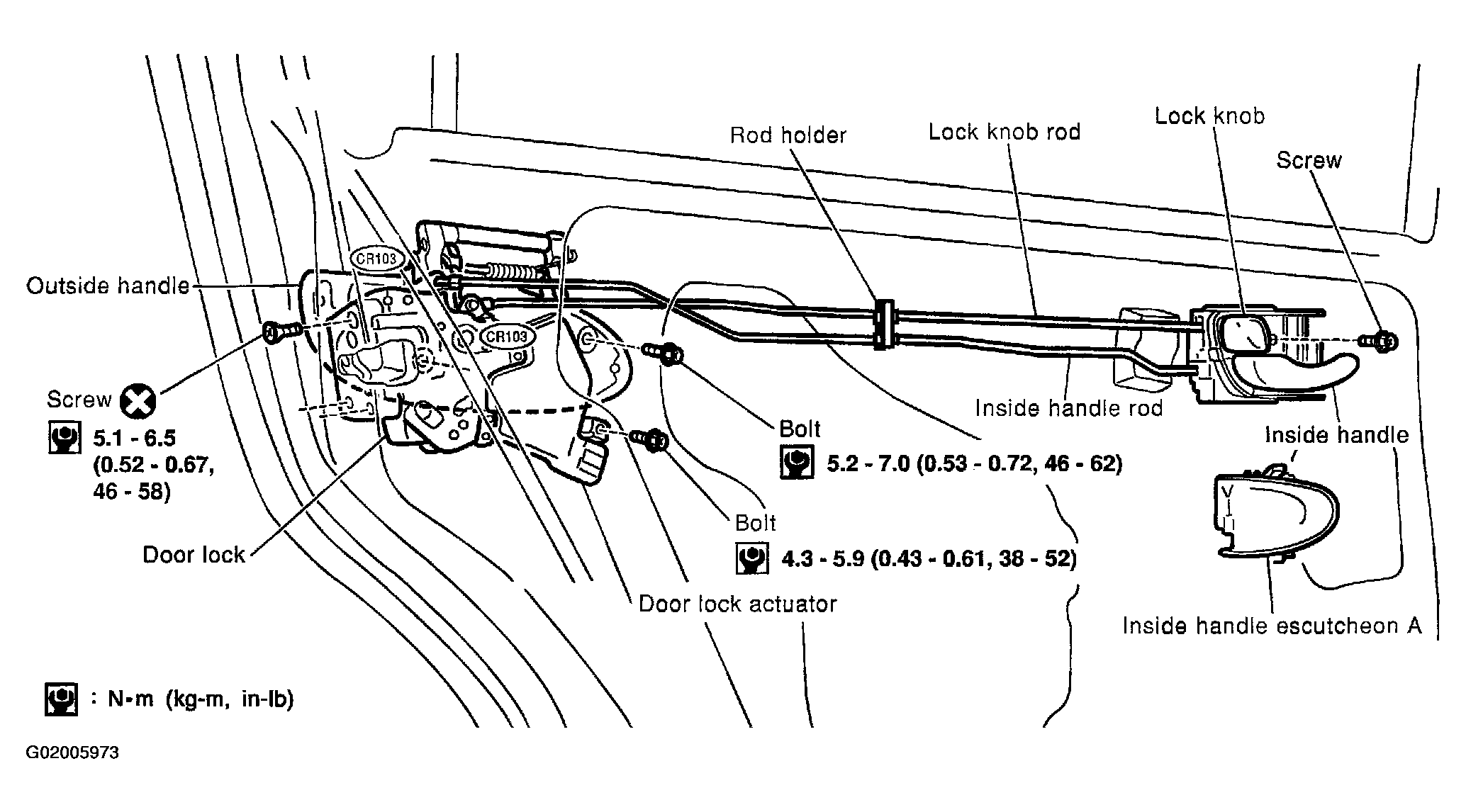

Fig 1: Removing Rear Door Lock System (1 Of 4)

G02005973

Courtesy of NISSAN MOTOR CO., U.S.A.

For removal of rear door trim, refer to "DOOR TRIM ".
Remove sealing screen.
