Outside Handle Rod Adjustment

Rotate rod holder so that rod-to-holder clearance is adjusted as shown in the figure at left.

CAUTION: Make sure that rod-to-holder clearance is not "0" mm (0 in), and that rod is not held pressed.

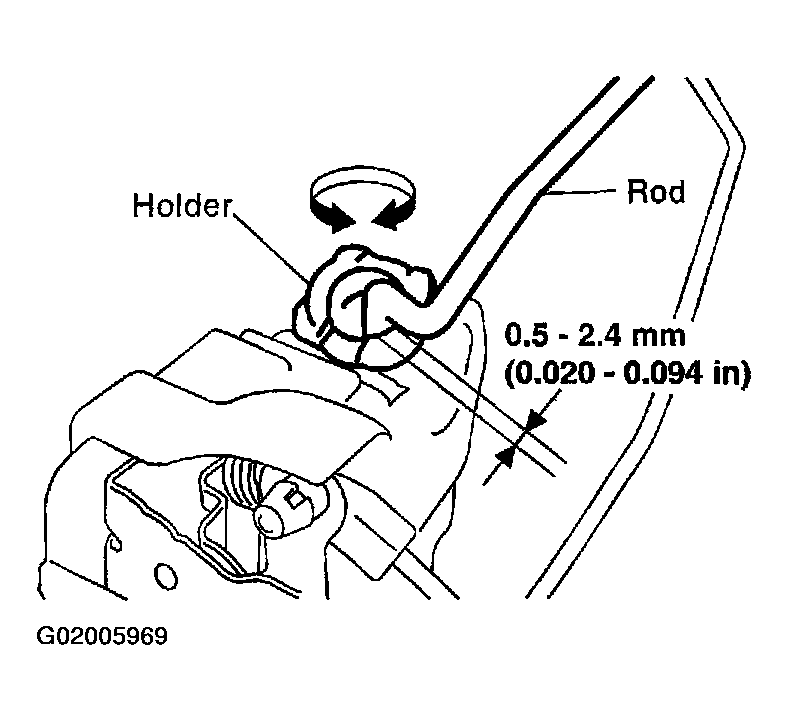

Fig 1: Adjusting Outside Handle Rod

Courtesy of NISSAN MOTOR CO., U.S.A.
