Reset Procedures

After installing parts, proceed as follows:

  1. Close the door window completely.
  2. Press the reset switch and open the door window completely.
  3. Release the reset switch. After making sure the reset switch has returned to the original position, close the door window completely.
  4. The limit switch is now reset.
CAUTION: Be sure to manually open or close the door window. (Do not use the automatic open-close procedures.)

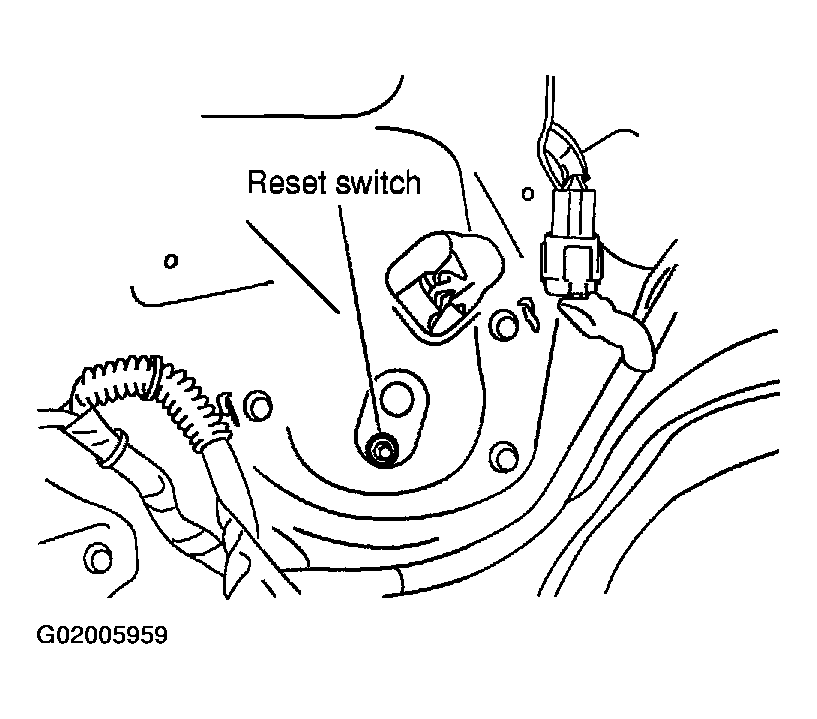

Fig 1: Removing And Installing Front Door Glass And Regulator (6 Of 6)
G02005959Courtesy of NISSAN MOTOR CO., U.S.A.
