Striker Adjustment

Adjust striker so that it is parallel with advancing direction of door lock.

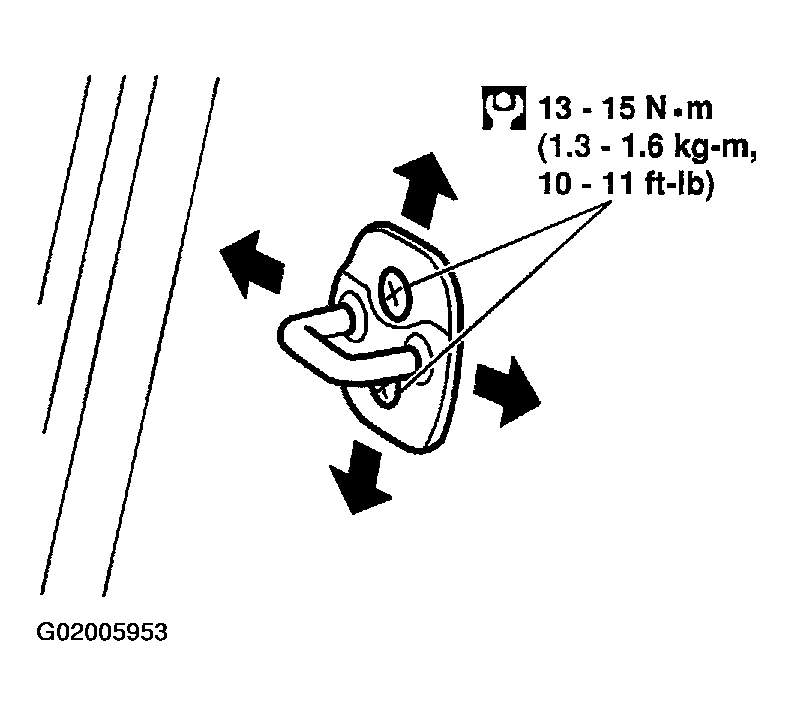

Fig 1: Adjusting Door System (2 Of 2)

G02005953

Courtesy of NISSAN MOTOR CO., U.S.A.
