Removal and Installation

CAUTION: Be careful not to scratch door rearview mirror body.

* For Wiring Diagram, refer to " DOOR MIRROR article.

Remove door trim. Refer to "DOOR TRIM ".
Remove inner cover front corner of door.
Disconnect door mirror harness connector.
Remove door mirror harness clips.
Remove bolts securing door mirror assembly.
Remove the mirror glass. Do not insert screwdriver too far.

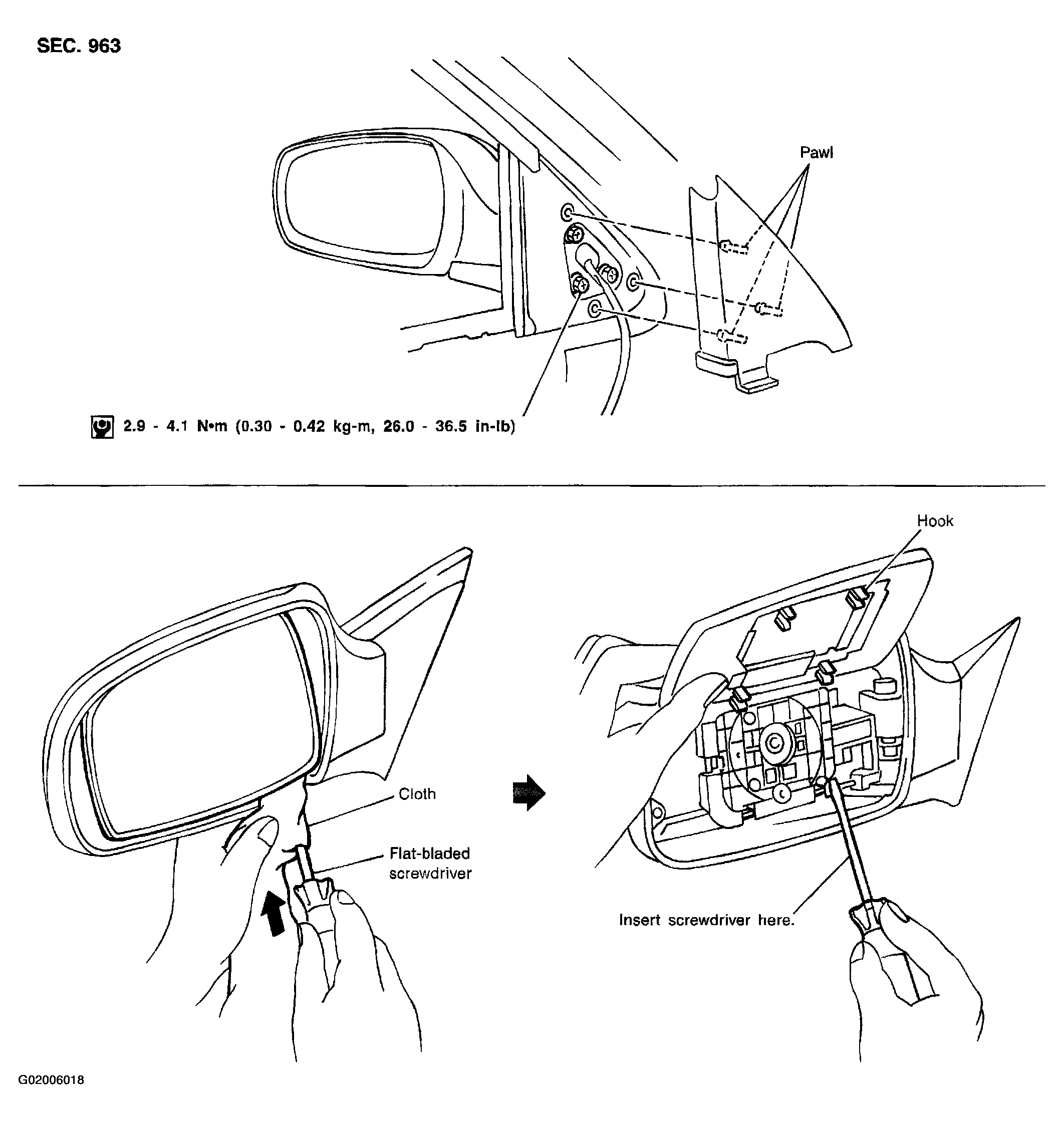

Fig 1: Removing And Installing Door Mirror System
Courtesy of NISSAN MOTOR CO., U.S.A.
